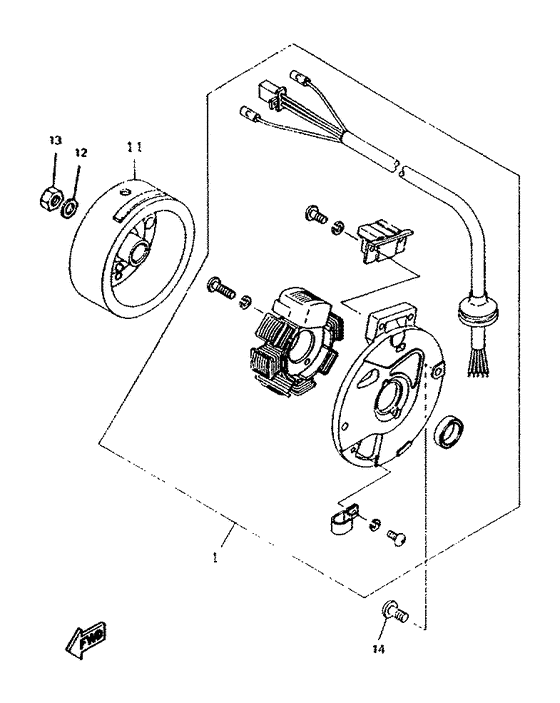

Generator Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1996
- Model code
- 4VB1
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4SB-85560-00-00
Base Assy
|
4SB-85560-00-00 |
— | ||
|
11
|
11
2JA-85550-00-00 Rotor Assy |
2JA-85550-00-00 |
US $97.53 |
||
| replacement | |||||
|
11
|
11
2JA-85550-02-00 Rotor Assy |
2JA-85550-02-00 |
US $80.08 |
||
|
12
|
12
92907-10600-00 Washer, Plate |
92907-10600-00 |
from US $1.18 |
||
|
13
|
13
901-70102-19-00
Nut
|
901-70102-19-00 |
— | ||
| replacement | |||||
|
13
|
13
90170-10011-00 Nut |
90170-10011-00 |
from US $1.52 |
||
|
14
|
14
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
