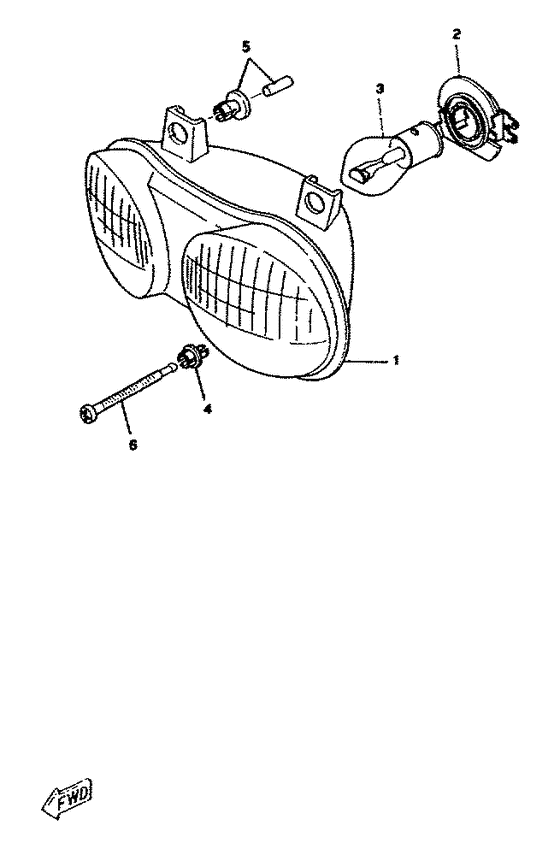

Headlight Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1996
- Model code
- 4VB1
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4SB-H4300-00-00
Headlight Assy
|
4SB-H4300-00-00 |
— | ||
|
02
|
02
4SB-H4146-00-00
Socket, Pilot Light
|
4SB-H4146-00-00 |
— | ||
|
03
|
03
4SB-H4314-00-00 Bulb, Headlight |
4SB-H4314-00-00 |
US $16.43 |
||
|
04
|
04
4SB-H4387-00-00
Holder
|
4SB-H4387-00-00 |
— | ||
|
05
|
05
3VL-H4316-00-00
Nut, Body Fitting
|
3VL-H4316-00-00 |
— | ||
|
06
|
06
4SB-H4337-00-00
Bolt, Special
|
4SB-H4337-00-00 |
— |
