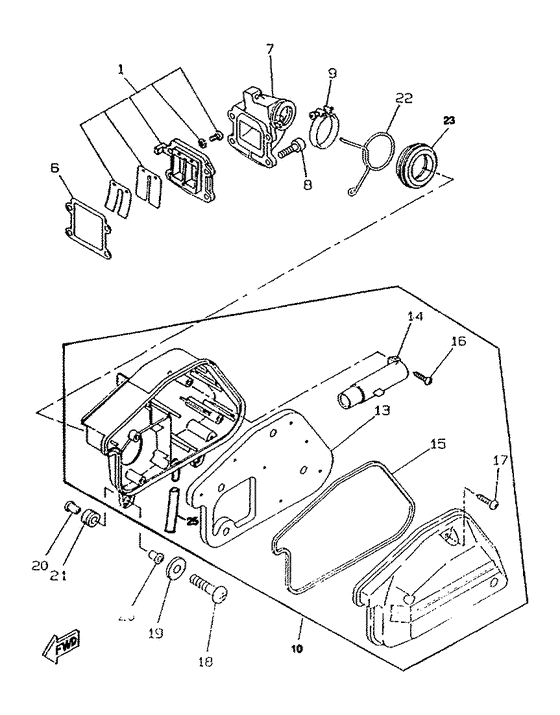

Intake Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1996
- Model code
- 4VB1
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2EX-13610-00-00 Reed Valve Assy |
2EX-13610-00-00 |
from US $49.32 |
||
|
06
|
06
4KN-13621-00-00
Gasket, Valve Seat
|
4KN-13621-00-00 |
— | ||
| replacement | |||||
|
06
|
06
3WX-13621-00-00 Gasket, Valve Seat |
3WX-13621-00-00 |
from US $8.08 |
||
|
07
|
07
3VL-E3555-00-00
Manifold, Intake
|
3VL-E3555-00-00 |
— | ||
| replacement | |||||
|
07
|
07
3VL-E3555-20-00 Manifold, Intake |
3VL-E3555-20-00 |
from US $49.34 |
||
|
08
|
08
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
09
|
09
90450-32081-00 Hose Clamp Assy |
90450-32081-00 |
from US $7.36 |
||
|
10
|
10
4GP-E4410-00-00
Air Cleaner Assy
|
4GP-E4410-00-00 |
— | ||
| replacements | |||||
|
10
|
10
3VL-E4410-03-00
Air Filter Assy
|
3VL-E4410-03-00 |
— | ||
|
10
|
10
4GP-E4410-03-00 Air Cleaner Assy |
4GP-E4410-03-00 |
US $88.92 |
||
|
13
|
13
3VL-E4451-00-00
Element, Air Clean
|
3VL-E4451-00-00 |
— | ||
| replacement | |||||
|
13
|
13
3VL-E4451-01-00 Element, Air Cleaner |
3VL-E4451-01-00 |
from US $12.89 |
||
|
14
|
14
3VL-E4437-00-00 Duct |
3VL-E4437-00-00 |
from US $10.77 |
||
|
15
|
15
3VL-E4452-00-00 Seal |
3VL-E4452-00-00 |
from US $12.89 |
||
|
16
|
16
3VL-E4429-00-00
Screw, Tapping
|
3VL-E4429-00-00 |
— | ||
| replacement | |||||
|
16
|
16
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
|
17
|
17
3VL-E4565-00-00 Screw, Tapping |
3VL-E4565-00-00 |
from US $3.12 |
||
| replacement | |||||
|
17
|
17
97707-50525-00 Screw, Tapping |
97707-50525-00 |
from US $1.36 |
||
|
18
|
18
985-07060-25-00
Screw, Pan Head
|
985-07060-25-00 |
— | ||
| replacement | |||||
|
18
|
18
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
19
|
19
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
20
|
20
90387-061V4-00 Collar, Main Stand |
90387-061V4-00 |
from US $3.83 |
||
| replacement | |||||
|
20
|
20
5TA-27113-00-00 Collar, Main Stand |
5TA-27113-00-00 |
from US $4.82 |
||
|
21
|
21
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.39 |
||
|
22
|
22
90467-24140-00 Clip(3Vr) |
90467-24140-00 |
from US $3.33 |
||
|
23
|
23
3VL-E4453-00-00
Joint, Air Cleaner 1
|
3VL-E4453-00-00 |
— | ||
| replacement | |||||
|
23
|
23
3VL-E4453-02-00
Joint, Air Cleaner 1
|
3VL-E4453-02-00 |
— | ||
|
25
|
25
5T8-F1745-01-00 Pipe, Oil Tank Breather |
5T8-F1745-01-00 |
US $7.42 |
||
