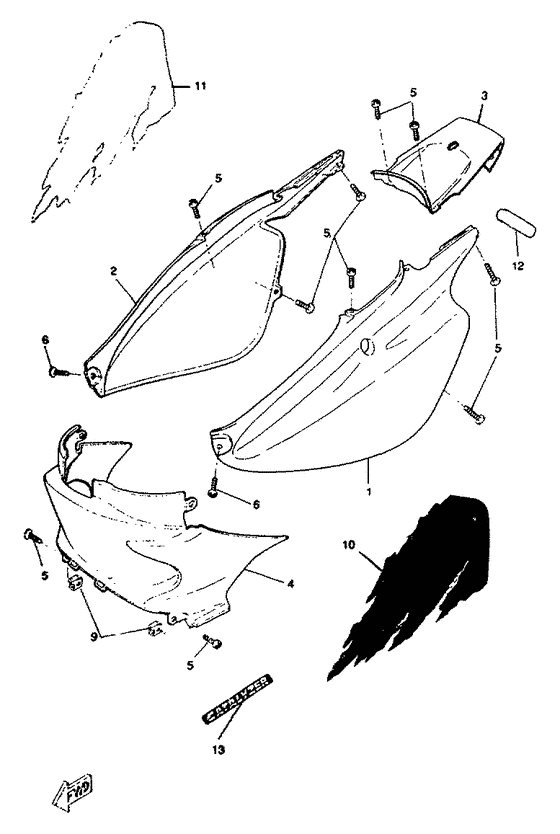

Side cover Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1996
- Model code
- 4VB1
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4SB-F1721-00-4B
Cover, Side 2
(black 2) |
4SB-F1721-00-4B |
— | ||
|
01
|
01
4SB-F1721-00-P1
Cover, Side 2
(vivid red solid a) |
4SB-F1721-00-P1 |
— | ||
|
01
|
01
4SB-F1721-00-P3
Cover, Side 2
(dark cyan metallic 3) |
4SB-F1721-00-P3 |
— | ||
|
02
|
02
4SB-F1731-00-4B
Cover, Side 3
(black 2) |
4SB-F1731-00-4B |
— | ||
|
02
|
02
4SB-F1731-00-P1
Cover, Side 3
(vivid red solid a) |
4SB-F1731-00-P1 |
— | ||
|
02
|
02
4SB-F1731-00-P3
Cover, Side 3
(dark cyan metallic 3) |
4SB-F1731-00-P3 |
— | ||
|
03
|
03
4VA-F171E-00-4B
Cover, Side 5
(black 2) |
4VA-F171E-00-4B |
— | ||
|
03
|
03
4VA-F171E-00-P1
Cover, Side 5
(vivid red solid a) |
4VA-F171E-00-P1 |
— | ||
|
03
|
03
4VA-F171E-00-P3
Cover, Side 5
(dark cyan metallic 3) |
4VA-F171E-00-P3 |
— | ||
|
04
|
04
4SB-F1711-00-00
Cover, Side 1
(black) |
4SB-F1711-00-00 |
— | ||
|
05
|
05
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
05
|
05
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
06
|
06
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
09
|
09
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
10
|
10
4SB-F173X-10-00
Graphic 7
(ur vrsa) |
4SB-F173X-10-00 |
— | ||
|
10
|
10
4SB-F173X-00-00
Graphic 7
(ur bl2/dcm3) |
4SB-F173X-00-00 |
— | ||
|
11
|
11
4SB-F173Y-00-00
Graphic 8
(ur bl2/dcm3) |
4SB-F173Y-00-00 |
— | ||
|
11
|
11
4SB-F173Y-10-00
Graphic 8
(ur vrsa) |
4SB-F173Y-10-00 |
— | ||
|
12
|
12
4UP-F152A-00-00 Emblem 2 |
4UP-F152A-00-00 |
US $30.31 |
||
|
13
|
13
4RC-F1737-00-00
Emblem
|
4RC-F1737-00-00 |
— | ||
