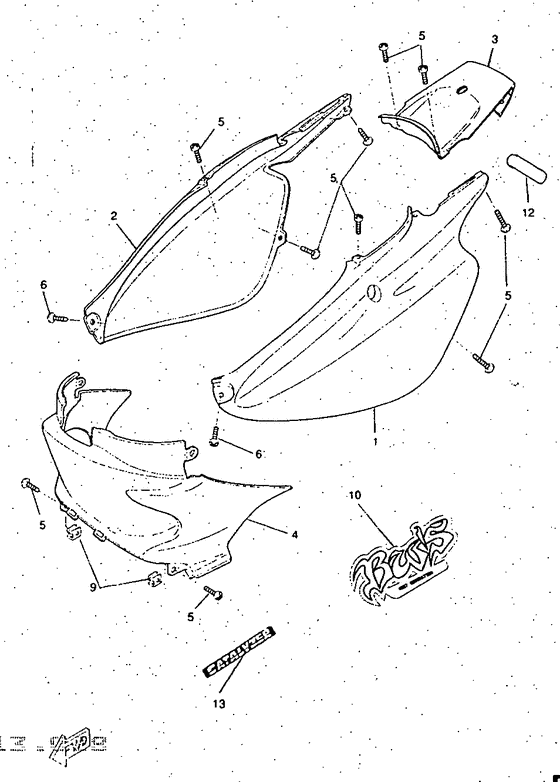

Side cover Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1997
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4VB3
- Sales region
- Switzerland (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4SB-F1721-00-4B
Cover, Side 2
Ur black 2 |
4SB-F1721-00-4B |
— | ||
|
01
|
01
4SB-F1721-00-P7
Cover, Side 2
Ur dull blue metallic 4 |
4SB-F1721-00-P7 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur dull blue metallic 4 |
999-99999-99-00 |
— | ||
|
01
|
01
4SB-F1721-00-P8
Cover, Side 2
Ur yellowish gray metallic |
4SB-F1721-00-P8 |
— | ||
|
02
|
02
4SB-F1731-00-4B
Cover, Side 3
Ur black 2 |
4SB-F1731-00-4B |
— | ||
|
02
|
02
4SB-F1731-00-P7
Cover, Side 3
Ur dull blue metallic 4 |
4SB-F1731-00-P7 |
— | ||
|
02
|
02
4SB-F1731-00-P8
Cover, Side 3
Ur yellowish gray metallic |
4SB-F1731-00-P8 |
— | ||
|
03
|
03
4VA-F171E-00-4B
Cover, Side 5
Ur black 2 |
4VA-F171E-00-4B |
— | ||
|
03
|
03
4VA-F171E-00-P4
Cover, Side 5
Ur yellowish gray metallic |
4VA-F171E-00-P4 |
— | ||
|
03
|
03
4VA-F171E-00-P5
Cover, Side 5
Ur dull blue metallic 4 |
4VA-F171E-00-P5 |
— | ||
|
04
|
04
4SB-F1711-00-00
Cover, Side 1
Ur black |
4SB-F1711-00-00 |
— | ||
|
05
|
05
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
05
|
05
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
06
|
06
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
09
|
09
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
10
|
10
4SB-F174J-10-00
Graphic 5
Ur ynm4/dbm4 |
4SB-F174J-10-00 |
— | ||
|
10
|
10
4SB-F174J-00-00
Graphic 5
Ur bl2 |
4SB-F174J-00-00 |
— | ||
|
12
|
12
4UP-F152A-00-00 Emblem 2Ur bl2 |
4UP-F152A-00-00 |
US $30.31 |
||
|
12
|
12
4UP-F152A-30-00
Emblem 3
Ur ynm4/dbm4 |
4UP-F152A-30-00 |
— | ||
|
13
|
13
4RC-F1737-00-00
Emblem
|
4RC-F1737-00-00 |
— | ||
