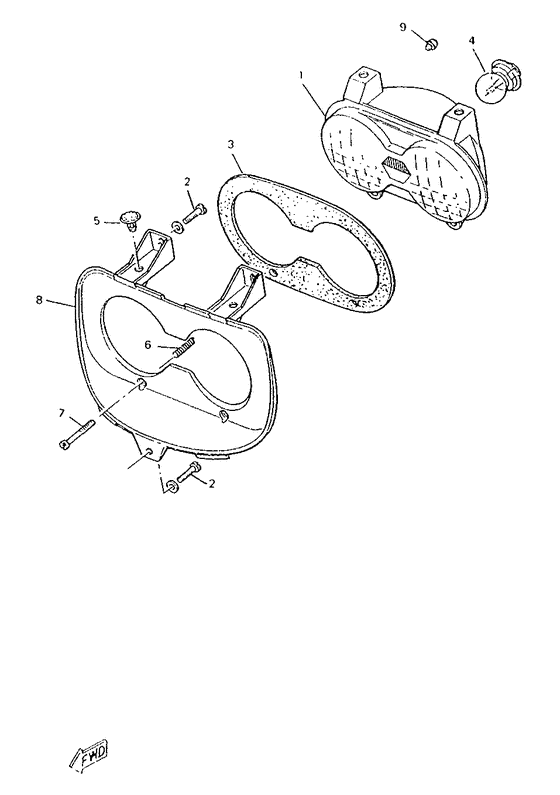

Headlight Diagram Yamaha CW50 BW'S
- Year
- 1996
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4VV5
- Sales region
- Belgium (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VL-H4320-00-00
Lens Assy
|
3VL-H4320-00-00 |
— | ||
|
02
|
02
90159-05089-00 Screw, With Washer |
90159-05089-00 |
from US $3.54 |
||
|
03
|
03
3VL-H4144-00-00
Cover, Headlight
|
3VL-H4144-00-00 |
— | ||
|
04
|
04
3FC-H4314-10-00
Bulb, Headlight
|
3FC-H4314-10-00 |
— | ||
|
05
|
05
3VL-H4316-00-00
Nut, Body Fitting
|
3VL-H4316-00-00 |
— | ||
|
06
|
06
3VL-H4332-10-00
Spring, Screw
|
3VL-H4332-10-00 |
— | ||
|
07
|
07
3VL-H4331-10-00
Screw, Rim Adjusting
|
3VL-H4331-10-00 |
— | ||
|
08
|
08
3VL-H4196-01-00
Cover, Socket
|
3VL-H4196-01-00 |
— | ||
|
09
|
09
3VL-H4352-00-00
Grommet
|
3VL-H4352-00-00 |
— |
