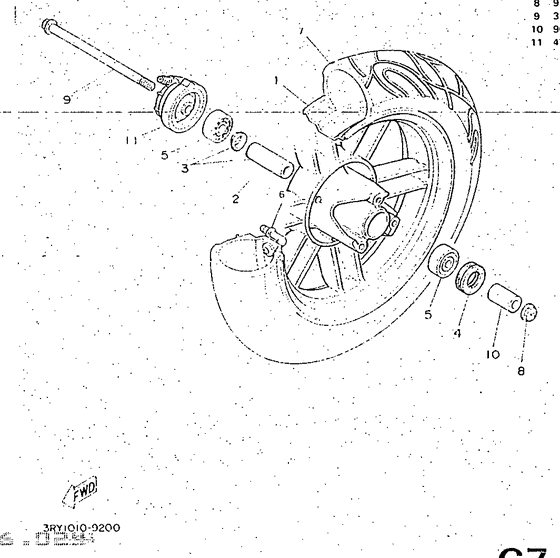

Front wheel Diagram Yamaha CW50 BW'S
- Year
- 1997
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4VV7
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4PA-F5168-20-00
Cast Wheel, Front
Ur black |
4PA-F5168-20-00 |
— | ||
|
02
|
02
4PA-F5117-00-00 Spacer, Bearing |
4PA-F5117-00-00 |
US $12.96 |
||
|
03
|
03
4KH-W5115-17-00 Flange, Spacer 1 |
4KH-W5115-17-00 |
US $14.29 |
||
|
04
|
04
93106-20001-00 Oil Seal |
93106-20001-00 |
US $6.24 |
||
|
05
|
05
93306-300Y8-00 Bearing |
93306-300Y8-00 |
from US $25.64 |
||
|
06
|
06
3VL-F5170-10-00 Air Valve Assy |
3VL-F5170-10-00 |
from US $21.56 |
||
|
07
|
07
94112-101W1-00
Tire
Cheng c.120/90-10 |
94112-101W1-00 |
— | ||
| replacement | |||||
|
07
|
07
9079Q-04684-00
Tire (120-90-10 54J)
Cheng c.120/90-10 |
9079Q-04684-00 |
— | ||
|
08
|
08
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
08
|
08
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
09
|
09
3AA-25181-00-01
Axle, Wheel
|
3AA-25181-00-01 |
— | ||
| replacement | |||||
|
09
|
09
3AA-25181-00-00 Axle, Wheel |
3AA-25181-00-00 |
from US $9.63 |
||
|
10
|
10
90387-10079-00 Collar |
90387-10079-00 |
US $15.93 |
||
|
11
|
11
4VV-F5190-00-00 Gear Unit Assy |
4VV-F5190-00-00 |
US $85.05 |
||
| replacements | |||||
|
11
|
11
4VV-F5190-01-00 Gear Unit Assy |
4VV-F5190-01-00 |
US $85.05 |
||
|
11
|
11
5DA-F5190-10-00 Gear Unit Assy |
5DA-F5190-10-00 |
from US $32.93 |
||
