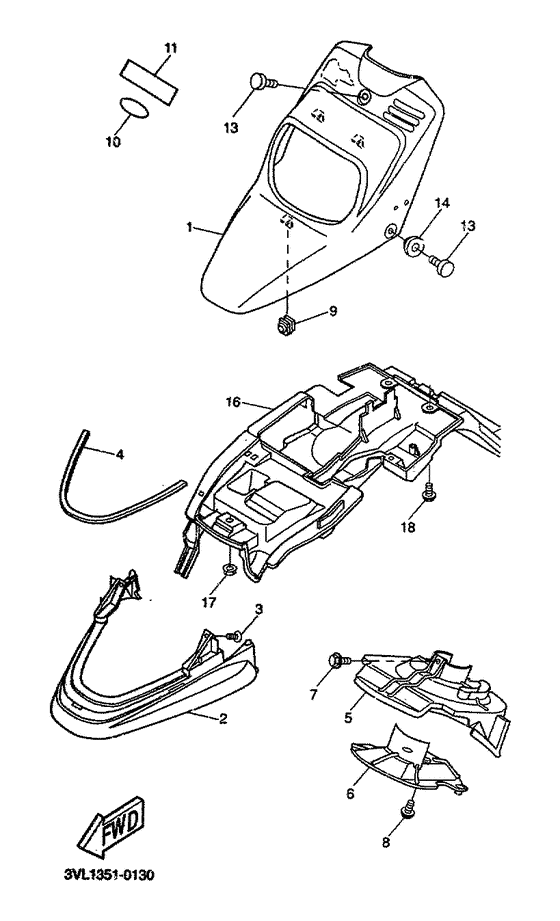

Fender Diagram Yamaha CW50 BW'S
- Year
- 1999
- Model code
- 4VVP
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VL-F1511-00-GE
Fender, Front Sw
(ur sw) |
3VL-F1511-00-GE |
— | ||
|
01
|
01
3VL-F1511-00-PM
Fender, Front
(ur vrc4) |
3VL-F1511-00-PM |
— | ||
|
01
|
01
3VL-F1511-00-PW
Fender, front
(ur pbc3) |
3VL-F1511-00-PW |
— | ||
|
01
|
01
3VL-F1511-10-00
Fender, Front
(ur yb) |
3VL-F1511-10-00 |
— | ||
| replacement | |||||
|
01
|
01
3VL-F1511-09-00
Fender, Front Yb
(ur yb) |
3VL-F1511-09-00 |
— | ||
|
02
|
02
3VL-F1551-10-00
Over, Fender
|
3VL-F1551-10-00 |
— | ||
|
03
|
03
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
04
|
04
3VL-F7482-10-00 Mold, Footrest |
3VL-F7482-10-00 |
US $13.01 |
||
|
05
|
05
3VL-F1552-01-00 Fender, Inner |
3VL-F1552-01-00 |
US $34.04 |
||
|
06
|
06
4PA-F1553-00-00 Fender, Inner 2 |
4PA-F1553-00-00 |
US $29.38 |
||
| replacement | |||||
|
06
|
06
4PA-F1553-01-00
Fender Inner 2
|
4PA-F1553-01-00 |
— | ||
|
07
|
07
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
08
|
08
90119-06123-00 Bolt, With Washer(1Jk) |
90119-06123-00 |
from US $2.41 |
||
| replacement | |||||
|
08
|
08
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
09
|
09
35R-26294-00-00 Nut 1 |
35R-26294-00-00 |
from US $6.31 |
||
|
10
|
10
5EU-F8328-00-00
Emblem
|
5EU-F8328-00-00 |
— | ||
|
11
|
11
4VU-F1565-00-00
Emblem, 2
|
4VU-F1565-00-00 |
— | ||
|
13
|
13
90154-06808-00 Screw, Binding |
90154-06808-00 |
US $5.29 |
||
| replacement | |||||
|
13
|
13
90154-06061-00 Screw, Binding |
90154-06061-00 |
from US $3.60 |
||
|
14
|
14
3VL-F1545-00-00 Plate 3 |
3VL-F1545-00-00 |
US $3.78 |
||
|
16
|
16
3VL-F1629-01-00 Guard,mud (Noir) |
3VL-F1629-01-00 |
US $149.83 |
||
|
17
|
17
90179-06X00-00 Nut |
90179-06X00-00 |
from US $9.92 |
||
|
18
|
18
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
