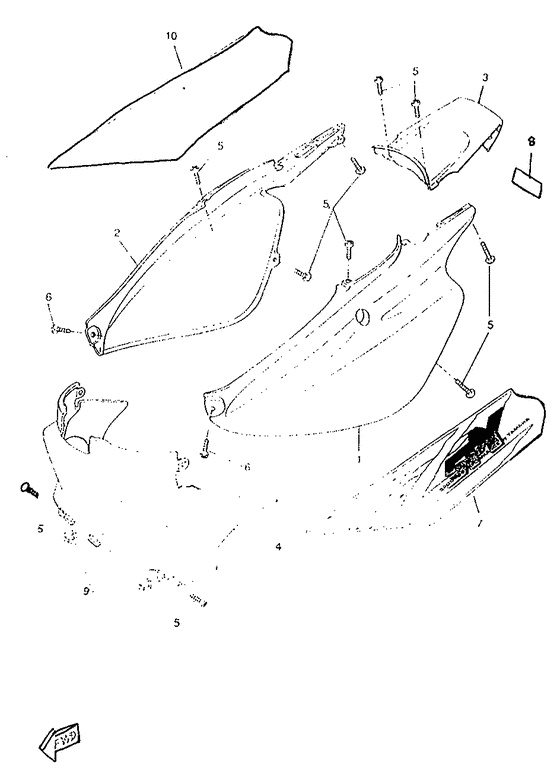

Side cover Diagram Yamaha CW50 BOOSTER
- Year
- 1996
- Colour
- Candy Blue (CB; 0029)
- Model code
- 4WT1
- Sales region
- Netherlands (999)
- Engine Capacity
- 50
- Model
- CW50RSP
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4SB-F1721-00-29
Cover, Side 2
Ur candy blue |
4SB-F1721-00-29 |
— | ||
|
01
|
01
4SB-F1721-00-GE
Cover, Side 2
Ur silky white |
4SB-F1721-00-GE |
— | ||
|
02
|
02
4SB-F1731-00-29
Cover, Side 3
Ur candy blue |
4SB-F1731-00-29 |
— | ||
|
02
|
02
4SB-F1731-00-GE
Cover, Side 3
Ur silky white |
4SB-F1731-00-GE |
— | ||
|
03
|
03
4SB-F171E-00-29
Cover, Side 5
Ur candy blue |
4SB-F171E-00-29 |
— | ||
|
03
|
03
4SB-F171E-00-GE
Cover, Side 5
Ur silky white |
4SB-F171E-00-GE |
— | ||
|
04
|
04
4SB-F1711-00-00
Cover, Side 1
Ur black |
4SB-F1711-00-00 |
— | ||
|
05
|
05
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
05
|
05
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
06
|
06
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
07
|
07
4UP-F174G-00-00
Graphic 3
Ur cb |
4UP-F174G-00-00 |
— | ||
|
07
|
07
4UP-F174H-00-00
Graphic 4
Ur sw |
4UP-F174H-00-00 |
— | ||
|
08
|
08
4UP-F152A-00-00 Emblem 2Ur cb |
4UP-F152A-00-00 |
US $30.31 |
||
|
08
|
08
4UP-F152A-10-00
Emblem 3
Ur sw |
4UP-F152A-10-00 |
— | ||
|
09
|
09
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
10
|
10
4UP-F174J-00-00
Graphic 5
Ur cb |
4UP-F174J-00-00 |
— | ||
|
10
|
10
4UP-F174K-00-00
Graphic 6
Ur sw |
4UP-F174K-00-00 |
— | ||
