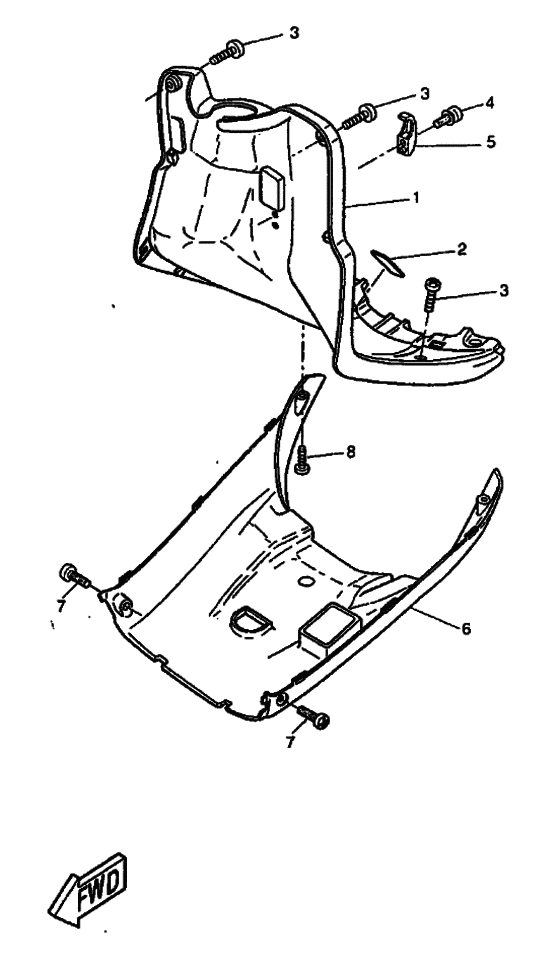

Leg shield Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1998
- Colour
- Deep Orange Candy 1 (DOC1; 0512)
- Model code
- 4YA4
- Sales region
- Europe (999)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- CW50RS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4SB-F8312-01-00
Leg Shield 2
UR^YB |
4SB-F8312-01-00 |
— | ||
|
2
|
2
3WV-F8349-10-00 CapUR^YB |
3WV-F8349-10-00 |
from US $8.08 |
||
|
3
|
3
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
3
|
3
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
4
|
4
90154-06X02-00 Screw, Binding |
90154-06X02-00 |
US $11.19 |
||
|
5
|
5
4SB-F1398-00-00 Hanger, HelmetUR^YB |
4SB-F1398-00-00 |
US $9.49 |
||
|
6
|
6
4SB-F8385-00-00
Cover, Lower
UR^BL2/DOC1 |
4SB-F8385-00-00 |
— | ||
|
6
|
6
4SB-F8385-70-00
Cover, Lower
UR^YNM4 |
4SB-F8385-70-00 |
— | ||
|
7
|
7
4SB-F8382-00-00
Screw, Special
|
4SB-F8382-00-00 |
— | ||
|
8
|
8
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
8
|
8
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
