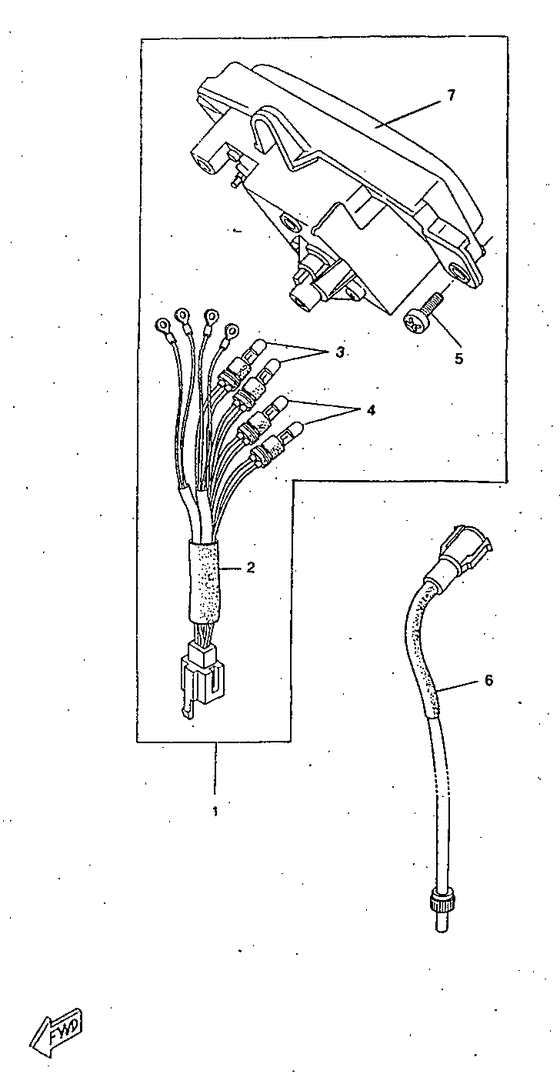

Meter Diagram Yamaha CW50 BW'S BUMP
- Year
- 1998
- Colour
- Ink Blue (IKB; 00EX)
- Model code
- 5AA3
- Sales region
- Portugal (999)
- Engine Capacity
- 50
- Model
- CW50RSX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4YB-H3510-10-00
Speedometer Assy
|
4YB-H3510-10-00 |
— | ||
|
02
|
02
4SB-H3509-00-00
Socket Cord Assy
|
4SB-H3509-00-00 |
— | ||
|
03
|
03
4SB-H4347-00-00 BulbBulb (12v-2w) |
4SB-H4347-00-00 |
US $6.66 |
||
|
04
|
04
NJ9-H4744-00-01
Bulb (12V-1.2W)
|
NJ9-H4744-00-01 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
977-07500-20-00
Screw, Tapping
|
977-07500-20-00 |
— | ||
| replacement | |||||
|
05
|
05
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
06
|
06
4YB-H3550-00-00
Speedometer Cable Assy
|
4YB-H3550-00-00 |
— | ||
|
07
|
07
4SB-H353K-00-00
Glass Plate
|
4SB-H353K-00-00 |
— | ||
