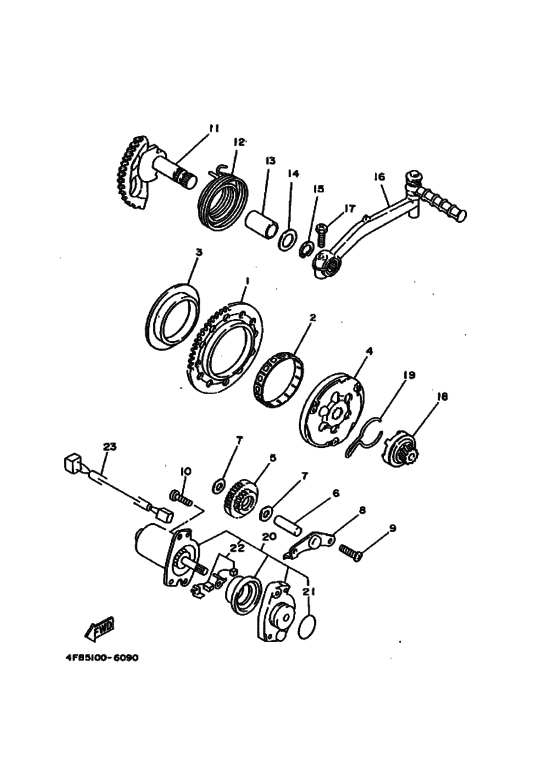

Starter Diagram Yamaha CY50 Jog
- Year
- 1999
- Colour
- Silky White (SW; 00GE)
- Model code
- 3SAA
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- CY50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4JP-15513-00-00 Gear 1 (68T) |
4JP-15513-00-00 |
from US $41.86 |
||
|
2
|
2
93310-257R1-00 Bearing |
93310-257R1-00 |
from US $28.48 |
||
| replacement | |||||
|
2
|
2
93310-25712-00 Bearing |
93310-25712-00 |
from US $28.48 |
||
|
3
|
3
3KJ-15528-00-00 Boss, Gear |
3KJ-15528-00-00 |
from US $14.17 |
||
|
4
|
4
3KJ-15570-01-00 Starter Clutch Assy |
3KJ-15570-01-00 |
from US $70.32 |
||
| replacement | |||||
|
4
|
4
3VL-15570-00-00 Starter Clutch Assy |
3VL-15570-00-00 |
from US $73.48 |
||
|
5
|
5
4JP-15650-00-00
Idle Gear Assy (65T/20T)
|
4JP-15650-00-00 |
— | ||
|
6
|
6
50M-13342-00-00 Shaft |
50M-13342-00-00 |
from US $5.58 |
||
| replacement | |||||
|
6
|
6
3KJ-15659-00-00 Shaft |
3KJ-15659-00-00 |
from US $5.58 |
||
|
7
|
7
90201-08088-00 Washer, Plate 2562171800 |
90201-08088-00 |
from US $1.71 |
||
|
8
|
8
3KJ-15532-00-00 Plate, Idle Gear |
3KJ-15532-00-00 |
from US $4.23 |
||
|
9
|
9
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
9
|
9
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
10
|
10
91318-06020-00 Bolt |
91318-06020-00 |
from US $1.32 |
||
| replacement | |||||
|
10
|
10
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
11
|
11
3KJ-15601-00-00 Kick Shaft Assembly |
3KJ-15601-00-00 |
from US $67.59 |
||
|
12
|
12
905-08326-09-00 Spring, Torsion (32N) |
905-08326-09-00 |
from US $8.08 |
||
|
13
|
13
90380-15240-00 Bush, Solid |
90380-15240-00 |
from US $1.53 |
||
| replacement | |||||
|
13
|
13
90380-15817-00 Bush, Solid |
90380-15817-00 |
from US $4.25 |
||
|
14
|
14
90201-155G5-00 Washer, Plate |
90201-155G5-00 |
from US $2.55 |
||
| replacement | |||||
|
14
|
14
90201-154E9-00 Washer, Plate (5G3) |
90201-154E9-00 |
from US $2.77 |
||
|
15
|
15
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.18 |
||
|
16
|
16
3KJ-15620-02-00 Kick Crank Assy |
3KJ-15620-02-00 |
from US $85.66 |
||
|
17
|
17
90153-06008-00 Screw, Hexagon |
90153-06008-00 |
from US $1.70 |
||
|
18
|
18
3AA-15631-00-00 Gear, Kick Pinion (10T)10T |
3AA-15631-00-00 |
from US $44.89 |
||
| replacement | |||||
|
18
|
18
1NT-15630-01-00 Kick Pinion Assy10T |
1NT-15630-01-00 |
from US $71.57 |
||
|
19
|
19
32N-15673-00-00 Clip |
32N-15673-00-00 |
from US $7.93 |
||
|
20
|
20
3KJ-81800-02-00 Starting Motor Assy |
3KJ-81800-02-00 |
from US $178.52 |
||
| replacement | |||||
|
20
|
20
5BM-81800-01-00 Starting Motor Assy |
5BM-81800-01-00 |
from US $285.57 |
||
|
21
|
21
93210-23614-00 O-Ring |
93210-23614-00 |
from US $1.66 |
||
|
22
|
22
1YU-81801-M0-00 Brush Set |
1YU-81801-M0-00 |
from US $28.48 |
||
|
23
|
23
3KJ-82541-00-00 Wire, Lead |
3KJ-82541-00-00 |
from US $11.77 |
||
