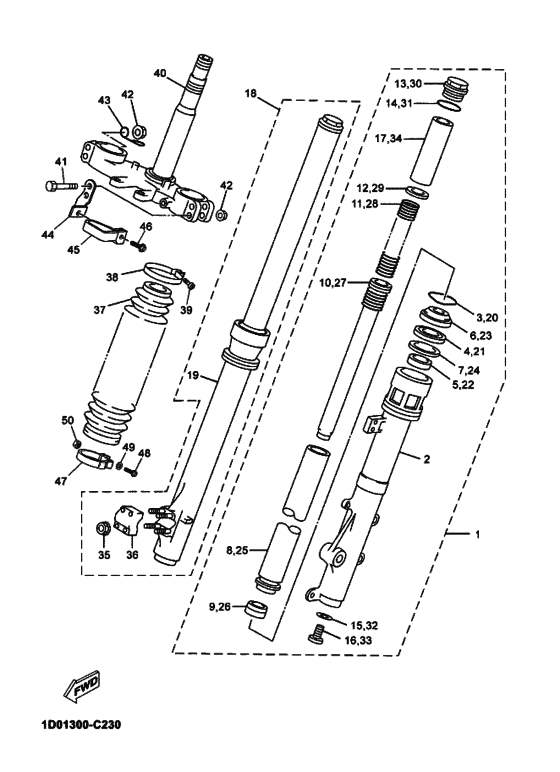

Front fork Diagram Yamaha DT125 DT125R
- Year
- 2004
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 1D01
- Sales region
- Europe (040)
- Engine Capacity
- 125
- Color Variant
- B
- Model
- DT125R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1D0-23102-00-00
Front Fork Assy (L.h)
|
1D0-23102-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
3FW-23126-71-00 Tube, Outer (Left) |
3FW-23126-71-00 |
US $278.24 |
||
| replacement | |||||
|
2
|
2
1D0-23126-10-00 Tube, Outer (Left) |
1D0-23126-10-00 |
US $250.99 |
||
|
3
|
3
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
4
|
4
3BN-23145-00-00 Oil Seal |
3BN-23145-00-00 |
US $28.05 |
||
| replacement | |||||
|
4
|
4
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $30.96 |
||
|
5
|
5
3LC-23125-00-00 Metal, Slide 1 |
3LC-23125-00-00 |
from US $21.11 |
||
| replacement | |||||
|
5
|
5
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $23.31 |
||
|
6
|
6
43F-23144-10-00 Seal, Dust |
43F-23144-10-00 |
from US $19.56 |
||
|
7
|
7
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
8
|
8
3BN-23110-00-00 Inner Tube Comp.1 |
3BN-23110-00-00 |
US $381.92 |
||
|
9
|
9
4V4-23173-L0-00 Spindle, Taper |
4V4-23173-L0-00 |
from US $30.37 |
||
|
10
|
10
3BN-23170-00-00 Cylinder Comp., Front Fork |
3BN-23170-00-00 |
US $94.23 |
||
|
11
|
11
3BN-23141-01-00 Spring, Front Fork |
3BN-23141-01-00 |
US $84.83 |
||
|
12
|
12
4DW-23149-40-00 Washer, Spring Upper |
4DW-23149-40-00 |
from US $2.69 |
||
|
13
|
13
1D0-23111-00-00 Bolt, Cap |
1D0-23111-00-00 |
from US $29.75 |
||
|
14
|
14
43F-23188-10-00 O-Ring |
43F-23188-10-00 |
from US $3.89 |
||
|
15
|
15
4V4-23158-L0-00 Gasket |
4V4-23158-L0-00 |
from US $7.65 |
||
|
16
|
16
4V4-23181-L0-00 Bolt, Hexagon Socket Head |
4V4-23181-L0-00 |
from US $13.74 |
||
|
17
|
17
3BN-23118-01-00 Spacer |
3BN-23118-01-00 |
US $10.87 |
||
|
18
|
18
1D0-23103-00-00
Front Fork Assy (R.h)
|
1D0-23103-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
3FW-23136-71-00 Tube, Outer (Right) |
3FW-23136-71-00 |
US $278.24 |
||
| replacement | |||||
|
19
|
19
1D0-23136-10-00 Tube, Outer (Right) |
1D0-23136-10-00 |
US $250.99 |
||
|
20
|
20
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
21
|
21
3BN-23145-00-00 Oil Seal |
3BN-23145-00-00 |
US $28.05 |
||
| replacement | |||||
|
21
|
21
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $30.96 |
||
|
22
|
22
3LC-23125-00-00 Metal, Slide 1 |
3LC-23125-00-00 |
from US $21.11 |
||
| replacement | |||||
|
22
|
22
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $23.31 |
||
|
23
|
23
43F-23144-10-00 Seal, Dust |
43F-23144-10-00 |
from US $19.56 |
||
|
24
|
24
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
25
|
25
3BN-23110-00-00 Inner Tube Comp.1 |
3BN-23110-00-00 |
US $381.92 |
||
|
26
|
26
4V4-23173-L0-00 Spindle, Taper |
4V4-23173-L0-00 |
from US $30.37 |
||
|
27
|
27
3BN-23170-00-00 Cylinder Comp., Front Fork |
3BN-23170-00-00 |
US $94.23 |
||
|
28
|
28
3BN-23141-01-00 Spring, Front Fork |
3BN-23141-01-00 |
US $84.83 |
||
|
29
|
29
4DW-23149-40-00 Washer, Spring Upper |
4DW-23149-40-00 |
from US $2.69 |
||
|
30
|
30
1D0-23111-00-00 Bolt, Cap |
1D0-23111-00-00 |
from US $29.75 |
||
|
31
|
31
43F-23188-10-00 O-Ring |
43F-23188-10-00 |
from US $3.89 |
||
|
32
|
32
4V4-23158-L0-00 Gasket |
4V4-23158-L0-00 |
from US $7.65 |
||
|
33
|
33
4V4-23181-L0-00 Bolt, Hexagon Socket Head |
4V4-23181-L0-00 |
from US $13.74 |
||
|
34
|
34
3BN-23118-01-00 Spacer |
3BN-23118-01-00 |
US $10.87 |
||
|
35
|
35
5Y3-23393-00-00 Nut, Special |
5Y3-23393-00-00 |
from US $7.08 |
||
|
36
|
36
4V2-23167-L0-00
Holder, Axle
|
4V2-23167-L0-00 |
— | ||
| replacement | |||||
|
36
|
36
3XJ-23167-L0-00 Holder, Axle |
3XJ-23167-L0-00 |
from US $27.72 |
||
|
37
|
37
3TB-23191-11-00 BootBLACK |
3TB-23191-11-00 |
from US $79.15 |
||
|
38
|
38
43M-23192-L0-00 Band |
43M-23192-L0-00 |
from US $5.40 |
||
|
39
|
39
98506-04016-00 Screw, Pan Head |
98506-04016-00 |
from US $1.26 |
||
| replacement | |||||
|
39
|
39
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
40
|
40
4TP-23340-00-00 Under Bracket Comp |
4TP-23340-00-00 |
US $581.19 |
||
|
41
|
41
95821-08056-00 Bolt, Flange |
95821-08056-00 |
US $1.42 |
||
| replacement | |||||
|
41
|
41
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
42
|
42
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
42
|
42
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
42
|
42
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
43
|
43
4V5-23389-00-00 Guide, Cable |
4V5-23389-00-00 |
from US $10.63 |
||
|
44
|
44
1D0-2331E-00-00
Guide, Cable
|
1D0-2331E-00-00 |
— | ||
|
45
|
45
4DA-23389-00-00 Guide, Cable |
4DA-23389-00-00 |
from US $18.03 |
||
|
46
|
46
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
47
|
47
26A-23318-00-00 Wire, Holder 1 |
26A-23318-00-00 |
from US $23.80 |
||
|
48
|
48
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.52 |
||
|
49
|
49
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
50
|
50
95307-05600-00 Nut(N28) |
95307-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
50
|
50
95317-05600-00 Nut |
95317-05600-00 |
from US $2.13 |
||
