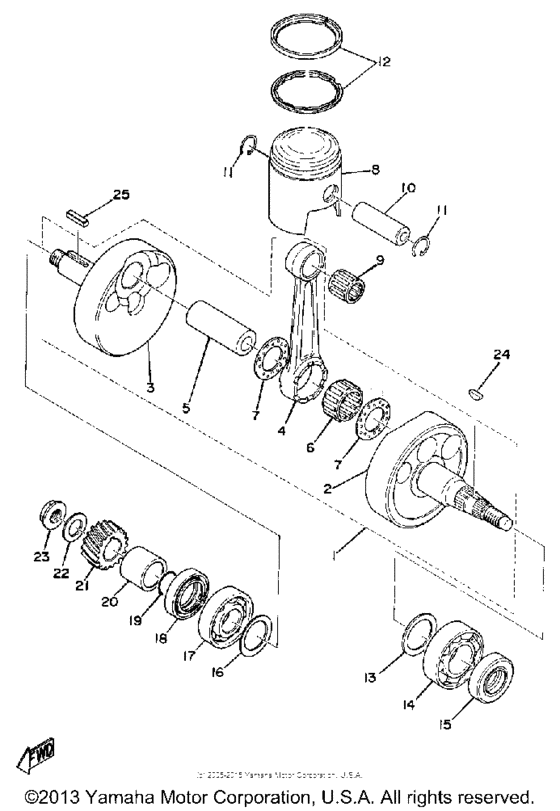

Crankshaft & Piston Diagram Yamaha DT125 DT125
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
560-11400-01-00
Crankshaft Assembly
|
560-11400-01-00 |
— | ||
|
2
|
2
316-11412-60-00
Crank 1
|
316-11412-60-00 |
— | ||
|
3
|
3
401-11422-00-00
Crank 2
|
401-11422-00-00 |
— | ||
|
4
|
4
3R2-11651-01-00
Rod, Connecting
|
3R2-11651-01-00 |
— | ||
|
5
|
5
3M5-11681-00-00 Pin, Crank 1 |
3M5-11681-00-00 |
from US $9.78 |
||
|
6
|
6
933-10422-77-00
Bearing, Cylinder
|
933-10422-77-00 |
— | ||
| replacement | |||||
|
6
|
6
933-10422-C8-00 Bearing, Cylinder |
933-10422-C8-00 |
from US $25.92 |
||
|
7
|
7
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $4.38 |
||
|
8
|
8
444-11631-00-97
Piston Std
M4-036 |
444-11631-00-97 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
M4-036 |
999-99999-99-00 |
— | ||
|
8
|
8
444-11635-00-00
Piston 1 O/s 0.25
O/S 0.25 ALTERNATE PARTS |
444-11635-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
O/S 0.25 ALTERNATE PARTS |
999-99999-99-00 |
— | ||
|
8
|
8
444-11638-00-00
Piston 4 O/s 1.00
O/S 1.00 ALTERNATE PARTS |
444-11638-00-00 |
— | ||
|
8
|
8
444-11637-00-00
Piston 3 O/s 0.75
O/S 0.75 ALTERNATE PARTS |
444-11637-00-00 |
— | ||
|
8
|
8
444-11636-00-00
Piston 2 O/s 0.50
O/S 0.50 ALTERNATE PARTS |
444-11636-00-00 |
— | ||
|
9
|
9
933-10216-L2-00 Bearing, Cylindrical |
933-10216-L2-00 |
from US $28.57 |
||
|
10
|
10
137-11633-00-00
Pin, Piston
|
137-11633-00-00 |
— | ||
| replacement | |||||
|
10
|
10
137-11633-10-00 Pin, Piston |
137-11633-10-00 |
from US $18.22 |
||
|
11
|
11
93450-17025-00 Circlip |
93450-17025-00 |
from US $1.70 |
||
|
12
|
12
444-11610-00-00
Piston Ringset Std
|
444-11610-00-00 |
— | ||
|
12
|
12
444-11610-10-00
Piston Ringset 1St
1ST ALTERNATE PARTS |
444-11610-10-00 |
— | ||
|
12
|
12
444-11610-20-00
Piston Ringset 2Nd
2ND ALTERNATE PARTS |
444-11610-20-00 |
— | ||
|
12
|
12
444-11610-30-00
Piston Ringset 3Rd
3RD ALTERNATE PARTS |
444-11610-30-00 |
— | ||
|
12
|
12
444-11610-40-00 Piston Ringset 4Th4TH ALTERNATE PARTS |
444-11610-40-00 |
US $43.09 |
||
|
13
|
13
132-11561-00-03
Shim, Crank 1
U.RU.R |
132-11561-00-03 |
— | ||
|
13
|
13
132-11561-00-05
Shim, Crank 1
U.RU.R |
132-11561-00-05 |
— | ||
|
14
|
14
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $17.18 |
||
|
15
|
15
93102-25061-00 Oil Seal, Sd-Type |
93102-25061-00 |
from US $6.66 |
||
|
16
|
16
136-11561-00-04
Shim, Crank 1
U.RU.R |
136-11561-00-04 |
— | ||
|
16
|
16
136-11561-00-03
Shim, Crank 1
U.RU.R |
136-11561-00-03 |
— | ||
|
16
|
16
136-11561-00-05
Shim, Crank 1
U.RU.R |
136-11561-00-05 |
— | ||
|
16
|
16
136-11561-00-06
Shim, Crank 1
U.RU.R |
136-11561-00-06 |
— | ||
|
16
|
16
136-11561-00-07
Shim, Crank 1
U.RU.R |
136-11561-00-07 |
— | ||
|
17
|
17
93306-30421-00 Bearing |
93306-30421-00 |
from US $31.91 |
||
| replacement | |||||
|
17
|
17
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $26.36 |
||
|
18
|
18
93103-28011-00 Oil Seal, Sw-Type (93103-28100)93103-28100 |
93103-28011-00 |
from US $7.49 |
||
|
19
|
19
93210-180A6-00 O-Ring |
93210-180A6-00 |
from US $2.02 |
||
|
20
|
20
90387-205E9-00 Collar |
90387-205E9-00 |
from US $12.33 |
||
|
21
|
21
401-16111-00-30 Gear, Pri Drive |
401-16111-00-30 |
from US $71.57 |
||
|
22
|
22
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
US $1.70 |
||
| replacement | |||||
|
22
|
22
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $1.04 |
||
|
23
|
23
901-79122-44-00
Nut
|
901-79122-44-00 |
— | ||
| replacement | |||||
|
23
|
23
90179-12659-00 Nut |
90179-12659-00 |
from US $1.81 |
||
|
24
|
24
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
25
|
25
90282-05005-00 Key, Straight |
90282-05005-00 |
from US $1.70 |
||
