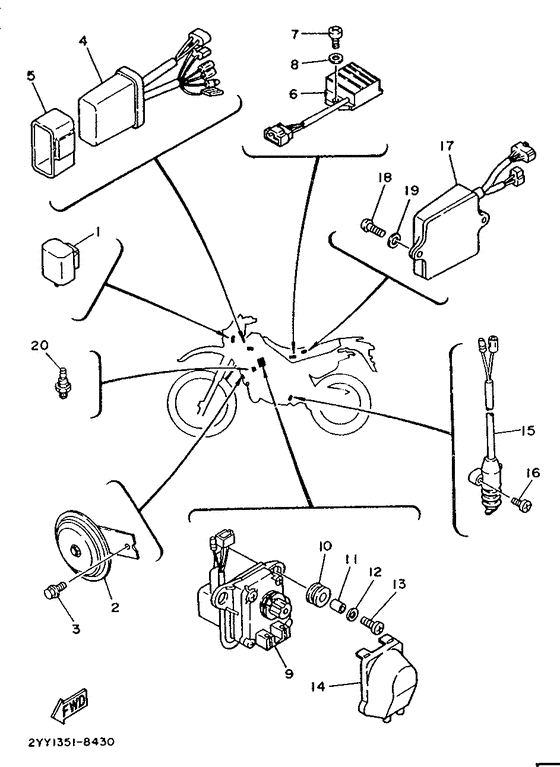

Electrical 2 Diagram Yamaha DT200
- Year
- 1988
- Colour
- Sky Blue (SYB; 00G8)
- Model code
- 2YY1
- Sales region
- France (999)
- Engine Capacity
- 200
- Model
- DT200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
34L-83350-20-00 Flasher Relay Assy |
34L-83350-20-00 |
from US $30.31 |
||
|
02
|
02
3BN-83371-00-00 Horn |
3BN-83371-00-00 |
from US $59.65 |
||
| replacement | |||||
|
02
|
02
2KG-83371-00-00 Horn |
2KG-83371-00-00 |
from US $89.25 |
||
|
03
|
03
91026-06012-00 Bolt |
91026-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
03
|
03
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
04
|
04
3ET-85540-00-00
Cdi Unit Assy
|
3ET-85540-00-00 |
— | ||
|
05
|
05
3BN-85546-00-00
Band
|
3BN-85546-00-00 |
— | ||
|
06
|
06
3BN-81960-01-00 Rectifier & Regulator Assy |
3BN-81960-01-00 |
US $235.22 |
||
|
07
|
07
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
07
|
07
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
09
|
09
3BN-85820-00-00
Servo Motor Assy
|
3BN-85820-00-00 |
— | ||
| replacements | |||||
|
09
|
09
3BN-85820-02-00
Servo Motor Assy
|
3BN-85820-02-00 |
— | ||
|
09
|
09
3BN-85820-01-00
Servo Motor Assy
|
3BN-85820-01-00 |
— | ||
|
10
|
10
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
11
|
11
90387-06553-00 Collar (1M1) |
90387-06553-00 |
from US $1.98 |
||
|
12
|
12
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
12
|
12
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
13
|
13
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
14
|
14
34X-85825-00-00 Cover, Wire |
34X-85825-00-00 |
from US $18.59 |
||
| replacement | |||||
|
14
|
14
34X-85825-01-00 Cover, Wire |
34X-85825-01-00 |
US $18.59 |
||
|
15
|
15
5Y1-82566-00-00 Switch, Side Stand |
5Y1-82566-00-00 |
from US $120.34 |
||
|
16
|
16
90152-05021-00 Screw, Flat Head |
90152-05021-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
17
|
17
4Y3-85590-M0-00
Control Unit Assembly
|
4Y3-85590-M0-00 |
— | ||
|
18
|
18
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
18
|
18
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
20
|
20
11H-83591-00-00 Thermo Unit |
11H-83591-00-00 |
from US $90.36 |
||
