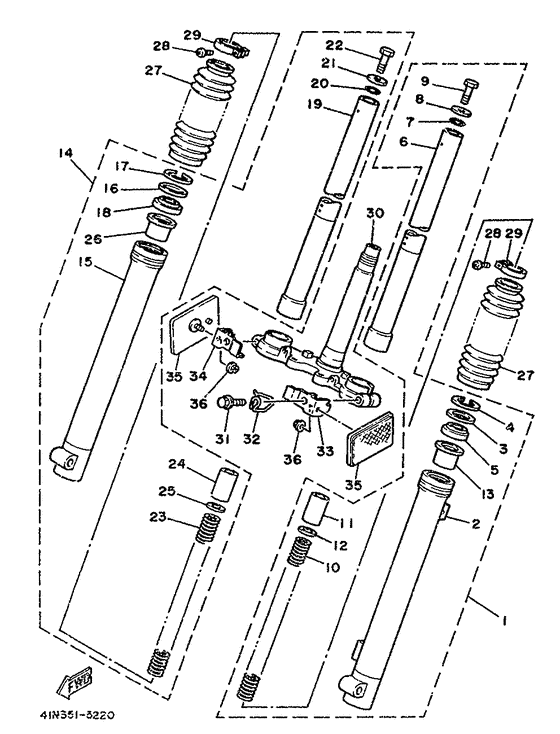

Front fork Diagram Yamaha DT50 DT50
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 29H
- Sales region
- Belgium (999)
- Engine Capacity
- 50
- Model
- DT50MX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5J0-W2313-00-00
Front Fork Assy (L.h)
|
5J0-W2313-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
5J0-23126-00-98
Tube, Outer (Left)
Low gloss black |
5J0-23126-00-98 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
Low gloss black |
999-99999-99-00 |
— | ||
|
03
|
03
5J0-23149-00-00
Washer, Spring Upper
|
5J0-23149-00-00 |
— | ||
|
04
|
04
3V3-23156-00-00 Ring, Snap |
3V3-23156-00-00 |
from US $6.09 |
||
|
05
|
05
5F6-23145-00-00 Oil Seal |
5F6-23145-00-00 |
from US $19.58 |
||
| replacements | |||||
|
05
|
05
33J-23145-00-00 Oil Seal |
33J-23145-00-00 |
from US $9.44 |
||
|
05
|
05
5F6-F3145-00-00 Oil Seal Front F (5F6-23145-00 |
5F6-F3145-00-00 |
US $12.92 |
||
|
06
|
06
5J0-23124-00-00
Tube, Inner 1
|
5J0-23124-00-00 |
— | ||
|
07
|
07
2Y1-23114-00-00
Gasket
|
2Y1-23114-00-00 |
— | ||
|
08
|
08
5J0-23112-01-00
Washer, Cap
|
5J0-23112-01-00 |
— | ||
|
09
|
09
5G0-23111-00-00
Bolt, Cap
|
5G0-23111-00-00 |
— | ||
|
10
|
10
5J0-23141-00-00
Spring, Front Fork
|
5J0-23141-00-00 |
— | ||
| replacement | |||||
|
10
|
10
5T8-23141-00-00
Spring, Front Fork
|
5T8-23141-00-00 |
— | ||
|
11
|
11
1E5-92072-70-00
Spacer
|
1E5-92072-70-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
5J0-23146-00-00 Washer, Oil Seal |
5J0-23146-00-00 |
from US $2.79 |
||
|
13
|
13
5J0-23125-00-00
Metal, Slide 1
|
5J0-23125-00-00 |
— | ||
|
14
|
14
5J0-W2314-00-00
Front Fork Assy (R.h)
|
5J0-W2314-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
5J0-23136-00-98
Tube, Outer (Right)
Low gloss black |
5J0-23136-00-98 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
Low gloss black |
999-99999-99-00 |
— | ||
|
16
|
16
5J0-23149-00-00
Washer, Spring Upper
|
5J0-23149-00-00 |
— | ||
|
17
|
17
3V3-23156-00-00 Ring, Snap |
3V3-23156-00-00 |
from US $6.09 |
||
|
18
|
18
5F6-23145-00-00 Oil Seal |
5F6-23145-00-00 |
from US $19.58 |
||
| replacements | |||||
|
18
|
18
33J-23145-00-00 Oil Seal |
33J-23145-00-00 |
from US $9.44 |
||
|
18
|
18
5F6-F3145-00-00 Oil Seal Front F (5F6-23145-00 |
5F6-F3145-00-00 |
US $12.92 |
||
|
19
|
19
5J0-23124-00-00
Tube, Inner 1
|
5J0-23124-00-00 |
— | ||
|
20
|
20
2Y1-23114-00-00
Gasket
|
2Y1-23114-00-00 |
— | ||
|
21
|
21
5J0-23112-01-00
Washer, Cap
|
5J0-23112-01-00 |
— | ||
|
22
|
22
5G0-23111-00-00
Bolt, Cap
|
5G0-23111-00-00 |
— | ||
|
23
|
23
5J0-23141-00-00
Spring, Front Fork
|
5J0-23141-00-00 |
— | ||
| replacement | |||||
|
23
|
23
5T8-23141-00-00
Spring, Front Fork
|
5T8-23141-00-00 |
— | ||
|
24
|
24
1E5-92072-70-00
Spacer
|
1E5-92072-70-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
5J0-23146-00-00 Washer, Oil Seal |
5J0-23146-00-00 |
from US $2.79 |
||
|
26
|
26
5J0-23125-00-00
Metal, Slide 1
|
5J0-23125-00-00 |
— | ||
|
27
|
27
41N-23191-00-00
Boot
Ur competition yellow |
41N-23191-00-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
Ur competition yellow |
999-99999-99-00 |
— | ||
|
27
|
27
5M3-23191-00-00
Boot
Ur chappy red |
5M3-23191-00-00 |
— | ||
| replacement | |||||
|
27
|
27
29J-23191-11-00
Boot
Ur chappy red |
29J-23191-11-00 |
— | ||
|
28
|
28
509-23194-L0-00 Screw, Boot Band |
509-23194-L0-00 |
from US $2.98 |
||
|
29
|
29
5J0-23192-00-00
Band
|
5J0-23192-00-00 |
— | ||
|
30
|
30
5T8-23340-00-00
Under Bracket Comp
|
5T8-23340-00-00 |
— | ||
|
31
|
31
5J0-23346-00-00
Bolt 1
|
5J0-23346-00-00 |
— | ||
| replacement | |||||
|
31
|
31
122-23346-02-00 Bolt 1 |
122-23346-02-00 |
from US $6.66 |
||
|
32
|
32
5J0-23317-00-00
Holder, Cable
|
5J0-23317-00-00 |
— | ||
|
33
|
33
41N-23486-00-00
Stay, Plate
|
41N-23486-00-00 |
— | ||
| replacement | |||||
|
33
|
33
29J-23486-00-00
Stay, Plate
|
29J-23486-00-00 |
— | ||
|
34
|
34
41N-23487-00-00
Stay, Plate
|
41N-23487-00-00 |
— | ||
| replacement | |||||
|
34
|
34
29J-23487-00-00
Stay, Plate (R.h)
|
29J-23487-00-00 |
— | ||
|
35
|
35
41M-85110-41-00
Reflector Assy
|
41M-85110-41-00 |
— | ||
|
36
|
36
95701-06600-00
Nut, With Washer
|
95701-06600-00 |
— | ||
