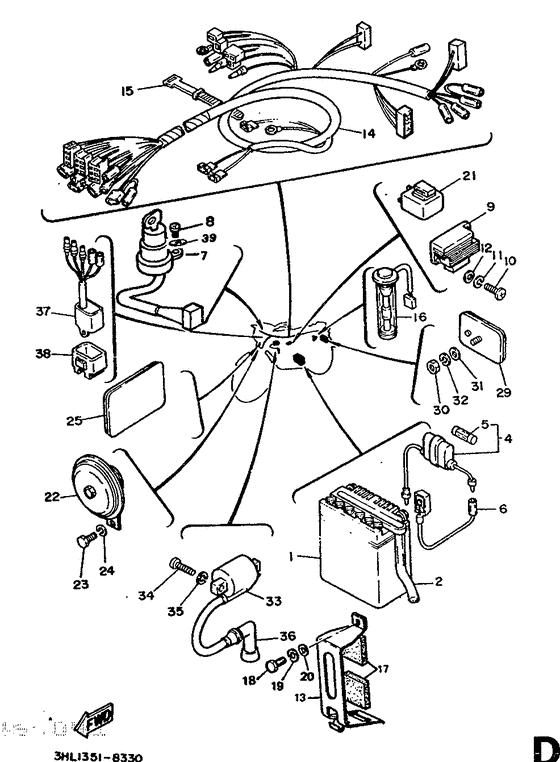

Electrical 5 Diagram Yamaha DT50 DT50
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3HL2
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- DT50R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3HL-82110-00-00
Battery Assy (Gm3-3A)
|
3HL-82110-00-00 |
— | ||
| replacement | |||||
|
01
|
01
9079E-Y0007-00
Battery (Yb3L-A)
|
9079E-Y0007-00 |
— | ||
|
02
|
02
90445-08171-00
Pipe, Breather
|
90445-08171-00 |
— | ||
| replacements | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
2RH-21826-00-00
Pipe, Breather
|
2RH-21826-00-00 |
— | ||
|
04
|
04
5T8-H2150-00-00
Fuse Holder Assy
|
5T8-H2150-00-00 |
— | ||
|
05
|
05
5T8-H2151-00-00
Fuse
|
5T8-H2151-00-00 |
— | ||
| replacement | |||||
|
05
|
05
1A0-82151-00-00 Fuse (12V-10A) |
1A0-82151-00-00 |
from US $4.96 |
||
|
06
|
06
10W-82115-00-00 Wire, Plus Lead |
10W-82115-00-00 |
US $20.83 |
||
|
07
|
07
3HL-H2510-10-00
Main Switch Assy
|
3HL-H2510-10-00 |
— | ||
| replacement | |||||
|
07
|
07
3HL-H2510-00-00
Main Switch Assy
|
3HL-H2510-00-00 |
— | ||
|
08
|
08
97901-04010-00
Screw, With Washer
Mbk |
97901-04010-00 |
— | ||
|
09
|
09
22J-81960-92-00 Rectifier/reg Assembly |
22J-81960-92-00 |
from US $140.92 |
||
|
10
|
10
985-01050-16-00
Screw, Pan Head
|
985-01050-16-00 |
— | ||
| replacements | |||||
|
10
|
10
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
10
|
10
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
11
|
11
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
12
|
12
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
12
|
12
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
12
|
12
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
13
|
13
3HL-H2128-00-00
Bracket, Battery
|
3HL-H2128-00-00 |
— | ||
|
14
|
14
3HL-82590-00-00
Wire Harness Assy
|
3HL-82590-00-00 |
— | ||
|
15
|
15
5T8-H3936-00-00
Band, Switch Cord
|
5T8-H3936-00-00 |
— | ||
|
16
|
16
3HL-85720-00-00
Oil Level Gauge Assy
|
3HL-85720-00-00 |
— | ||
| replacement | |||||
|
16
|
16
3HL-85720-02-00
Oil Level Gauge Assy
|
3HL-85720-02-00 |
— | ||
|
17
|
17
3HL-H2121-00-00
Pad, Battery
|
3HL-H2121-00-00 |
— | ||
|
18
|
18
97001-06012-00 Bolt, Hexagon |
97001-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
18
|
18
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
18
|
18
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
19
|
19
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
21
|
21
29C-83350-20-00
Flasher Relay Assy
|
29C-83350-20-00 |
— | ||
|
22
|
22
1KK-83371-00-00 Horn |
1KK-83371-00-00 |
US $89.25 |
||
| replacement | |||||
|
22
|
22
2KG-83371-00-00 Horn |
2KG-83371-00-00 |
from US $89.25 |
||
|
23
|
23
97001-06012-00 Bolt, Hexagon |
97001-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
23
|
23
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
23
|
23
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
24
|
24
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
25
|
25
3EC-11511-00-00
Cover, Crank
Mbk |
3EC-11511-00-00 |
— | ||
|
29
|
29
3G1-85130-01-00
Rear Reflector Assy
|
3G1-85130-01-00 |
— | ||
| replacement | |||||
|
29
|
29
4KM-85130-00-00 Rear Reflector Assy |
4KM-85130-00-00 |
from US $13.18 |
||
|
30
|
30
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
30
|
30
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
31
|
31
92990-09200-00
Washer
|
92990-09200-00 |
— | ||
|
32
|
32
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
32
|
32
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
33
|
33
2JN-82310-M0-00
Ignition Coil Assemb
|
2JN-82310-M0-00 |
— | ||
| replacements | |||||
|
33
|
33
4RP-82310-29-00 Ignition Coil Assembly |
4RP-82310-29-00 |
from US $89.39 |
||
|
33
|
33
4RP-82310-28-00 Ignition Coil Assy |
4RP-82310-28-00 |
from US $91.57 |
||
|
33
|
33
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
33
|
33
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
33
|
33
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
33
|
33
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
34
|
34
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
34
|
34
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
35
|
35
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
35
|
35
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
36
|
36
1J7-82370-00-00 Plug Cap Assembly |
1J7-82370-00-00 |
from US $45.18 |
||
|
37
|
37
3HL-85540-00-00
C.d.i. Unit Assy
|
3HL-85540-00-00 |
— | ||
|
38
|
38
50W-85546-00-00 Band |
50W-85546-00-00 |
US $20.11 |
||
