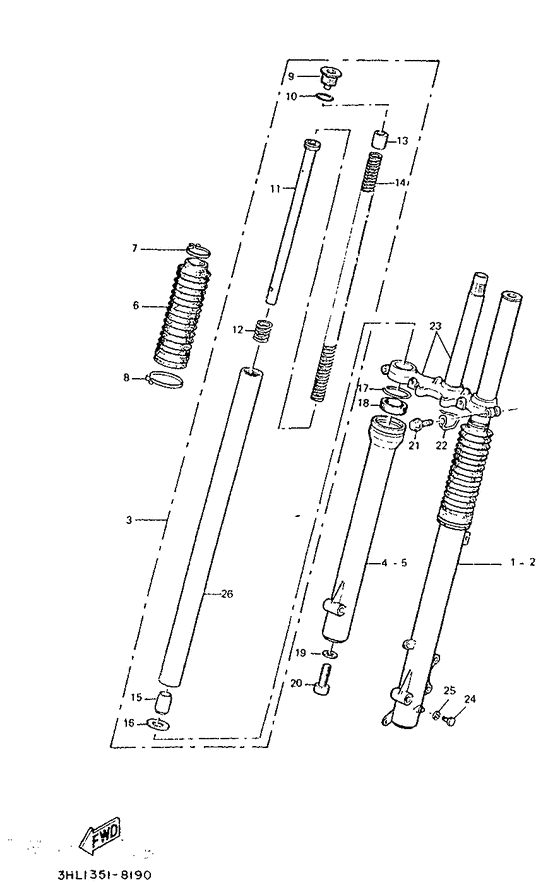

Fourche Diagram Yamaha DT50 DT50
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3HL2
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- DT50R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3HL-F3102-20-00
Front Fork Assy (L.h)
Mbk |
3HL-F3102-20-00 |
— | ||
| replacement | |||||
|
01
|
01
3HL-F3360-00-00
Arm Assy 1
Mbk |
3HL-F3360-00-00 |
— | ||
|
02
|
02
3HL-F3103-00-00
Front Fork Assy (R.h)
Mbk |
3HL-F3103-00-00 |
— | ||
| replacement | |||||
|
02
|
02
3HL-F3370-00-00
Arm Assy 2
Mbk |
3HL-F3370-00-00 |
— | ||
|
03
|
03
3HL-F3110-00-00
Inner Tube Comp.1
Mbk |
3HL-F3110-00-00 |
— | ||
|
04
|
04
3HL-F3126-10-00
Tube, Outer (L.h)
Mbk |
3HL-F3126-10-00 |
— | ||
|
05
|
05
3HL-F3136-00-00
Tube, Outer 2
Mbk |
3HL-F3136-00-00 |
— | ||
|
06
|
06
3HL-F3191-00-00
Boot
Mbk |
3HL-F3191-00-00 |
— | ||
|
06
|
06
3HL-F3191-10-00
Boot
Mbk |
3HL-F3191-10-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
Mbk |
999-99999-99-00 |
— | ||
|
06
|
06
3HL-F3191-20-00
Boot
Mbk |
3HL-F3191-20-00 |
— | ||
|
07
|
07
3HL-F3192-00-00
Band
Mbk |
3HL-F3192-00-00 |
— | ||
|
08
|
08
3HL-F3192-10-00
Band
Mbk |
3HL-F3192-10-00 |
— | ||
|
09
|
09
3HL-F3111-00-00
Bolt, Cap
Mbk |
3HL-F3111-00-00 |
— | ||
|
10
|
10
3HL-F3114-00-00
Gasket
Mbk |
3HL-F3114-00-00 |
— | ||
|
11
|
11
3HL-F3171-00-00
Piston, Front Fork
Mbk |
3HL-F3171-00-00 |
— | ||
|
12
|
12
3HL-F3152-00-00
Spring, Sub
Mbk |
3HL-F3152-00-00 |
— | ||
|
13
|
13
3HL-F3118-00-00
Spacer
Mbk |
3HL-F3118-00-00 |
— | ||
|
14
|
14
3HL-F3141-00-00
Spring, Front Fork
Mbk |
3HL-F3141-00-00 |
— | ||
|
15
|
15
3HL-F3173-00-00
Spindle, Taper
Mbk |
3HL-F3173-00-00 |
— | ||
|
16
|
16
3HL-F3116-00-00
Seat 2
Mbk |
3HL-F3116-00-00 |
— | ||
|
17
|
17
3HL-F3156-00-00
Clip, Oil Seal
Mbk |
3HL-F3156-00-00 |
— | ||
|
18
|
18
3HL-F3145-00-00
Oil Seal
Mbk |
3HL-F3145-00-00 |
— | ||
|
19
|
19
3HL-F3158-00-00
Gasket
Mbk |
3HL-F3158-00-00 |
— | ||
|
20
|
20
3HL-F3181-00-00
Bolt, Hexagon Socket Head
Mbk |
3HL-F3181-00-00 |
— | ||
|
21
|
21
3HL-F3451-00-00
Bolt, Fitting 1
Mbk |
3HL-F3451-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
Mbk |
999-99999-99-00 |
— | ||
|
23
|
23
3HL-F3340-00-00
Under Bracket Comp
Mbk |
3HL-F3340-00-00 |
— | ||
|
24
|
24
3HL-F3119-00-00
Plug, Drain
Mbk |
3HL-F3119-00-00 |
— | ||
|
25
|
25
3HL-F3129-00-00
Gasket, Drain Plug
Mbk |
3HL-F3129-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
Mbk |
999-99999-99-00 |
— | ||
|
26
|
26
3HL-F3124-00-00
Tube, Inner 1
Mbk |
3HL-F3124-00-00 |
— | ||
