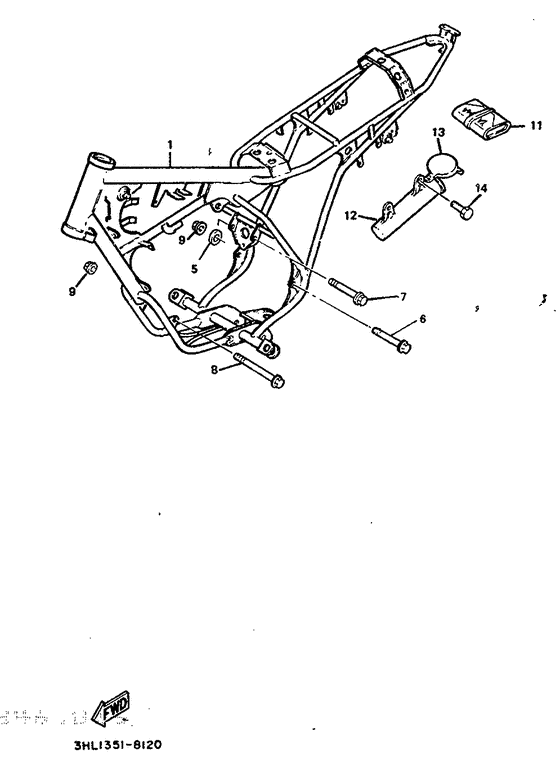

Frame Diagram Yamaha DT50 DT50
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3HL2
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- DT50R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3HL-F1110-00-33
Frame Comp
Mbk |
3HL-F1110-00-33 |
— | ||
|
01
|
01
3HL-F1110-00-36
Frame Comp
Mbk |
3HL-F1110-00-36 |
— | ||
|
07
|
07
95811-08090-00 Bolt, Flange (2K7) |
95811-08090-00 |
from US $5.24 |
||
| replacement | |||||
|
07
|
07
95817-08090-00 Bolt, Flange |
95817-08090-00 |
from US $5.24 |
||
|
08
|
08
95811-08120-00 Bolt, Flange (22W) |
95811-08120-00 |
from US $4.53 |
||
| replacement | |||||
|
08
|
08
95817-08120-00 Bolt, Flange |
95817-08120-00 |
from US $4.53 |
||
|
09
|
09
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
09
|
09
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
09
|
09
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
10
|
10
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
11
|
11
54V-F3100-00-00
Front Fork Assy
Mbk |
54V-F3100-00-00 |
— | ||
|
12
|
12
17W-28173-00-00
Box, Tool
|
17W-28173-00-00 |
— | ||
|
13
|
13
17W-28185-00-00 Lid |
17W-28185-00-00 |
from US $17.82 |
||
|
14
|
14
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
14
|
14
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.52 |
||
|
14
|
14
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
