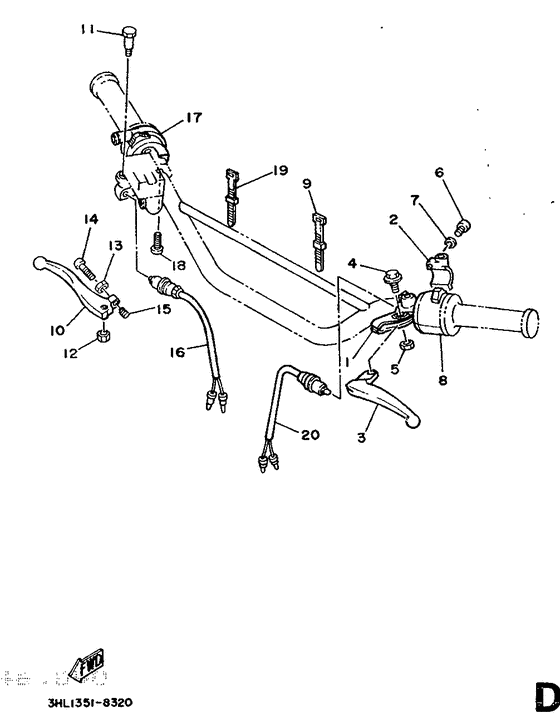

Handle switch & lever Diagram Yamaha DT50 DT50
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3HL2
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- DT50R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1NL-82911-00-00
Holder, Lever 1
|
1NL-82911-00-00 |
— | ||
|
02
|
02
33G-82913-00-00
Holder, Lever Lower 1
|
33G-82913-00-00 |
— | ||
| replacement | |||||
|
02
|
02
33G-82913-01-00 Holder, Lever Lower 1 |
33G-82913-01-00 |
from US $18.03 |
||
|
03
|
03
5V1-83912-00-00
Lever 1
|
5V1-83912-00-00 |
— | ||
|
04
|
04
90109-06798-00 Bolt |
90109-06798-00 |
from US $2.36 |
||
| replacement | |||||
|
04
|
04
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
05
|
05
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
05
|
05
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
06
|
06
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
06
|
06
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
07
|
07
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
07
|
07
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
08
|
08
3HL-83973-00-00
Switch, Handle 3
|
3HL-83973-00-00 |
— | ||
|
09
|
09
5T8-H3936-00-00
Band, Switch Cord
|
5T8-H3936-00-00 |
— | ||
|
10
|
10
43F-83922-00-00 Lever 2 |
43F-83922-00-00 |
from US $26.28 |
||
| replacement | |||||
|
10
|
10
3FY-83922-01-00 Lever 2 |
3FY-83922-01-00 |
from US $20.71 |
||
|
11
|
11
90109-062A8-00 Bolt |
90109-062A8-00 |
from US $6.66 |
||
|
12
|
12
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
13
|
13
90170-06010-00 Nut |
90170-06010-00 |
from US $2.08 |
||
|
14
|
14
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
90149-06131-00 Screw |
90149-06131-00 |
from US $1.81 |
||
|
15
|
15
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
16
|
16
1A0-83980-30-00
Front Stop Switch Assy
|
1A0-83980-30-00 |
— | ||
| replacement | |||||
|
16
|
16
26H-83980-00-00 Front Stop Switch Assy |
26H-83980-00-00 |
from US $64.66 |
||
|
17
|
17
1R6-83976-01-00 Switch, Handle 1 |
1R6-83976-01-00 |
from US $28.62 |
||
|
18
|
18
90157-05027-00 Screw, Pan Head |
90157-05027-00 |
from US $1.98 |
||
| replacement | |||||
|
18
|
18
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
19
|
19
5T8-83936-00-00
Band, Switch Cord
|
5T8-83936-00-00 |
— | ||
|
20
|
20
17J-83980-00-00 Front Stop Switch Assy |
17J-83980-00-00 |
US $37.58 |
||
| replacement | |||||
|
20
|
20
395-83980-09-00 Front Stop Switch Assy |
395-83980-09-00 |
from US $28.79 |
||
