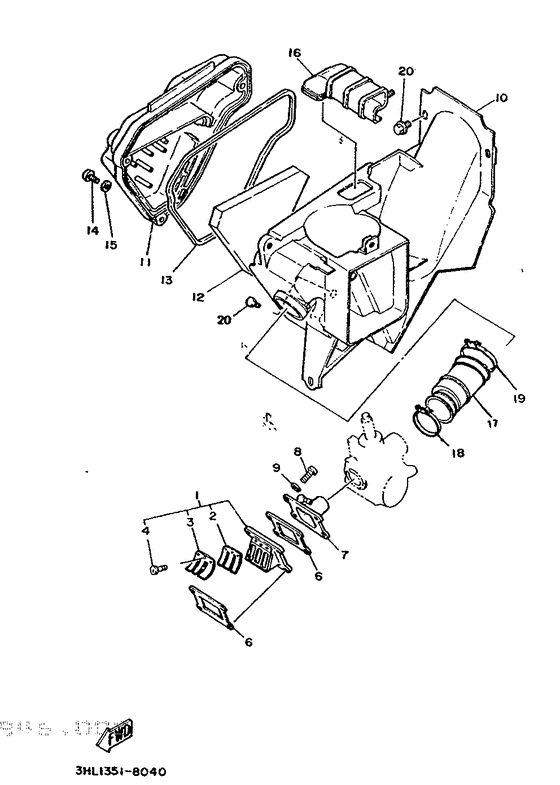

Intake Diagram Yamaha DT50 DT50
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3HL2
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- DT50R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5C1-13610-00-00
Reed Valve Assy
|
5C1-13610-00-00 |
— | ||
|
02
|
02
2A3-13613-00-00
Reed, Valve
|
2A3-13613-00-00 |
— | ||
|
03
|
03
5C1-13616-00-00
Stopper, Reed Valve
|
5C1-13616-00-00 |
— | ||
|
04
|
04
98501-03008-00 Screw, Pan Head |
98501-03008-00 |
from US $1.21 |
||
| replacement | |||||
|
04
|
04
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
05
|
05
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
06
|
06
353-13621-00-00 Gasket, Valve Seat |
353-13621-00-00 |
from US $5.38 |
||
| replacement | |||||
|
06
|
06
3MT-13621-00-00 Gasket, Valve Seat |
3MT-13621-00-00 |
from US $6.94 |
||
|
07
|
07
5R0-13565-00-00
Joint, Carburetor
|
5R0-13565-00-00 |
— | ||
|
08
|
08
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
08
|
08
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
09
|
09
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
09
|
09
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
3HL-14420-00-00
Air Cleaner Assy 2
|
3HL-14420-00-00 |
— | ||
|
11
|
11
5J1-14412-00-00
Cap, Cleaner Case 1
|
5J1-14412-00-00 |
— | ||
|
12
|
12
3T2-14451-00-00 Element, Air Cleaner |
3T2-14451-00-00 |
US $18.31 |
||
|
13
|
13
5TB-14452-00-00
Seal
|
5TB-14452-00-00 |
— | ||
|
14
|
14
92506-06016-00 Screw |
92506-06016-00 |
from US $1.42 |
||
| replacement | |||||
|
14
|
14
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
15
|
15
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
16
|
16
3T2-14437-00-00 Duct |
3T2-14437-00-00 |
US $17.92 |
||
|
17
|
17
3HL-E4453-00-00
Joint, Air Cleaner 1
Mbk |
3HL-E4453-00-00 |
— | ||
|
18
|
18
90460-33087-00 Clamp, Hose |
90460-33087-00 |
from US $6.28 |
||
|
19
|
19
90460-51059-00 Clamp, Hose |
90460-51059-00 |
from US $7.65 |
||
|
20
|
20
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
20
|
20
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
21
|
21
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
21
|
21
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
21
|
21
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
22
|
22
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
22
|
22
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
22
|
22
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
