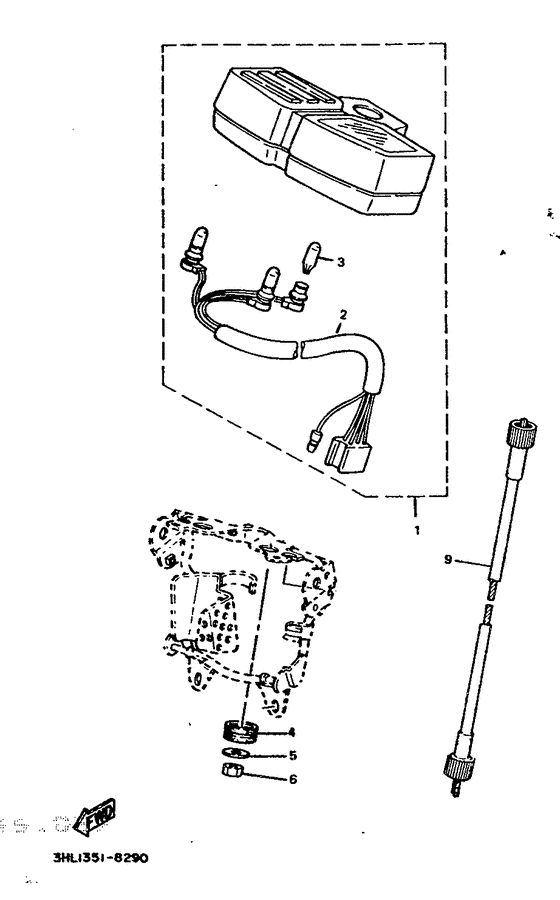

Meter Diagram Yamaha DT50 DT50
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3HL2
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- DT50R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3HL-83510-00-00
Speedometer Assy
|
3HL-83510-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
3HL-83520-00-00
Socket Cord Assy
|
3HL-83520-00-00 |
— | ||
|
03
|
03
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
03
|
03
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
04
|
04
5T8-H3513-00-00
Damper
Mbk |
5T8-H3513-00-00 |
— | ||
|
05
|
05
5T8-H3524-00-00
Washer, Special
Mbk |
5T8-H3524-00-00 |
— | ||
|
06
|
06
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
06
|
06
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
07
|
07
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
07
|
07
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
08
|
08
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
09
|
09
3HL-H3550-10-00
Speedometer Cable Assy
Mbk |
3HL-H3550-10-00 |
— | ||
| replacement | |||||
|
09
|
09
3VP-83550-02-00 Speedometer Cable AssyMbk |
3VP-83550-02-00 |
from US $30.46 |
||
|
10
|
10
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
