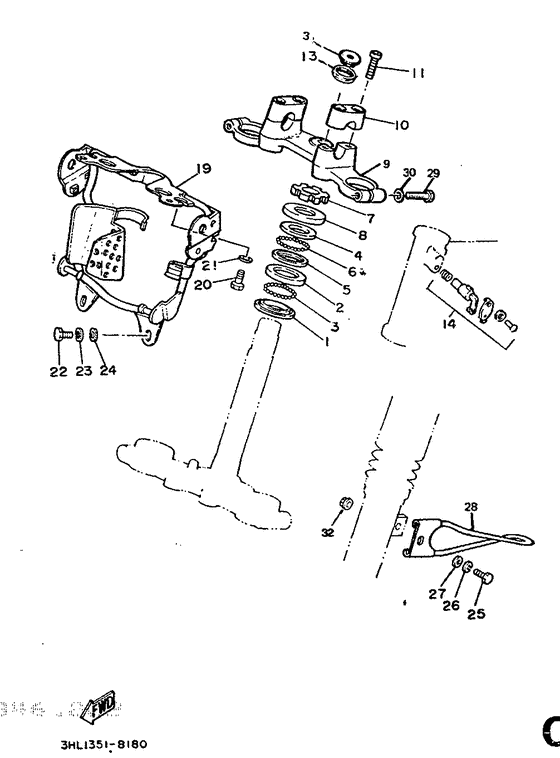

Steering Diagram Yamaha DT50 DT50
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3HL2
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- DT50R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
01
|
01
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
02
|
02
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
02
|
02
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
03
|
03
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
04
|
04
122-23411-00-00 Race, Ball 1 |
122-23411-00-00 |
from US $8.78 |
||
| replacements | |||||
|
04
|
04
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
|
04
|
04
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
05
|
05
122-23412-00-00 Race, Ball 2 |
122-23412-00-00 |
from US $7.93 |
||
| replacements | |||||
|
05
|
05
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
|
05
|
05
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
06
|
06
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
06
|
06
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
07
|
07
3HL-F3453-00-00
Nut, Fitting 1
Mbk |
3HL-F3453-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
Mbk |
999-99999-99-00 |
— | ||
|
08
|
08
5T8-F4316-00-00
Pipe 6
Mbk |
5T8-F4316-00-00 |
— | ||
|
09
|
09
3HL-F3435-00-00
Crown, Handle
Mbk |
3HL-F3435-00-00 |
— | ||
|
10
|
10
3HL-F3441-00-00
Holder, Handle Upper
|
3HL-F3441-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
97026-08030-00 Bolt |
97026-08030-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
12
|
12
929-06086-00-00
Washer
|
929-06086-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.39 |
||
|
13
|
13
3HL-F3454-00-00
Nut, Fitting 2
Mbk |
3HL-F3454-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
Mbk |
999-99999-99-00 |
— | ||
|
14
|
14
5T8-F3482-00-00
Body & Key, Steering Lock
Mbk |
5T8-F3482-00-00 |
— | ||
| replacement | |||||
|
14
|
14
4CT-F3482-00-00
Body & Key, Steering Lock
Mbk |
4CT-F3482-00-00 |
— | ||
|
15
|
15
5T8-F3484-00-00
Cap, Handle Lock
|
5T8-F3484-00-00 |
— | ||
|
16
|
16
90269-04300-00
Rivet
|
90269-04300-00 |
— | ||
| replacement | |||||
|
16
|
16
4CT-F3482-00-00
Body & Key, Steering Lock
|
4CT-F3482-00-00 |
— | ||
|
17
|
17
90208-04302-00
Washer, Conical Spring
|
90208-04302-00 |
— | ||
|
18
|
18
5TB-F3485-00-00
Plate, Number
Mbk |
5TB-F3485-00-00 |
— | ||
|
19
|
19
1NN-F3174-00-00
Stay, Headlight
Mbk |
1NN-F3174-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
Mbk |
999-99999-99-00 |
— | ||
|
20
|
20
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
20
|
20
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
21
|
21
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
22
|
22
970-16060-16-00
Bolt
|
970-16060-16-00 |
— | ||
| replacement | |||||
|
22
|
22
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
23
|
23
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
24
|
24
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
24
|
24
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
25
|
25
970-16060-16-00
Bolt
|
970-16060-16-00 |
— | ||
| replacement | |||||
|
25
|
25
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
26
|
26
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
26
|
26
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
27
|
27
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
27
|
27
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
28
|
28
20L-F3317-00-00
Holder, Cable
Mbk |
20L-F3317-00-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
Mbk |
999-99999-99-00 |
— | ||
|
29
|
29
3HL-F3452-00-00
Bolt, Fitting 2
|
3HL-F3452-00-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
3HL-F3457-00-00
Washer
|
3HL-F3457-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
3HL-F3469-00-00
Cap, Bolt
Mbk |
3HL-F3469-00-00 |
— | ||
