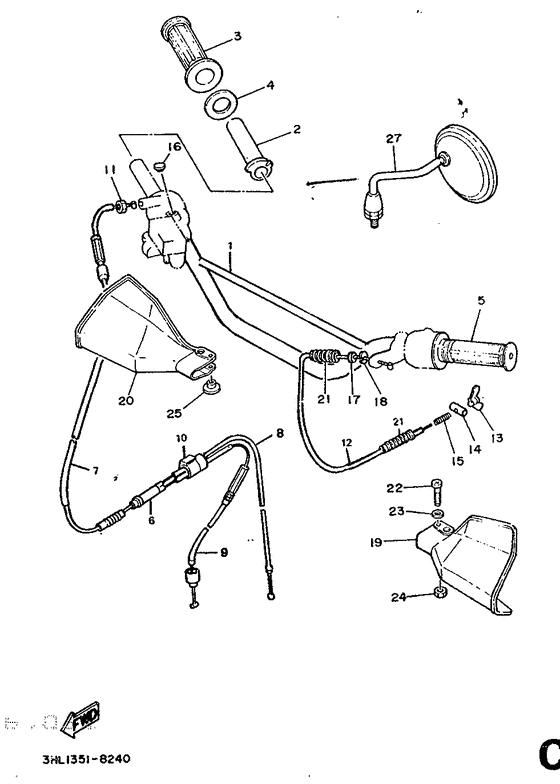

Steering handle & cable Diagram Yamaha DT50 DT50
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3HL2
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- DT50R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3HK-F6111-00-00
Handlebar
Mbk |
3HK-F6111-00-00 |
— | ||
|
02
|
02
434-26243-00-00 Tube, Throttle Guide |
434-26243-00-00 |
from US $8.93 |
||
|
03
|
03
5T8-F6242-00-00
Grip (Right)
Mbk |
5T8-F6242-00-00 |
— | ||
|
04
|
04
1M1-26249-01-00 Ring, Leaf |
1M1-26249-01-00 |
from US $3.68 |
||
|
05
|
05
5T8-F6241-00-00
Grip
|
5T8-F6241-00-00 |
— | ||
|
06
|
06
5T8-F6261-00-00
Connector, Cable
|
5T8-F6261-00-00 |
— | ||
| replacement | |||||
|
06
|
06
4U1-26261-00-00 Connector, Cable |
4U1-26261-00-00 |
from US $7.08 |
||
|
07
|
07
3HL-F6311-10-00
Cable, Throttle 1
Mbk |
3HL-F6311-10-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
Mbk |
999-99999-99-00 |
— | ||
|
08
|
08
3HL-F6312-00-00
Cable, Throttle 2
Mbk |
3HL-F6312-00-00 |
— | ||
|
09
|
09
3HL-F6321-00-00
Cable, Pump
Mbk |
3HL-F6321-00-00 |
— | ||
|
10
|
10
5T8-F6393-01-00
Holder
|
5T8-F6393-01-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
12
|
12
3HL-F6351-10-00
Cable, Brake
Mbk |
3HL-F6351-10-00 |
— | ||
|
13
|
13
90175-06013-00 Nut, Wing |
90175-06013-00 |
from US $1.84 |
||
| replacement | |||||
|
13
|
13
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
14
|
14
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
15
|
15
90501-09052-00 Spring, Compression |
90501-09052-00 |
from US $2.35 |
||
|
16
|
16
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
17
|
17
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
17
|
17
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
18
|
18
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
18
|
18
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
19
|
19
1LN-26141-00-00 Guard, Brush 1 |
1LN-26141-00-00 |
US $81.61 |
||
|
19
|
19
2KF-26141-00-00 Guard, Brush 1 |
2KF-26141-00-00 |
from US $30.33 |
||
|
19
|
19
3BN-26141-00-00
Guard, Brush 1
|
3BN-26141-00-00 |
— | ||
|
20
|
20
1LN-26142-00-00 Guard, Brush 2 |
1LN-26142-00-00 |
US $71.17 |
||
| replacement | |||||
|
20
|
20
3TB-26142-20-00 Guard, Brush 2 |
3TB-26142-20-00 |
from US $26.14 |
||
|
20
|
20
2KF-26142-00-00
Guard, Brush 2
|
2KF-26142-00-00 |
— | ||
|
20
|
20
3BN-26142-00-00
Guard, Brush 2
|
3BN-26142-00-00 |
— | ||
|
21
|
21
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
22
|
22
92501-06035-00 Screw, Pan Head |
92501-06035-00 |
from US $1.21 |
||
| replacements | |||||
|
22
|
22
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.39 |
||
|
22
|
22
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
23
|
23
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
23
|
23
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
24
|
24
953-03067-00-00
Nut
|
953-03067-00-00 |
— | ||
| replacements | |||||
|
24
|
24
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
24
|
24
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
|
25
|
25
90387-06500-00 Collar |
90387-06500-00 |
from US $2.39 |
||
|
27
|
27
55V-26280-00-00 Rear View Mirror Assy(Left)Back mirror assy (left) |
55V-26280-00-00 |
from US $51.12 |
||
