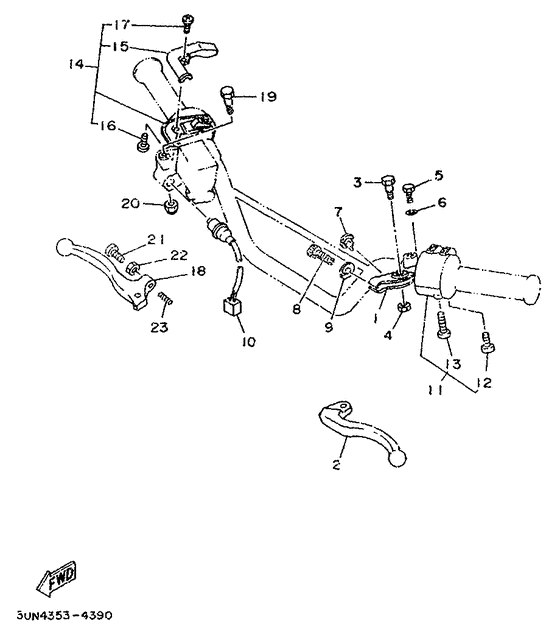

Handle switch & lever Diagram Yamaha DT50 DT50
- Year
- 1994
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3UN4
- Sales region
- Portugal (999)
- Engine Capacity
- 50
- Model
- DT50LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3Y6-82911-00-00 Holder, Lever 1 |
3Y6-82911-00-00 |
from US $31.03 |
||
|
02
|
02
23X-83912-00-00
Lever 1
|
23X-83912-00-00 |
— | ||
| replacement | |||||
|
02
|
02
23X-83912-02-00 Lever 1 |
23X-83912-02-00 |
from US $21.96 |
||
|
03
|
03
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
04
|
04
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
05
|
05
97006-06022-00 Bolt (3G1) |
97006-06022-00 |
from US $1.56 |
||
| replacement | |||||
|
05
|
05
97007-06022-00 Bolt |
97007-06022-00 |
from US $1.56 |
||
|
06
|
06
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
06
|
06
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
07
|
07
503-83956-00-00
Cap (Black)
|
503-83956-00-00 |
— | ||
|
08
|
08
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
08
|
08
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
09
|
09
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
09
|
09
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
10
|
10
3WP-83980-00-00 Front Stop Switch |
3WP-83980-00-00 |
US $30.04 |
||
|
11
|
11
3UN-83972-00-00
Switch, Handle 4
|
3UN-83972-00-00 |
— | ||
|
12
|
12
98586-05025-00 Screw, Pan Head |
98586-05025-00 |
US $1.84 |
||
| replacement | |||||
|
12
|
12
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
13
|
13
985-06050-30-00
Screw, Pan Head
|
985-06050-30-00 |
— | ||
| replacement | |||||
|
13
|
13
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
14
|
14
47J-83976-01-00
Switch, Handle 1
|
47J-83976-01-00 |
— | ||
|
15
|
15
33G-83956-01-00
Cap 1
|
33G-83956-01-00 |
— | ||
|
16
|
16
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
16
|
16
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
17
|
17
98906-04008-00 Screw, Bind |
98906-04008-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
98907-04008-00 Screw, Binding |
98907-04008-00 |
from US $1.56 |
||
|
18
|
18
55Y-83922-00-00 Lever 2 |
55Y-83922-00-00 |
from US $23.16 |
||
| replacement | |||||
|
18
|
18
55Y-83922-02-00 Lever 2 |
55Y-83922-02-00 |
from US $21.77 |
||
|
19
|
19
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
20
|
20
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
21
|
21
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
21
|
21
90149-06131-00 Screw |
90149-06131-00 |
from US $2.08 |
||
|
22
|
22
90170-06010-00 Nut |
90170-06010-00 |
from US $2.35 |
||
|
23
|
23
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
