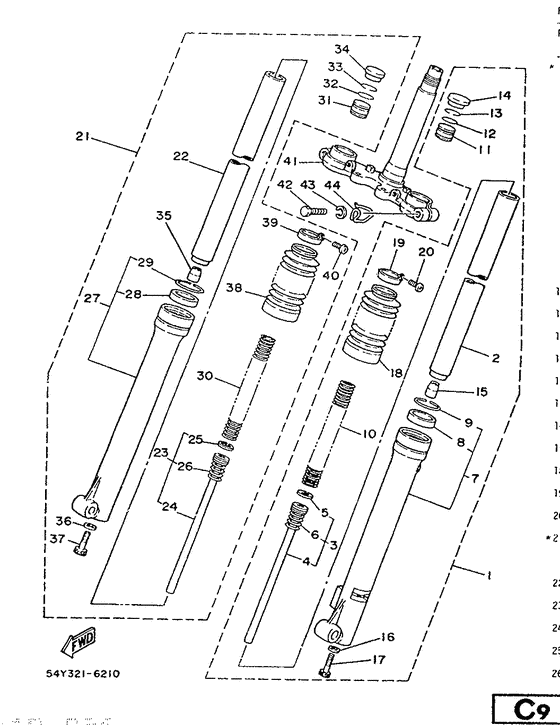

Front fork Diagram Yamaha DT50 DT50
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 54Y
- Sales region
- Norway (999)
- Engine Capacity
- 50
- Model
- DT50MX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1MK-F3102-00-00
Front Fork Assy (L.h)
001601 |
1MK-F3102-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
001601 |
999-99999-99-00 |
— | ||
|
01
|
01
5T8-23102-00-00
Front Fork Assy (L.h)
|
5T8-23102-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
1MK-F3110-00-00
Inner Tube Comp.1
|
1MK-F3110-00-00 |
— | ||
|
03
|
03
20L-F3170-20-00
Cylinder Comp., Front Fork
|
20L-F3170-20-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
20L-23171-00-00
Piston, Front Fork
|
20L-23171-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
29U-23157-00-00
Ring, Piston
|
29U-23157-00-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
20L-F3151-20-00
Spring, Rebound
|
20L-F3151-20-00 |
— | ||
|
07
|
07
20L-F3106-20-00
Outer Tube Comp. (L.h)
|
20L-F3106-20-00 |
— | ||
| replacement | |||||
|
07
|
07
20L-F3126-20-33
Tube Outer 1
|
20L-F3126-20-33 |
— | ||
|
08
|
08
93110-30008-00 Oil Seal, Swo-Type |
93110-30008-00 |
from US $11.62 |
||
| replacement | |||||
|
08
|
08
93110-30013-00 Oil Seal, Swo-Type |
93110-30013-00 |
from US $11.62 |
||
|
09
|
09
93450-43072-00 Circlip, Inner |
93450-43072-00 |
from US $2.79 |
||
|
10
|
10
20L-F3141-20-00
Spring, Front Fork
|
20L-F3141-20-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
21L-F3111-20-00
Bolt, Cap
|
21L-F3111-20-00 |
— | ||
| replacement | |||||
|
11
|
11
5H5-23111-00-00 Bolt, Cap |
5H5-23111-00-00 |
from US $28.89 |
||
|
12
|
12
93210-21276-00 O-Ring |
93210-21276-00 |
from US $1.94 |
||
| replacement | |||||
|
12
|
12
93210-21001-00 O-Ring |
93210-21001-00 |
from US $1.94 |
||
|
13
|
13
93450-27071-00 Circlip, Inner |
93450-27071-00 |
from US $3.40 |
||
|
14
|
14
21L-F3154-00-00
Plug, Inner Tube
|
21L-F3154-00-00 |
— | ||
|
15
|
15
21L-F3173-20-00
Spindle, Taper
|
21L-F3173-20-00 |
— | ||
|
16
|
16
90430-08155-00 Gasket |
90430-08155-00 |
US $1.70 |
||
| replacements | |||||
|
16
|
16
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.81 |
||
|
16
|
16
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.39 |
||
|
17
|
17
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.52 |
||
|
18
|
18
20L-F3191-20-00
Boot
|
20L-F3191-20-00 |
— | ||
|
19
|
19
20L-F3192-00-00
Band
|
20L-F3192-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
98506-06012-00 Screw Pan Head |
98506-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
21
|
21
1MK-F3103-00-00
Front Fork Assy (R.h)
001601 |
1MK-F3103-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
001601 |
999-99999-99-00 |
— | ||
|
21
|
21
5T8-23103-00-00
Front Fork Assy (R.h)
|
5T8-23103-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
1MK-F3110-00-00
Inner Tube Comp.1
|
1MK-F3110-00-00 |
— | ||
|
23
|
23
20L-F3170-20-00
Cylinder Comp., Front Fork
|
20L-F3170-20-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
20L-23171-00-00
Piston, Front Fork
|
20L-23171-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
29U-23157-00-00
Ring, Piston
|
29U-23157-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
20L-F3151-20-00
Spring, Rebound
|
20L-F3151-20-00 |
— | ||
|
27
|
27
20L-F3107-20-00
Outer Tube Comp. (R.h)
|
20L-F3107-20-00 |
— | ||
| replacement | |||||
|
27
|
27
20L-F3136-20-33
Cuter Tube Comp, Right
|
20L-F3136-20-33 |
— | ||
|
28
|
28
93110-30008-00 Oil Seal, Swo-Type |
93110-30008-00 |
from US $11.62 |
||
| replacement | |||||
|
28
|
28
93110-30013-00 Oil Seal, Swo-Type |
93110-30013-00 |
from US $11.62 |
||
|
29
|
29
93450-43072-00 Circlip, Inner |
93450-43072-00 |
from US $2.79 |
||
|
30
|
30
20L-F3141-20-00
Spring, Front Fork
|
20L-F3141-20-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
21L-F3111-20-00
Bolt, Cap
|
21L-F3111-20-00 |
— | ||
| replacement | |||||
|
31
|
31
5H5-23111-00-00 Bolt, Cap |
5H5-23111-00-00 |
from US $28.89 |
||
|
32
|
32
93210-21276-00 O-Ring |
93210-21276-00 |
from US $1.94 |
||
| replacement | |||||
|
32
|
32
93210-21001-00 O-Ring |
93210-21001-00 |
from US $1.94 |
||
|
33
|
33
93450-27071-00 Circlip, Inner |
93450-27071-00 |
from US $3.40 |
||
|
34
|
34
21L-F3154-00-00
Plug, Inner Tube
|
21L-F3154-00-00 |
— | ||
|
35
|
35
21L-F3173-20-00
Spindle, Taper
|
21L-F3173-20-00 |
— | ||
|
36
|
36
90430-08155-00 Gasket |
90430-08155-00 |
US $1.70 |
||
| replacements | |||||
|
36
|
36
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.81 |
||
|
36
|
36
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.39 |
||
|
37
|
37
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
37
|
37
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.52 |
||
|
38
|
38
20L-F3191-20-00
Boot
|
20L-F3191-20-00 |
— | ||
|
39
|
39
20L-F3192-00-00
Band
|
20L-F3192-00-00 |
— | ||
| replacement | |||||
|
39
|
39
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
40
|
40
98506-04012-00 Screw, Pan Head |
98506-04012-00 |
from US $1.07 |
||
| replacement | |||||
|
40
|
40
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
41
|
41
20L-F3340-20-00
Under Bracket Comp
001601 |
20L-F3340-20-00 |
— | ||
| replacement | |||||
|
41
|
41
5T8-23340-00-00
Under Bracket Comp
001601 |
5T8-23340-00-00 |
— | ||
|
41
|
41
5T8-23340-00-00
Under Bracket Comp
|
5T8-23340-00-00 |
— | ||
|
42
|
42
20L-F3346-01-00
Bolt 1
001601 |
20L-F3346-01-00 |
— | ||
|
42
|
42
5J0-23346-00-00
Bolt 1
|
5J0-23346-00-00 |
— | ||
| replacement | |||||
|
42
|
42
122-23346-02-00 Bolt 1 |
122-23346-02-00 |
from US $6.66 |
||
|
43
|
43
92906-10100-00 Washer, Spring |
92906-10100-00 |
from US $1.21 |
||
| replacement | |||||
|
43
|
43
92907-10100-00 Washer, Spring |
92907-10100-00 |
from US $1.39 |
||
|
44
|
44
20L-F3317-00-00
Holder, Cable
001601 |
20L-F3317-00-00 |
— | ||
| replacement | |||||
|
44
|
44
999-99999-99-00
Not Available
001601 |
999-99999-99-00 |
— | ||
|
44
|
44
5J0-23317-00-00
Holder, Cable
|
5J0-23317-00-00 |
— | ||
