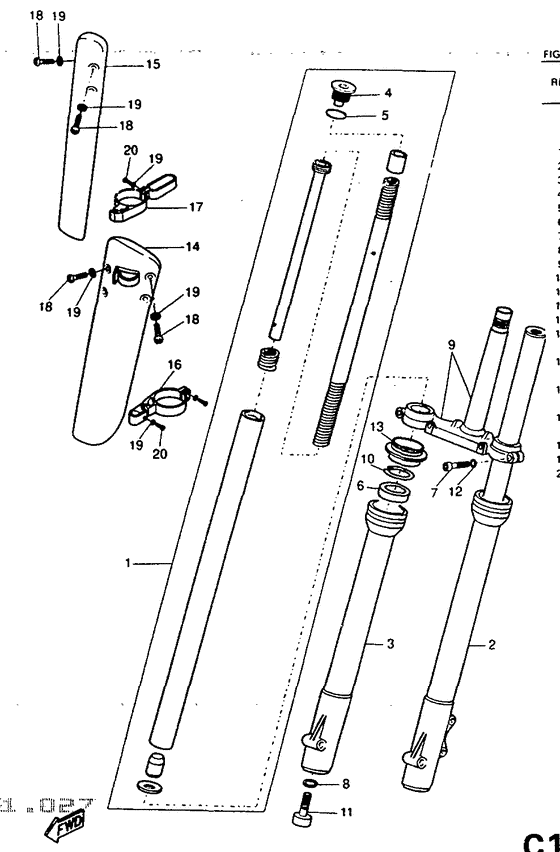

Front fork Diagram Yamaha DT50 DT50
- Year
- 1997
- Colour
- Ink Blue (IKB; 00EX)
- Model code
- 5BK1
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- DT50R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BK-F3110-00-00
Inner Tube Comp.1
|
5BK-F3110-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
01
|
01
5BK-F3360-00-00
Arm Assy 1
Rep 1+2+6+8+10+11+13 |
5BK-F3360-00-00 |
— | ||
|
01
|
01
5BK-F3370-00-00
Arm Assy 2
Rep 1+2+6+8+10+11+13 |
5BK-F3370-00-00 |
— | ||
|
02
|
02
5BK-F3126-00-00
Tube, Outer (Left)
|
5BK-F3126-00-00 |
— | ||
|
03
|
03
5BK-F3136-00-00
Tube, Outer (Right)
|
5BK-F3136-00-00 |
— | ||
|
04
|
04
5BK-F3111-00-00
Bolt, Cap
|
5BK-F3111-00-00 |
— | ||
|
05
|
05
5BK-F3114-00-00
Gasket
|
5BK-F3114-00-00 |
— | ||
|
06
|
06
5BK-F3145-00-00
Oil Seal
|
5BK-F3145-00-00 |
— | ||
|
07
|
07
5BK-F3456-00-00
Washer
|
5BK-F3456-00-00 |
— | ||
| replacement | |||||
|
07
|
07
5JH-F3158-00-00 Gasket |
5JH-F3158-00-00 |
US $12.47 |
||
|
08
|
08
5BK-F3452-00-00
Bolt, Fitting 2
|
5BK-F3452-00-00 |
— | ||
|
09
|
09
5BK-F3440-00-00
Under Bracket Sub Comp
|
5BK-F3440-00-00 |
— | ||
|
10
|
10
3HL-F3156-00-00
Clip, Oil Seal
|
3HL-F3156-00-00 |
— | ||
|
11
|
11
3HL-F3181-00-00
Bolt, Hexagon Socket Head
|
3HL-F3181-00-00 |
— | ||
|
12
|
12
4TD-F3112-00-00
Washer, Cap
|
4TD-F3112-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
NU6-23144-00-00
Seal, Dust
|
NU6-23144-00-00 |
— | ||
| replacement | |||||
|
13
|
13
4TD-F3144-00-00
Seal, Dust
|
4TD-F3144-00-00 |
— | ||
|
14
|
14
5BK-F314H-00-00
Protecter Comp., 1
Ur rr |
5BK-F314H-00-00 |
— | ||
|
14
|
14
5BK-F314H-10-00
Protecter Comp., 1
Ur ikb |
5BK-F314H-10-00 |
— | ||
|
15
|
15
5BK-F314J-00-00
Protecter Comp., 2
Ur rr |
5BK-F314J-00-00 |
— | ||
|
15
|
15
5BK-F314J-10-00
Protecter Comp., 2
Ur ikb |
5BK-F314J-10-00 |
— | ||
|
16
|
16
5BK-F314F-00-00
Protecter Guide Comp., 1
Ur rr |
5BK-F314F-00-00 |
— | ||
| replacement | |||||
|
16
|
16
5BK-F314F-01-00
Protector,guide Comp
Ur rr |
5BK-F314F-01-00 |
— | ||
|
16
|
16
5BK-F314F-10-00
Protecter Guide Comp., 1
Ur ikb |
5BK-F314F-10-00 |
— | ||
| replacement | |||||
|
16
|
16
5BK-F314F-11-00
Protector,guide Comp.1
Ur ikb |
5BK-F314F-11-00 |
— | ||
|
17
|
17
5BK-F314G-00-00
Protecter Guide Comp., 2
Ur rr |
5BK-F314G-00-00 |
— | ||
|
17
|
17
5BK-F314G-10-00
Protecter Guide Comp., 2
Ur ikb |
5BK-F314G-10-00 |
— | ||
|
18
|
18
5BK-F3119-10-00
Plug, Drain
|
5BK-F3119-10-00 |
— | ||
|
19
|
19
5BK-F3444-00-00
Washer
|
5BK-F3444-00-00 |
— | ||
|
20
|
20
5BK-F3119-00-00
Plug, Drain
|
5BK-F3119-00-00 |
— | ||
