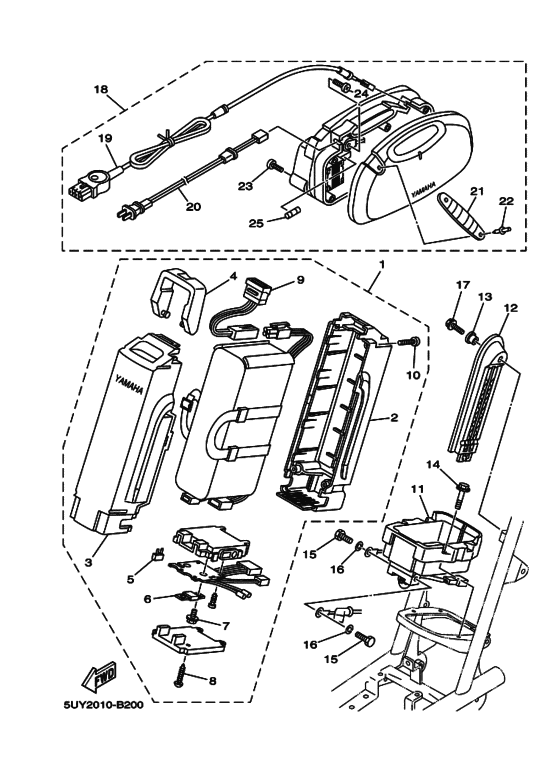

Electrical 1 Diagram Yamaha EA06 Passol
- Year
- 2003
- Colour
- Vivid Orange Solid 1 (VOS1; 0905)
- Model code
- 5UY2
- Sales region
- Europe (010)
- Engine Capacity
- 0
- Color Variant
- E
- Model
- EA06
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5UY-8212A-01-00 Battery box assy |
5UY-8212A-01-00 |
US $823.17 |
||
|
2
|
2
5UY-8212X-01-00 Battery box comp |
5UY-8212X-01-00 |
US $36.87 |
||
| replacement | |||||
|
2
|
2
999-99035-19-00
Battery Box Assy
|
999-99035-19-00 |
— | ||
|
3
|
3
5UY-8212Y-01-00 Battery box comp |
5UY-8212Y-01-00 |
US $40.01 |
||
|
4
|
4
5UY-8214A-00-00 Grip, Battery |
5UY-8214A-00-00 |
US $8.66 |
||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
5UY-82159-09-00
Fuse spare
|
5UY-82159-09-00 |
— | ||
|
6
|
6
5UY-82151-00-00 Fuse (80A)80A; ﾘﾃﾙﾌﾕｰｽﾞ 8 |
5UY-82151-00-00 |
US $18.51 |
||
|
7
|
7
5UY-82113-00-00 Screw |
5UY-82113-00-00 |
US $2.27 |
||
|
8
|
8
97707-30514-00 Screw, Tapping |
97707-30514-00 |
from US $2.27 |
||
|
9
|
9
5UY-87239-00-00 Receptacle Comp |
5UY-87239-00-00 |
US $32.90 |
||
|
10
|
10
5AT-82133-00-00 Screw, Fitting |
5AT-82133-00-00 |
US $0.95 |
||
|
11
|
11
5UY-82102-00-00 Battery Seat Assy |
5UY-82102-00-00 |
US $173.54 |
||
|
12
|
12
5UY-82164-00-00 Case 2 |
5UY-82164-00-00 |
US $27.76 |
||
|
13
|
13
90387-050X4-00 Collar |
90387-050X4-00 |
from US $5.24 |
||
|
14
|
14
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.52 |
||
|
15
|
15
90153-06020-00 Screw, Hexagon |
90153-06020-00 |
from US $1.49 |
||
|
16
|
16
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
17
|
17
90119-05009-00 Bolt, With Washer |
90119-05009-00 |
from US $2.08 |
||
|
18
|
18
5UY-82107-00-00
Charger, Battery
|
5UY-82107-00-00 |
— | ||
|
19
|
19
5UY-W8712-00-00
D.c. Cord Kit
|
5UY-W8712-00-00 |
— | ||
|
20
|
20
5UY-87132-00-00
Cord Assy 2
|
5UY-87132-00-00 |
— | ||
|
21
|
21
5UY-82155-00-00
Band
|
5UY-82155-00-00 |
— | ||
|
22
|
22
5UY-83315-00-00
Rivet
|
5UY-83315-00-00 |
— | ||
|
23
|
23
5UY-81145-00-00
Screw 1
|
5UY-81145-00-00 |
— | ||
|
24
|
24
5UY-81146-00-00
Screw 2
|
5UY-81146-00-00 |
— | ||
|
25
|
25
5UY-87275-00-00
Fuse (250V 6.3A)
250V 6.3A |
5UY-87275-00-00 |
— | ||
