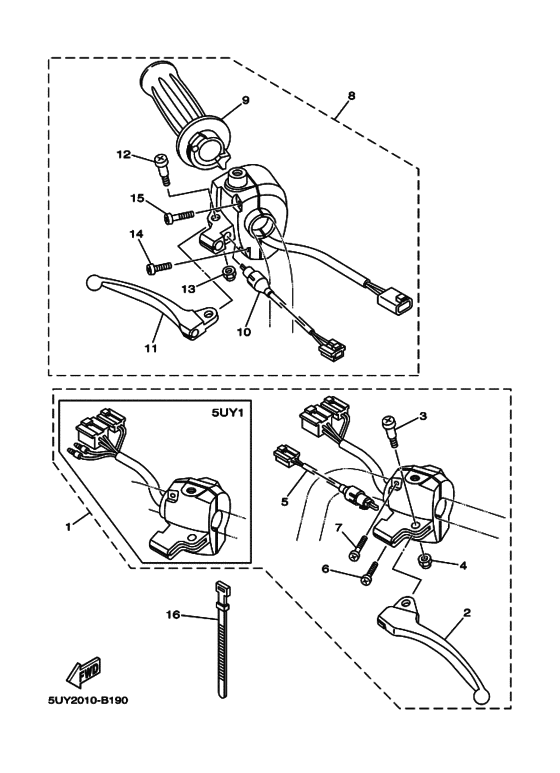

Handle switch & lever Diagram Yamaha EA06 Passol
- Year
- 2003
- Colour
- Vivid Orange Solid 1 (VOS1; 0905)
- Model code
- 5UY2
- Sales region
- Japan (010)
- Engine Capacity
- 0
- Color Variant
- E
- Model
- EA06
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5UY-82910-10-00 Lever Holder Assy (Left)レバーホルダアセンブリ ; レフト |
5UY-82910-10-00 |
US $190.66 |
||
|
2
|
2
2T4-83912-02-00 Lever 1．レバー １; |
2T4-83912-02-00 |
US $14.43 |
||
| replacement | |||||
|
2
|
2
2T4-83912-03-00 Lever 1．レバー １; |
2T4-83912-03-00 |
from US $9.44 |
||
|
3
|
3
90149-06175-00 Screw．スクリユ; |
90149-06175-00 |
from US $3.54 |
||
|
4
|
4
95707-05300-00 Nut, Flange．ナツト，フランジ; |
95707-05300-00 |
from US $1.42 |
||
|
5
|
5
5UY-83980-00-00 Front Stop Switch Assy．フロントストツプスイツチアセンブリ; |
5UY-83980-00-00 |
US $24.79 |
||
|
6
|
6
985-07050-20-00
Screw, Pan Head(4My)
．スクリユ，パンヘツド; |
985-07050-20-00 |
— | ||
| replacement | |||||
|
6
|
6
98517-05020-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05020-00 |
from US $1.70 |
||
|
7
|
7
985-07050-30-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-07050-30-00 |
— | ||
| replacement | |||||
|
7
|
7
98517-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
8
|
8
5UY-82920-00-00 Lever Holder Assy (Right)レバーホルダアセンブリ ; ライト |
5UY-82920-00-00 |
US $138.98 |
||
|
9
|
9
5UY-26240-00-00
Grip Assy
．グリツプアセンブリ; |
5UY-26240-00-00 |
— | ||
|
10
|
10
5UY-83980-00-00 Front Stop Switch Assy．フロントストツプスイツチアセンブリ; |
5UY-83980-00-00 |
US $24.79 |
||
|
11
|
11
2T4-83922-02-00 Lever 2．レバー ２; |
2T4-83922-02-00 |
US $13.45 |
||
| replacement | |||||
|
11
|
11
2T4-83922-03-00 Lever 2．レバー ２; |
2T4-83922-03-00 |
from US $9.44 |
||
|
12
|
12
90149-06175-00 Screw．スクリユ; |
90149-06175-00 |
from US $3.54 |
||
|
13
|
13
95707-05300-00 Nut, Flange．ナツト，フランジ; |
95707-05300-00 |
from US $1.42 |
||
|
14
|
14
985-07050-20-00
Screw, Pan Head(4My)
．スクリユ，パンヘツド; |
985-07050-20-00 |
— | ||
| replacement | |||||
|
14
|
14
98517-05020-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05020-00 |
from US $1.70 |
||
|
15
|
15
985-07050-30-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-07050-30-00 |
— | ||
| replacement | |||||
|
15
|
15
98517-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
16
|
16
437-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-01-00 |
from US $1.81 |
||
