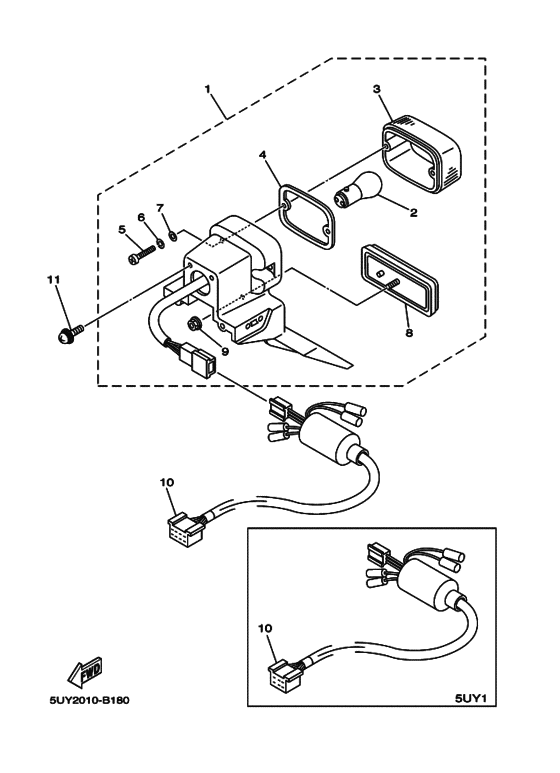

Taillight Diagram Yamaha EA06 Passol
- Year
- 2003
- Colour
- Vivid Orange Solid 1 (VOS1; 0905)
- Model code
- 5UY2
- Sales region
- Japan (010)
- Engine Capacity
- 0
- Color Variant
- E
- Model
- EA06
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5UY-84700-00-00
Taillight Assy
テールライトアセンブリ; |
5UY-84700-00-00 |
— | ||
|
2
|
2
5UY-84714-00-00 Bulb, Taillight (24V-21/6W)．バルブ，テールライト ; ２４Ｖ−２１／６Ｗ |
5UY-84714-00-00 |
US $12.12 |
||
|
3
|
3
5UY-84521-00-00 Lens, Taillight．レンズ，テールライト; |
5UY-84521-00-00 |
US $23.79 |
||
|
4
|
4
5UY-84723-00-00 Gasket, Tail Lens．ガスケツト，テールレンズ; |
5UY-84723-00-00 |
US $4.25 |
||
|
5
|
5
98506-04016-00 Screw, Pan Head．スクリユ，パンヘツド; |
98506-04016-00 |
from US $1.26 |
||
| replacement | |||||
|
5
|
5
98507-04018-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-04018-00 |
from US $1.56 |
||
|
6
|
6
92906-04100-00 Washer, Spring．ワツシヤ，スプリング; |
92906-04100-00 |
from US $1.21 |
||
| replacements | |||||
|
6
|
6
92907-04100-00 Washer, Spring．ワツシヤ，スプリング; |
92907-04100-00 |
from US $1.21 |
||
|
6
|
6
999-99999-99-00
Not Available
．ワツシヤ，スプリング; |
999-99999-99-00 |
— | ||
|
7
|
7
92906-04600-00 Washer．ワツシヤ，プレート; |
92906-04600-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
92907-04600-00 Washer(Jf2)．ワツシヤ，プレート; |
92907-04600-00 |
from US $1.07 |
||
|
8
|
8
3Y6-85130-02-00 Reflector．リヤリフレクタアセンブリ; |
3Y6-85130-02-00 |
from US $11.12 |
||
|
9
|
9
95702-05500-00 Nut, With Washer．ナツト，フランジ; |
95702-05500-00 |
from US $0.50 |
||
| replacement | |||||
|
9
|
9
95707-05500-00 Nut, Flange．ナツト，フランジ; |
95707-05500-00 |
from US $1.07 |
||
|
10
|
10
5UY-84717-10-00 Cord, Taillightコード，テールライト; |
5UY-84717-10-00 |
US $23.20 |
||
|
11
|
11
90159-05073-00 Screw, With Washer |
90159-05073-00 |
from US $2.69 |
||
| replacement | |||||
|
11
|
11
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
