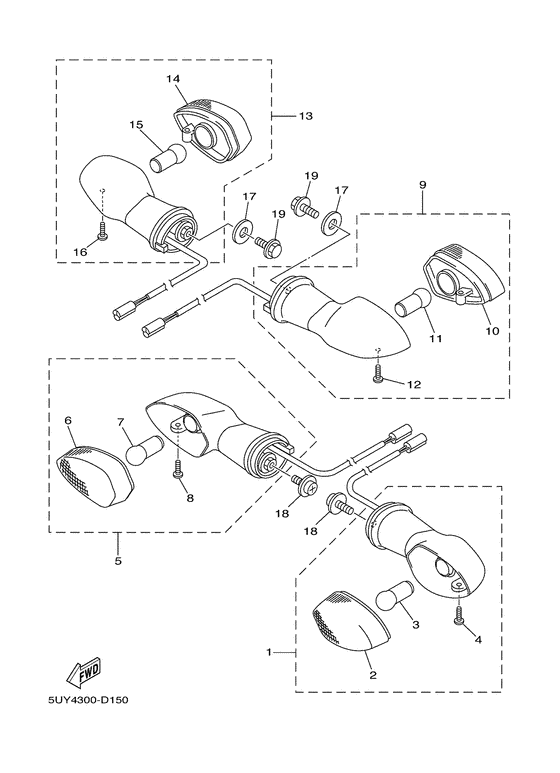

Flasher light Diagram Yamaha EA06 Passol
- Year
- 2005
- Colour
- Vivid Orange Solid 1 (VOS1; 0905)
- Model code
- 5UY4
- Sales region
- France (050)
- Engine Capacity
- 0
- Model
- EA06
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5UY-83310-10-00
Front flasher light assy 1
|
5UY-83310-10-00 |
— | ||
|
02
|
02
5PW-8333A-00-00 Lens Comp 1 |
5PW-8333A-00-00 |
US $24.09 |
||
|
03
|
03
5UY-83311-10-00
Bulb, flasher
|
5UY-83311-10-00 |
— | ||
|
04
|
04
977-06040-12-00
Screw, Tapping
|
977-06040-12-00 |
— | ||
| replacement | |||||
|
04
|
04
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
05
|
05
5UY-83320-10-00
Front flasher light assy 2
|
5UY-83320-10-00 |
— | ||
|
06
|
06
5PW-8334A-00-00 Lens Comp 2 |
5PW-8334A-00-00 |
US $24.09 |
||
|
07
|
07
5UY-83311-10-00
Bulb, flasher
|
5UY-83311-10-00 |
— | ||
|
08
|
08
977-06040-12-00
Screw, Tapping
|
977-06040-12-00 |
— | ||
| replacement | |||||
|
08
|
08
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
09
|
09
5UY-83330-10-00
Rear flasher light assy 1
|
5UY-83330-10-00 |
— | ||
|
10
|
10
5PW-8334A-00-00 Lens Comp 2 |
5PW-8334A-00-00 |
US $24.09 |
||
|
11
|
11
5UY-83311-10-00
Bulb, flasher
|
5UY-83311-10-00 |
— | ||
|
12
|
12
977-06040-12-00
Screw, Tapping
|
977-06040-12-00 |
— | ||
| replacement | |||||
|
12
|
12
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
13
|
13
5UY-83340-10-00
Rear flasher light assy 2
|
5UY-83340-10-00 |
— | ||
|
14
|
14
5PW-8333A-00-00 Lens Comp 1 |
5PW-8333A-00-00 |
US $24.09 |
||
|
15
|
15
5UY-83311-10-00
Bulb, flasher
|
5UY-83311-10-00 |
— | ||
|
16
|
16
977-06040-12-00
Screw, Tapping
|
977-06040-12-00 |
— | ||
| replacement | |||||
|
16
|
16
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
17
|
17
90201-086P8-00 Washer, Plate(3Xp) |
90201-086P8-00 |
from US $1.81 |
||
|
18
|
18
901-59050-83-00
Screw, With Washer
|
901-59050-83-00 |
— | ||
| replacement | |||||
|
18
|
18
90159-05056-00 Screw, With Washer |
90159-05056-00 |
from US $1.84 |
||
|
19
|
19
90109-05007-00 Bolt |
90109-05007-00 |
from US $0.52 |
||
