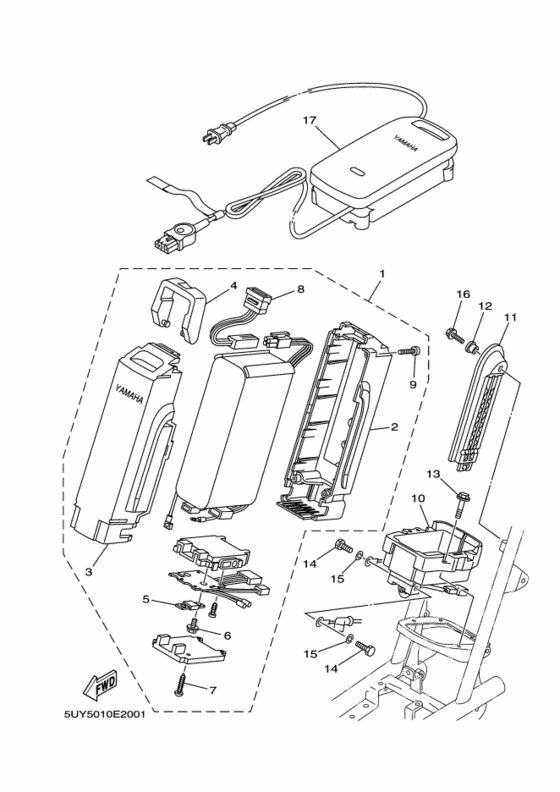

Electrical 1 Diagram Yamaha EA06 Passol-L
- Year
- 2006
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5UY5
- Sales region
- Japan (010)
- Engine Capacity
- 0
- Color Variant
- A
- Model
- EA06
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D2-8212A-00-00
Battery Box Assy (Cannot be supplied)
|
3D2-8212A-00-00 |
— | ||
|
2
|
2
5UY-8212X-02-00 Battery Box Comp |
5UY-8212X-02-00 |
US $49.32 |
||
| replacement | |||||
|
2
|
2
999-99035-19-00
Battery Box Assy
|
999-99035-19-00 |
— | ||
|
3
|
3
5UY-8212Y-02-00 Battery Box Compバッテリボックス コンプリート; |
5UY-8212Y-02-00 |
US $54.85 |
||
|
4
|
4
5UY-8214A-00-00 Grip, Battery |
5UY-8214A-00-00 |
US $8.66 |
||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
5UY-82151-00-00 Fuse (80A)フユーズ ; ８０Ａ |
5UY-82151-00-00 |
US $18.51 |
||
|
6
|
6
5UY-82113-00-00 Screw |
5UY-82113-00-00 |
US $2.27 |
||
|
7
|
7
97707-30514-00 Screw, Tapping |
97707-30514-00 |
from US $2.27 |
||
|
8
|
8
5UY-87239-00-00 Receptacle Compレセプタクルコンプリート; |
5UY-87239-00-00 |
US $32.90 |
||
|
9
|
9
5AT-82133-00-00 Screw, Fitting |
5AT-82133-00-00 |
US $0.95 |
||
|
10
|
10
5UY-82102-00-00 Battery Seat Assy |
5UY-82102-00-00 |
US $173.54 |
||
|
11
|
11
5UY-82164-00-00 Case 2ケース ２; |
5UY-82164-00-00 |
US $27.76 |
||
|
12
|
12
90387-050X4-00 Collarカラー; |
90387-050X4-00 |
from US $5.24 |
||
|
13
|
13
95027-06030-00 Bolt, Flangeボルト，フランジ; |
95027-06030-00 |
from US $1.52 |
||
|
14
|
14
901-53060-29-00
Screw, Tapping
|
901-53060-29-00 |
— | ||
| replacement | |||||
|
14
|
14
90163-06002-00 Screw, Tapping |
90163-06002-00 |
from US $4.25 |
||
|
15
|
15
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.88 |
||
|
16
|
16
90119-05009-00 Bolt, With Washer |
90119-05009-00 |
from US $2.08 |
||
|
17
|
17
3D2-82107-01-00
Charger, Battery
チヤージヤー， バツテリー; |
3D2-82107-01-00 |
— | ||
