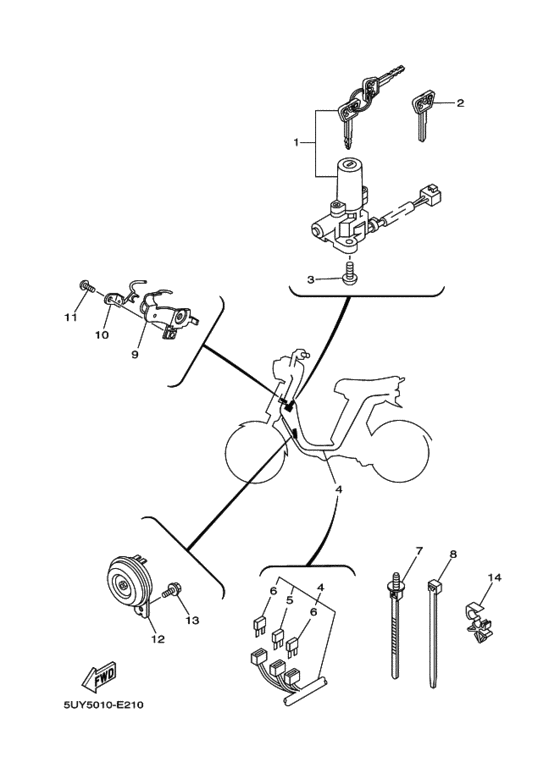

Electrical 2 Diagram Yamaha EA06 Passol-L
- Year
- 2006
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5UY5
- Sales region
- Japan (010)
- Engine Capacity
- 0
- Color Variant
- A
- Model
- EA06
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5UY-82021-00-00 Key SetＡＰ |
5UY-82021-00-00 |
US $190.66 |
||
|
1
|
1
5UY-82501-00-00 Main Switch Steering Lockメインスイツチステアリングロツ; |
5UY-82501-00-00 |
US $103.48 |
||
|
2
|
2
4BH-82511-09-00 Blank KeyＡＰ |
4BH-82511-09-00 |
from US $12.35 |
||
|
3
|
3
90149-08002-00 Screw |
90149-08002-00 |
from US $1.84 |
||
|
4
|
4
5UY-82590-40-00 Wire Harness Assyワイヤハーネスアセンブリ; |
5UY-82590-40-00 |
US $230.91 |
||
|
5
|
5
5JJ-82151-00-00 Fuse (7.5A-Bl)．フユーズ ; ７．５Ａ−ＢＬ |
5JJ-82151-00-00 |
from US $3.38 |
||
|
6
|
6
5JJ-82151-50-00 Fuse (3A)．フユーズ ; ３Ａ−ＢＬ |
5JJ-82151-50-00 |
from US $3.74 |
||
| replacement | |||||
|
6
|
6
67F-82151-30-00 Fuse (3A)．フユーズ ; ３Ａ−ＢＬ |
67F-82151-30-00 |
from US $2.50 |
||
|
7
|
7
90464-31001-00 Clamp |
90464-31001-00 |
from US $2 |
||
| replacement | |||||
|
7
|
7
90464-20005-00 Clamp |
90464-20005-00 |
from US $2.55 |
||
|
8
|
8
90465-13152-00 Band |
90465-13152-00 |
from US $1.28 |
||
| replacement | |||||
|
8
|
8
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
9
|
9
5UY-21397-10-00 Guide, Wire Harnessガイド，ワイヤハーネス; |
5UY-21397-10-00 |
US $21.82 |
||
|
10
|
10
5UY-21337-10-00 Clamp, Cableクランプ，ケーブル; |
5UY-21337-10-00 |
US $22.10 |
||
|
11
|
11
92017-06010-00 Bolt, Button Head |
92017-06010-00 |
from US $1.56 |
||
|
12
|
12
5UY-83371-00-00 Hornホーン; |
5UY-83371-00-00 |
US $71.71 |
||
|
13
|
13
95027-06008-00 Bolt, Flangeボルト，フランジ; |
95027-06008-00 |
from US $1.52 |
||
|
14
|
14
5UY-81444-00-00 Clamp, Lead 2クランプ，リード ２; |
5UY-81444-00-00 |
from US $1.40 |
||
