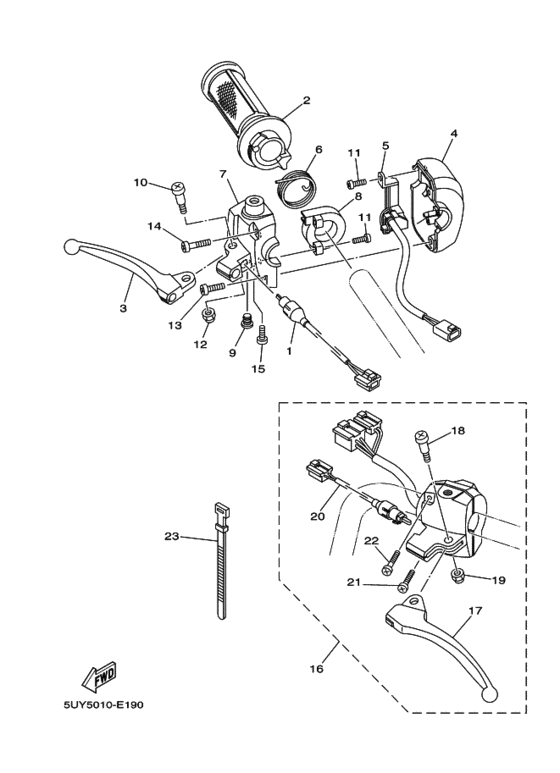

Handle switch & lever Diagram Yamaha EA06 Passol-L
- Year
- 2006
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5UY5
- Sales region
- Japan (010)
- Engine Capacity
- 0
- Color Variant
- A
- Model
- EA06
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5UY-83980-00-00 Front Stop Switch Assyフロントストツプスイツチアセン; |
5UY-83980-00-00 |
US $24.79 |
||
|
2
|
2
3D2-26240-00-00 Grip Assy |
3D2-26240-00-00 |
US $26.21 |
||
|
3
|
3
2T4-83922-02-00 Lever 2レバー ２; |
2T4-83922-02-00 |
US $13.45 |
||
| replacement | |||||
|
3
|
3
2T4-83922-03-00 Lever 2レバー ２; |
2T4-83922-03-00 |
from US $9.44 |
||
|
4
|
4
5UY-82912-00-00 Holder, Lever Upper 1ホルダ，レバーアツパ １; |
5UY-82912-00-00 |
US $35.37 |
||
|
5
|
5
5UY-8332C-00-00 Holder Compホルダコンプリート; |
5UY-8332C-00-00 |
US $190.66 |
||
|
6
|
6
3D2-81855-00-00 Spring, Brush |
3D2-81855-00-00 |
US $7.65 |
||
|
7
|
7
3D2-82913-00-00 Holder, Lever Lower 1ホルダ，レバーロワ １; |
3D2-82913-00-00 |
US $39.24 |
||
|
8
|
8
3D2-81838-00-00 Holder, Spring |
3D2-81838-00-00 |
US $8.50 |
||
|
9
|
9
90338-10150-00 Plug |
90338-10150-00 |
from US $1.81 |
||
|
10
|
10
90149-06175-00 Screw |
90149-06175-00 |
from US $3.54 |
||
|
11
|
11
98907-03010-00 Screw, Bind |
98907-03010-00 |
from US $0.25 |
||
|
12
|
12
95707-05300-00 Nut, Flangeナツト，フランジ; |
95707-05300-00 |
from US $1.42 |
||
|
13
|
13
985-07050-20-00
Screw, Pan Head(4My)
スクリユ，パンヘツド; |
985-07050-20-00 |
— | ||
| replacement | |||||
|
13
|
13
98517-05020-00 Screw, Pan Headスクリユ，パンヘツド; |
98517-05020-00 |
from US $1.70 |
||
|
14
|
14
985-07050-30-00
Screw, Pan Head
スクリユ，パンヘツド; |
985-07050-30-00 |
— | ||
| replacement | |||||
|
14
|
14
98517-05030-00 Screw, Pan Headスクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
15
|
15
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
15
|
15
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
16
|
16
5UY-82910-10-00 Lever Holder Assy (Left)レバーホルダアセンブリ ; レフト |
5UY-82910-10-00 |
US $190.66 |
||
|
17
|
17
2T4-83912-02-00 Lever 1．レバー １; |
2T4-83912-02-00 |
US $14.43 |
||
| replacement | |||||
|
17
|
17
2T4-83912-03-00 Lever 1．レバー １; |
2T4-83912-03-00 |
from US $9.44 |
||
|
18
|
18
90149-06175-00 Screw．スクリユ; |
90149-06175-00 |
from US $3.54 |
||
|
19
|
19
95707-05300-00 Nut, Flange．ナツト，フランジ; |
95707-05300-00 |
from US $1.42 |
||
|
20
|
20
5UY-83980-00-00 Front Stop Switch Assy．フロントストツプスイツチアセン; |
5UY-83980-00-00 |
US $24.79 |
||
|
21
|
21
985-07050-20-00
Screw, Pan Head(4My)
．スクリユ，パンヘツド; |
985-07050-20-00 |
— | ||
| replacement | |||||
|
21
|
21
98517-05020-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05020-00 |
from US $1.70 |
||
|
22
|
22
985-07050-30-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-07050-30-00 |
— | ||
| replacement | |||||
|
22
|
22
98517-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
23
|
23
437-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-01-00 |
from US $1.81 |
||
