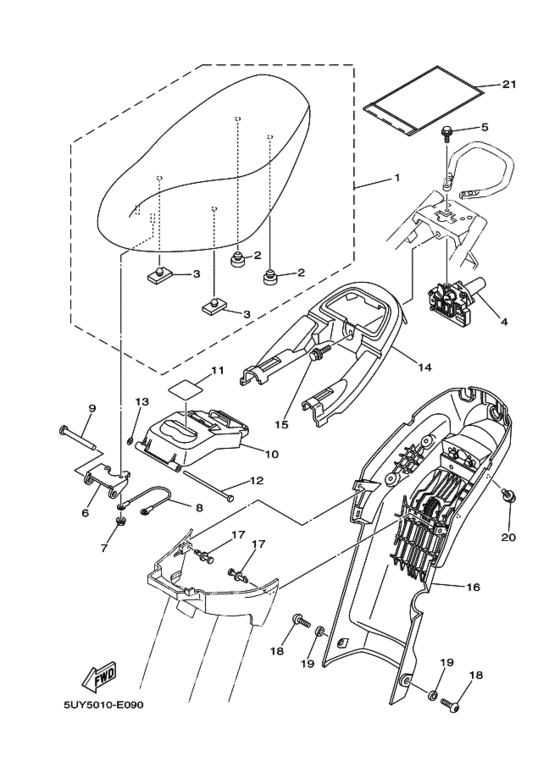

Sheet & Carrier Diagram Yamaha EA06 Passol-L
- Year
- 2006
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5UY5
- Sales region
- Japan (010)
- Engine Capacity
- 0
- Color Variant
- A
- Model
- EA06
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5UY-24710-10-00 Single Seat Assyシングルシートアセンブリ; |
5UY-24710-10-00 |
US $162.07 |
||
|
2
|
2
22W-24741-00-00 Pad, Seat．パツド，シート; |
22W-24741-00-00 |
from US $2.36 |
||
|
3
|
3
509-24724-00-00 Damper, Seat．ダンパ，シート; |
509-24724-00-00 |
from US $5.68 |
||
|
4
|
4
5UY-24705-00-00 Seat Lock Assyシートロツクアセンブリ; |
5UY-24705-00-00 |
US $56.51 |
||
|
5
|
5
95807-06020-00 Bolt, Flange |
95807-06020-00 |
from US $1.25 |
||
| replacement | |||||
|
5
|
5
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
6
|
6
5UY-24726-00-00 Hinge, Seatヒンジ，シート; |
5UY-24726-00-00 |
US $5.81 |
||
|
7
|
7
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
7
|
7
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
8
|
8
5UY-2473J-01-00 Wire |
5UY-2473J-01-00 |
from US $11.05 |
||
| replacement | |||||
|
8
|
8
5UY-2473J-02-00 Wire |
5UY-2473J-02-00 |
from US $11.05 |
||
|
9
|
9
90241-10017-00 Pinピン; |
90241-10017-00 |
from US $4.84 |
||
| replacement | |||||
|
9
|
9
90241-10X00-00
Pin
ピン; |
90241-10X00-00 |
— | ||
|
10
|
10
5UY-2478A-00-00 Lid Assy |
5UY-2478A-00-00 |
US $36.42 |
||
|
11
|
11
5UY-2415A-00-00
Label, Caution
ラベル，コーシヨン; |
5UY-2415A-00-00 |
— | ||
|
12
|
12
5UY-8253A-00-00 Shaft |
5UY-8253A-00-00 |
US $5.44 |
||
|
13
|
13
90183-04047-00 Nut, Spring |
90183-04047-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90183-04005-00 Nut Spring 116283170100 |
90183-04005-00 |
from US $1.70 |
||
|
14
|
14
5UY-2177B-00-00 Lid, Cover |
5UY-2177B-00-00 |
US $18.94 |
||
|
15
|
15
90119-06108-00 Bolt, With Washer |
90119-06108-00 |
from US $1.28 |
||
| replacement | |||||
|
15
|
15
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
16
|
16
5UY-24756-00-00
Cover, Tail
カバー，テール; |
5UY-24756-00-00 |
— | ||
|
17
|
17
90269-05049-00 Rivet |
90269-05049-00 |
from US $2.08 |
||
|
18
|
18
90110-06102-00 Bolt, Hexagon Socket Headボルト，ヘキサゴンソケツトヘツ; |
90110-06102-00 |
from US $1.81 |
||
|
19
|
19
90201-06040-00 Washer, Plateワツシヤ，プレート; |
90201-06040-00 |
from US $2.69 |
||
|
20
|
20
90119-06108-00 Bolt, With Washer |
90119-06108-00 |
from US $1.28 |
||
| replacement | |||||
|
20
|
20
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
21
|
21
5UY-28186-00-00
Pouch
ポーチ; |
5UY-28186-00-00 |
— | ||
