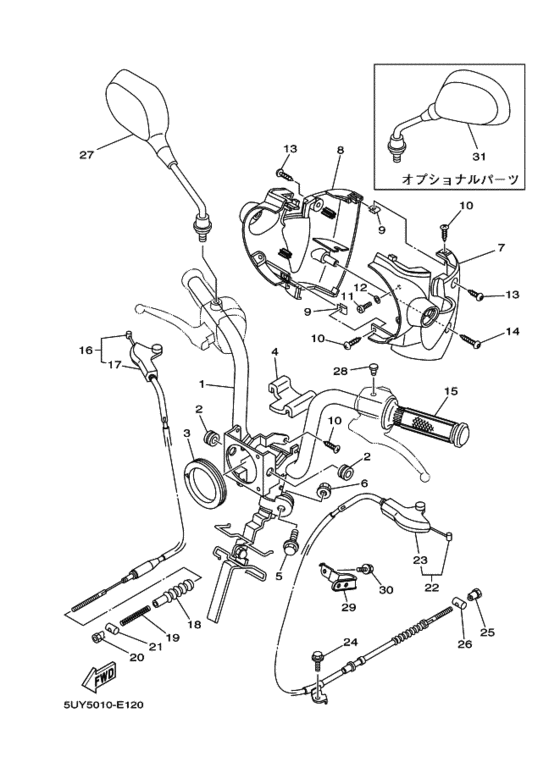

Steering handle & cable Diagram Yamaha EA06 Passol-L
- Year
- 2006
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5UY5
- Sales region
- Japan (010)
- Engine Capacity
- 0
- Color Variant
- A
- Model
- EA06
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5UY-26110-10-00
Handle Comp
ハンドルコンプリート; |
5UY-26110-10-00 |
— | ||
|
2
|
2
90480-15397-00 Grommet |
90480-15397-00 |
from US $2.41 |
||
|
3
|
3
5UY-26288-00-00 Grommet, Cableグロメツト，ケーブル; |
5UY-26288-00-00 |
US $5.58 |
||
|
4
|
4
5UY-26113-00-00 Damper |
5UY-26113-00-00 |
US $2.79 |
||
|
5
|
5
90105-10036-00 Bolt, Flangeボルト，フランジ; |
90105-10036-00 |
from US $4.25 |
||
|
6
|
6
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
7
|
7
5UY-26143-00-00 Cover, Handle Upper 1カバー，ハンドルバーアツパ １; |
5UY-26143-00-00 |
US $21.82 |
||
|
8
|
8
5UY-26145-00-00 Cover, Handle Upper 2カバー，ハンドルバーアツパ ２; |
5UY-26145-00-00 |
US $21.82 |
||
|
9
|
9
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
10
|
10
97707-50014-00 Screw, Truss Head Tappingスクリユ，トラスヘツドタツピン; |
97707-50014-00 |
from US $1.52 |
||
|
11
|
11
985-07050-14-00 Screw, Pan Headスクリユ，パンヘツド; |
985-07050-14-00 |
from US $1.42 |
||
|
12
|
12
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.18 |
||
|
13
|
13
90167-05079-00 Screw, Tapping |
90167-05079-00 |
from US $1.66 |
||
|
14
|
14
90160-05004-00 Screw, Round Tapping |
90160-05004-00 |
US $2.13 |
||
|
15
|
15
3RY-26241-02-00 Grip (Left)グリツプ ; レフト |
3RY-26241-02-00 |
from US $11.02 |
||
|
16
|
16
5UY-26341-01-00 Wire, Brake 1ケーブル，ブレーキ; |
5UY-26341-01-00 |
US $32.30 |
||
|
17
|
17
3YJ-2637A-00-00 Cover, Handle Lever 2カバー，ハンドルレバー ２; |
3YJ-2637A-00-00 |
from US $7.54 |
||
|
18
|
18
3KJ-26342-00-00 Boot, Cableブーツ，ケーブル; |
3KJ-26342-00-00 |
from US $4.88 |
||
|
19
|
19
90501-120A2-00 Spring, Compression |
90501-120A2-00 |
US $1.98 |
||
|
20
|
20
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
21
|
21
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
22
|
22
5UY-26351-10-00 Cable, Brakeケーブル，ブレーキ; |
5UY-26351-10-00 |
US $100.54 |
||
|
23
|
23
3YJ-26372-00-00 Cover, Handle Lever 1カバー，ハンドルレバー １; |
3YJ-26372-00-00 |
from US $8.93 |
||
|
24
|
24
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
24
|
24
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
25
|
25
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
26
|
26
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
27
|
27
3YK-26290-00-00 Rear View Mirror Assy (Right)バツクミラーアセンブリ ; ライト |
3YK-26290-00-00 |
from US $24.65 |
||
|
28
|
28
90338-07124-00 Plug |
90338-07124-00 |
from US $2.13 |
||
|
29
|
29
5UY-2627E-01-00 Clamp, Wire |
5UY-2627E-01-00 |
US $4.41 |
||
|
30
|
30
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
30
|
30
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
31
|
31
3YK-26280-00-00 Rear View Mirror Assy (Left)バツクミラーアセンブリ ; レフト; ＡＰ |
3YK-26280-00-00 |
from US $24.65 |
||
