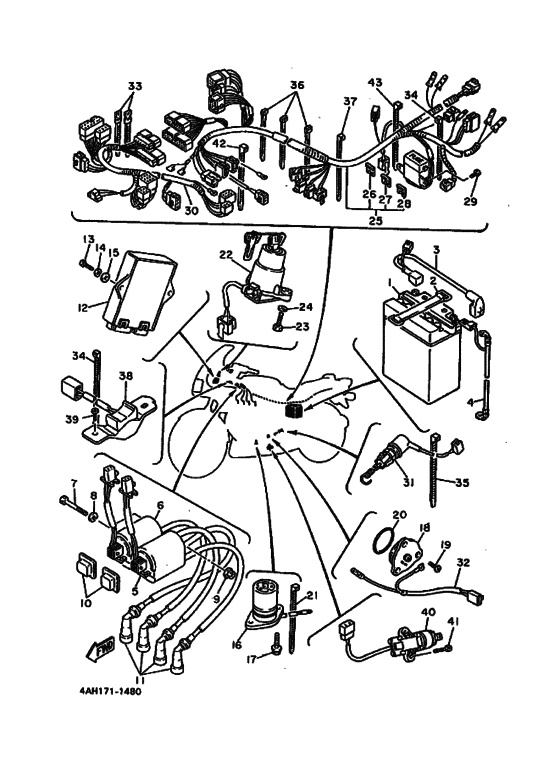

Electrical 2 Diagram Yamaha FJ1200
- Year
- 1992
- Colour
- Marble Silver (MAS; 000L)
- Model code
- 4AH6
- Sales region
- Europe (010)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- FJ1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3XW-82100-00-00
Battery Assy (Ytx14-Bs)
|
3XW-82100-00-00 |
— | ||
| replacements | |||||
|
1
|
1
YTX-14BS0-00-00
Ytx14Bs Yuasa Battery -Sa
|
YTX-14BS0-00-00 |
— | ||
|
1
|
1
GTX-14BS0-00-00
CB12A-A GS BATTERY
|
GTX-14BS0-00-00 |
— | ||
|
2
|
2
2T4-82131-00-00 Band, Battery |
2T4-82131-00-00 |
from US $9.78 |
||
|
3
|
3
3XW-82115-00-00
Wire, Plus Lead
|
3XW-82115-00-00 |
— | ||
| replacement | |||||
|
3
|
3
12R-82115-00-00
Wire, Plus Lead (15R-82115-00)
|
12R-82115-00-00 |
— | ||
|
4
|
4
3XW-82116-00-00
Wire, Minus Lead
|
3XW-82116-00-00 |
— | ||
|
5
|
5
3CV-82310-00-00
Ignition Coil Asy
|
3CV-82310-00-00 |
— | ||
| replacement | |||||
|
5
|
5
1WG-82310-09-00 Ignition Coil Assy |
1WG-82310-09-00 |
from US $200.13 |
||
|
6
|
6
3CV-82320-00-00
Ignition Coil Asy
|
3CV-82320-00-00 |
— | ||
| replacement | |||||
|
6
|
6
1WG-82310-09-00 Ignition Coil Assy |
1WG-82310-09-00 |
from US $200.13 |
||
|
7
|
7
973-13060-70-00
Nut (97301-06070)
|
973-13060-70-00 |
— | ||
| replacement | |||||
|
7
|
7
97013-06070-00 Bolt |
97013-06070-00 |
from US $3.64 |
||
|
8
|
8
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
9
|
9
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
10
|
10
4U8-82317-00-00 Damper, Ignition Coil |
4U8-82317-00-00 |
from US $5.38 |
||
|
11
|
11
4G0-82370-21-00 Plug Cap Assy |
4G0-82370-21-00 |
from US $19.69 |
||
| replacements | |||||
|
11
|
11
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $24.92 |
||
|
11
|
11
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $21.77 |
||
|
12
|
12
3CV-82305-01-00
Ignitor Unit Assy
|
3CV-82305-01-00 |
— | ||
|
13
|
13
92502-06014-00 Screw, Pan Head |
92502-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
14
|
14
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
16
|
16
4H7-95720-01-00
Oil Level Gauge Assy
|
4H7-95720-01-00 |
— | ||
|
17
|
17
950-26060-16-00
Bolt, Flange
|
950-26060-16-00 |
— | ||
| replacement | |||||
|
17
|
17
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.64 |
||
|
18
|
18
1L9-82540-00-00 Neutral Switch Assy |
1L9-82540-00-00 |
from US $14.82 |
||
|
19
|
19
98701-05012-00 Screw, Countersunk |
98701-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
19
|
19
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $2.21 |
||
|
20
|
20
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.81 |
||
|
21
|
21
90465-13169-00 Band |
90465-13169-00 |
from US $1.28 |
||
| replacement | |||||
|
21
|
21
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
22
|
22
3LK-82501-00-00 Main Switch Steering Lock |
3LK-82501-00-00 |
from US $116.17 |
||
| replacement | |||||
|
22
|
22
3JV-82501-00-00 Main Switch Steering Lock |
3JV-82501-00-00 |
US $237.74 |
||
|
23
|
23
97021-06016-00 Bolt(1Kh) |
97021-06016-00 |
from US $1.28 |
||
| replacements | |||||
|
23
|
23
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
23
|
23
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
23
|
23
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
24
|
24
92990-06500-00
Washer
|
92990-06500-00 |
— | ||
|
25
|
25
4AH-82590-10-00
Wire Harness Assy
|
4AH-82590-10-00 |
— | ||
|
26
|
26
1AE-82151-00-00 Fuse (30A-Bl)12V 30A |
1AE-82151-00-00 |
from US $2.02 |
||
|
27
|
27
36Y-82151-00-00 Fuse (15A-Blue)12V-1~A |
36Y-82151-00-00 |
from US $2.86 |
||
|
28
|
28
42X-82151-00-00 Fuse (10A-Bl)10A |
42X-82151-00-00 |
from US $1.66 |
||
|
29
|
29
97702-50014-00 Screw, Truss Head Tapping |
97702-50014-00 |
from US $1.52 |
||
| replacement | |||||
|
29
|
29
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.52 |
||
|
30
|
30
4AH-82580-10-00
Wire Harness Assy 2
|
4AH-82580-10-00 |
— | ||
|
31
|
31
3XW-82530-00-00
Stop Switch Assy
|
3XW-82530-00-00 |
— | ||
| replacement | |||||
|
31
|
31
3XW-82530-01-00
Stop Switch Assembly
|
3XW-82530-01-00 |
— | ||
|
32
|
32
3XW-82509-00-00
Wire, Sub Lead
|
3XW-82509-00-00 |
— | ||
|
33
|
33
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
34
|
34
904-55131-69-00
Clamp
|
904-55131-69-00 |
— | ||
|
35
|
35
90464-35132-00 Clamp |
90464-35132-00 |
from US $1.42 |
||
|
36
|
36
904-64141-17-00
Clamp
|
904-64141-17-00 |
— | ||
| replacement | |||||
|
36
|
36
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
37
|
37
90464-20044-00 Clamp |
90464-20044-00 |
from US $1.56 |
||
| replacement | |||||
|
37
|
37
90464-20258-00 Clamp |
90464-20258-00 |
from US $1.66 |
||
|
38
|
38
1AE-83964-00-00 Switch |
1AE-83964-00-00 |
US $61.52 |
||
| replacement | |||||
|
38
|
38
3TJ-83964-10-00 Switch |
3TJ-83964-10-00 |
US $61.52 |
||
|
39
|
39
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
40
|
40
3XW-82566-00-00 Switch, Side Stand |
3XW-82566-00-00 |
from US $61.20 |
||
| replacements | |||||
|
40
|
40
3LD-82566-B0-00 Switch, Side Stand |
3LD-82566-B0-00 |
from US $51.19 |
||
|
40
|
40
3LD-82566-B1-00 Switch, Side Stand |
3LD-82566-B1-00 |
US $57.96 |
||
|
41
|
41
90157-06079-00
Screw, Pan Head
|
90157-06079-00 |
— | ||
|
42
|
42
904-54130-73-00
Clamp
|
904-54130-73-00 |
— | ||
|
43
|
43
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
43
|
43
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
