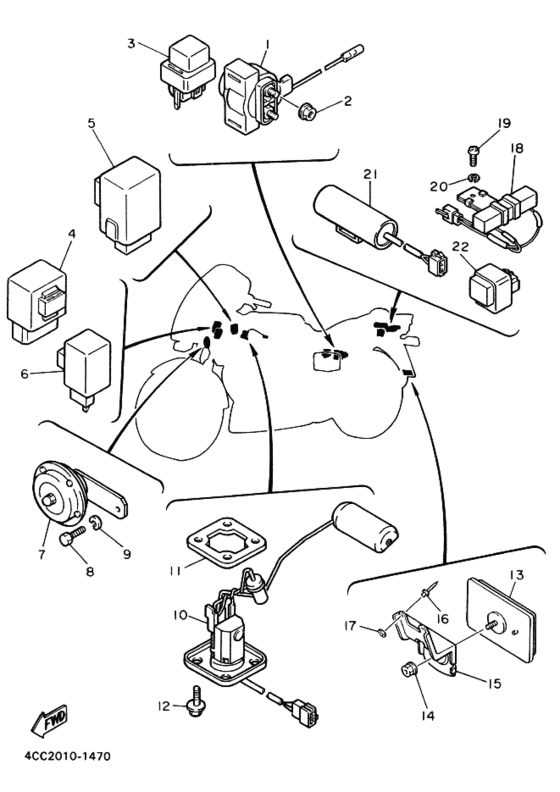

Electrical 1 Diagram Yamaha FJ1200
- Year
- 1991
- Colour
- Silky White (SW; 00GE)
- Model code
- 4CC2
- Sales region
- Japan (010)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- FJ1200A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36Y-81940-00-00 Starter Relay Assyスタータリレーアセンブリ; |
36Y-81940-00-00 |
from US $87.73 |
||
|
2
|
2
957-01065-00-00
Nut, Flange(34M)
ナツト、フランジ; |
957-01065-00-00 |
— | ||
| replacement | |||||
|
2
|
2
95780-06500-00 Nut, Flangeナツト、フランジ; |
95780-06500-00 |
from US $1.25 |
||
|
3
|
3
3YA-82150-00-00 Fuse Holder Assemblyフユーズホルダアセンブリ; |
3YA-82150-00-00 |
US $40.54 |
||
|
4
|
4
2UJ-81950-00-00 Relay Assy (2Uj-00)リレーアセンブリ; |
2UJ-81950-00-00 |
from US $73.64 |
||
| replacements | |||||
|
4
|
4
2UJ-81950-01-00 リレーアセンブリ; |
2UJ-81950-01-00 |
from US $73.64 |
||
|
4
|
4
2UJ-81950-02-00 Relay Assyリレーアセンブリ; |
2UJ-81950-02-00 |
US $73.04 |
||
|
5
|
5
3GM-81950-10-00
Relay Assembly
リレーアセンブリ; |
3GM-81950-10-00 |
— | ||
|
6
|
6
3YA-83350-00-00 Flasher Relay Assemblyフラツシヤリレーアセンブリ; ＵＲ |
3YA-83350-00-00 |
from US $75.16 |
||
|
6
|
6
3YA-83350-10-00
Flasher Relay Assembly
フラツシヤリレーアセンブリ; ＵＲ |
3YA-83350-10-00 |
— | ||
| replacement | |||||
|
6
|
6
3YA-83350-00-00 Flasher Relay Assemblyフラツシヤリレーアセンブリ; ＵＲ |
3YA-83350-00-00 |
from US $75.16 |
||
|
7
|
7
4V8-83371-20-00 Hornホーン; |
4V8-83371-20-00 |
US $112.95 |
||
|
8
|
8
970-16080-16-00
Bolt
|
970-16080-16-00 |
— | ||
| replacement | |||||
|
8
|
8
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
9
|
9
929-06081-00-00
Washer, Spring
ワツシヤ、スプリング; |
929-06081-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92907-08100-00 Washer, Springワツシヤ、スプリング; |
92907-08100-00 |
from US $0.85 |
||
|
10
|
10
36Y-85752-03-00
Sender Unit Assembly, Fuel Mete
センダユニツトアセンブリ、フユエルメータ; |
36Y-85752-03-00 |
— | ||
|
11
|
11
5G3-85753-00-00 Gasket, Sender Unitガスケツト、センダユニツト; |
5G3-85753-00-00 |
from US $7.07 |
||
|
12
|
12
901-19050-71-00 Bolt, With Washerボルト、ウイズワツシヤ; |
901-19050-71-00 |
from US $1.84 |
||
|
13
|
13
3G1-85130-01-00
Rear Reflector Assy
|
3G1-85130-01-00 |
— | ||
| replacement | |||||
|
13
|
13
4KM-85130-00-00 Rear Reflector Assy |
4KM-85130-00-00 |
from US $13.18 |
||
|
14
|
14
957-01055-00-00
Nut, Flange
ナツト、フランジ; |
957-01055-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95707-05500-00 Nut, Flangeナツト、フランジ; |
95707-05500-00 |
from US $1.07 |
||
|
15
|
15
47M-85132-00-00
Bracket, Reflector 1
ブラケツト、リフレクタ １; |
47M-85132-00-00 |
— | ||
|
16
|
16
90267-32070-00 Rivet, Blindリベツト、ブラインド; |
90267-32070-00 |
from US $2.13 |
||
|
17
|
17
92990-03200-00 Washer, Plainワツシヤ、プレーン; |
92990-03200-00 |
from US $0.47 |
||
|
18
|
18
3KS-85370-00-00 Resistor Assemblyレジスターアセンブリ; |
3KS-85370-00-00 |
US $94.86 |
||
|
19
|
19
98501-06010-00 Screw Pan Headスクリユ、パンヘツド; |
98501-06010-00 |
US $1.42 |
||
| replacement | |||||
|
19
|
19
985-80060-10-00 Screw, Pan Head (92503-06010-00スクリユ、パンヘツド; |
985-80060-10-00 |
from US $1.42 |
||
|
20
|
20
929-90061-00-00
Washer, Spring
ワツシヤ、スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
20
|
20
929-95061-00-00 Washer, Springワツシヤ、スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
1NL-81965-00-00 Condenser, Smoothingコンテンサ; |
1NL-81965-00-00 |
from US $122.13 |
||
| replacement | |||||
|
21
|
21
1NL-81965-01-00 Condenser, Smoothingコンテンサ; |
1NL-81965-01-00 |
from US $121.72 |
||
|
22
|
22
25G-81950-01-00 Relay Assy (25G-01)リレーアセンブリ; |
25G-81950-01-00 |
from US $34.43 |
||
| replacement | |||||
|
22
|
22
25G-81950-02-00 реле в сборереле в сборе リレーアセンブリ; |
25G-81950-02-00 |
from US $33.05 |
||
