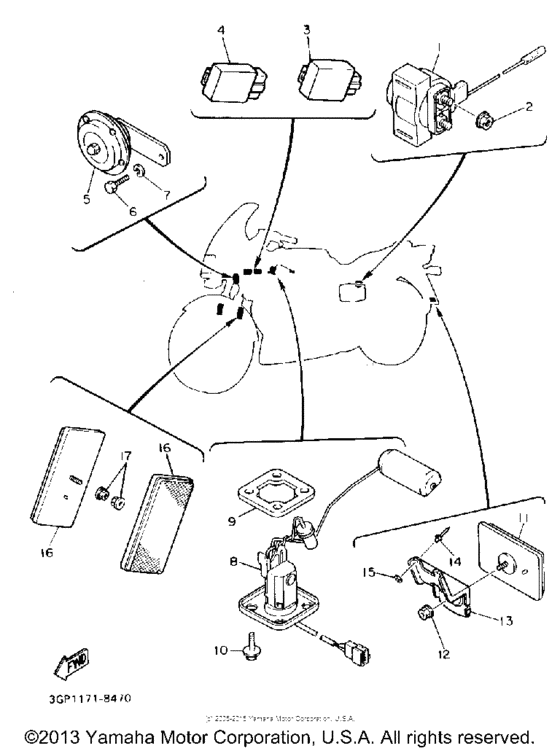

Electrical (1) Diagram Yamaha FJ1200
- Year
- 1992
- Sales region
- USA
- Engine Capacity
- 1200
- Model
- FJ1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36Y-81940-00-00 Starter Relay Assy |
36Y-81940-00-00 |
from US $87.73 |
||
|
2
|
2
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
2
|
2
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
3
|
3
2UJ-81950-00-00 Relay Assy (2Uj-00)2UJ-00 |
2UJ-81950-00-00 |
from US $73.64 |
||
| replacements | |||||
|
3
|
3
2UJ-81950-01-00 2UJ-00 |
2UJ-81950-01-00 |
from US $73.64 |
||
|
3
|
3
2UJ-81950-02-00 Relay Assy2UJ-00 |
2UJ-81950-02-00 |
US $73.04 |
||
|
4
|
4
3YA-83350-00-00 Flasher Relay AssemblyUR |
3YA-83350-00-00 |
from US $75.16 |
||
|
4
|
4
3YA-83350-10-00
Flasher Relay Assembly
UR |
3YA-83350-10-00 |
— | ||
| replacement | |||||
|
4
|
4
3YA-83350-00-00 Flasher Relay AssemblyUR |
3YA-83350-00-00 |
from US $75.16 |
||
|
5
|
5
4V8-83371-20-00 Horn |
4V8-83371-20-00 |
US $112.95 |
||
|
6
|
6
970-16080-16-00
Bolt
|
970-16080-16-00 |
— | ||
| replacement | |||||
|
6
|
6
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
7
|
7
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
8
|
8
36Y-85752-03-00
Sender Unit Assembly, Fuel Mete
|
36Y-85752-03-00 |
— | ||
|
9
|
9
5G3-85753-00-00 Gasket, Sender Unit |
5G3-85753-00-00 |
from US $7.07 |
||
|
10
|
10
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
11
|
11
3G1-85130-01-00
Rear Reflector Assy
|
3G1-85130-01-00 |
— | ||
| replacement | |||||
|
11
|
11
4KM-85130-00-00 Rear Reflector Assy |
4KM-85130-00-00 |
from US $13.18 |
||
|
12
|
12
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
13
|
13
47M-85132-00-00
Bracket, Reflector 1
|
47M-85132-00-00 |
— | ||
|
14
|
14
90267-32070-00 Rivet, Blind |
90267-32070-00 |
from US $2.13 |
||
|
15
|
15
92990-03200-00 Washer, Plain |
92990-03200-00 |
from US $0.47 |
||
|
16
|
16
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $12.46 |
||
|
17
|
17
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
17
|
17
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
