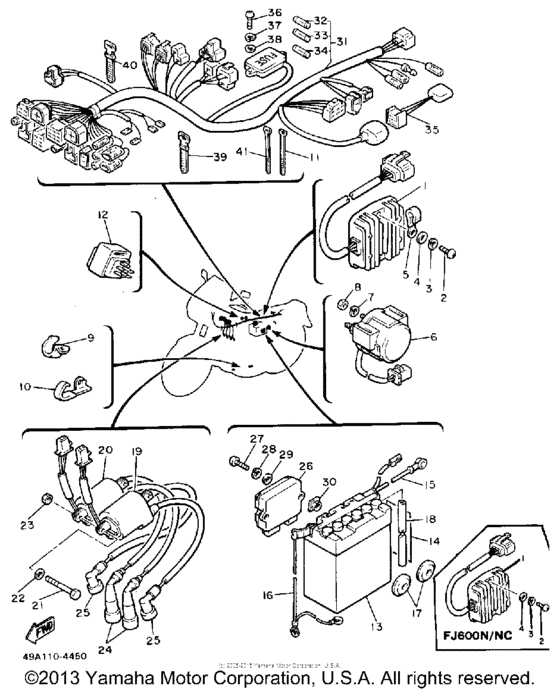

Electrical (1) Diagram Yamaha FJ600
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 600
- Model
- FJ600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12R-81960-A1-00
Rectifier/reg Assembly
|
12R-81960-A1-00 |
— | ||
| replacement | |||||
|
1
|
1
3G1-81960-A1-00 Rectifier/reg Assembly |
3G1-81960-A1-00 |
from US $333.68 |
||
|
2
|
2
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
2
|
2
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
4
|
4
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
4
|
4
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
5
|
5
90465-08135-00
Clamp
|
90465-08135-00 |
— | ||
|
6
|
6
3AY-81940-00-00
Starter Relay Assy (Ms5D-611)
|
3AY-81940-00-00 |
— | ||
| replacement | |||||
|
6
|
6
4KD-81940-00-00 Starter Relay Assy (Ms5D-611) |
4KD-81940-00-00 |
from US $97.54 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
8
|
8
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
9
|
9
90462-08078-00 Clamp |
90462-08078-00 |
from US $6.23 |
||
|
10
|
10
90462-08087-00 Clamp |
90462-08087-00 |
US $10.63 |
||
|
11
|
11
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
11
|
11
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
11
|
11
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
12
|
12
4U8-81950-02-00 Relay Assy (4U8-02)4U8-02 |
4U8-81950-02-00 |
from US $83.86 |
||
| replacement | |||||
|
12
|
12
4U8-81950-03-00 Relay Assy4U8-02 |
4U8-81950-03-00 |
from US $93.93 |
||
|
13
|
13
BTY-12N12-A4-A1
Yuasa 12N12A-4A-1 (366-82110-60
|
BTY-12N12-A4-A1 |
— | ||
| replacement | |||||
|
13
|
13
12N-12A4A-1Y-00
CB16CLB GS BATTERY
|
12N-12A4A-1Y-00 |
— | ||
|
14
|
14
118-82141-09-00
Label, Battery
|
118-82141-09-00 |
— | ||
| replacements | |||||
|
14
|
14
40A-82141-G0-00
Label, Battery
|
40A-82141-G0-00 |
— | ||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
33M-82115-00-00
Wire, Plus Lead
|
33M-82115-00-00 |
— | ||
| replacements | |||||
|
15
|
15
4BH-82115-00-00
Wire, Plus Lead
|
4BH-82115-00-00 |
— | ||
|
15
|
15
3TJ-82115-00-00
Wire, Plus Lead
|
3TJ-82115-00-00 |
— | ||
|
16
|
16
4G0-82116-00-00
Wire, Minus Lead
|
4G0-82116-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
371-82121-00-00 Pad, Battery |
371-82121-00-00 |
from US $4.39 |
||
|
18
|
18
90445-08348-00 Hose (L1500) |
90445-08348-00 |
from US $10.91 |
||
| replacement | |||||
|
18
|
18
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
19
|
19
33M-82310-60-00 Ignition Coil Asy |
33M-82310-60-00 |
from US $170.67 |
||
| replacement | |||||
|
19
|
19
1AA-82310-09-00 Ignition Coil Assy |
1AA-82310-09-00 |
from US $265.60 |
||
|
20
|
20
33M-82320-60-00 Ignition Coil Asy |
33M-82320-60-00 |
from US $170.67 |
||
| replacement | |||||
|
20
|
20
1AA-82310-09-00 Ignition Coil Assy |
1AA-82310-09-00 |
from US $265.60 |
||
|
21
|
21
973-01060-65-00 Bolt, Hexagon |
973-01060-65-00 |
from US $0.52 |
||
|
22
|
22
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
22
|
22
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
22
|
22
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
23
|
23
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
24
|
24
1UY-82370-20-00 Plug Cap Assy |
1UY-82370-20-00 |
from US $19.69 |
||
| replacements | |||||
|
24
|
24
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $24.92 |
||
|
24
|
24
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $21.77 |
||
|
25
|
25
55X-82370-00-00 Plug Cap Assy |
55X-82370-00-00 |
from US $32.87 |
||
| replacements | |||||
|
25
|
25
4BP-82370-00-00 Plug Cap Assy |
4BP-82370-00-00 |
from US $38.34 |
||
|
25
|
25
4BP-82370-01-00 PLUG CAP ASSY |
4BP-82370-01-00 |
from US $38.34 |
||
|
26
|
26
49A-82305-10-00
Ignitor Unit Assembly 1
|
49A-82305-10-00 |
— | ||
|
27
|
27
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
27
|
27
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
28
|
28
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
29
|
29
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
29
|
29
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
29
|
29
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
30
|
30
4G0-21736-00-00
Nut,plate
|
4G0-21736-00-00 |
— | ||
|
31
|
31
49A-82590-50-00
Wire Harness Assembly
|
49A-82590-50-00 |
— | ||
|
32
|
32
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
32
|
32
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
33
|
33
1A0-82161-00-00 Fuse (12V-20A)12V-20A 12V-20A |
1A0-82161-00-00 |
from US $11.96 |
||
|
34
|
34
2H7-82151-00-00 Fuse12V-30A |
2H7-82151-00-00 |
from US $4.82 |
||
|
35
|
35
4U8-81980-M0-00 Diode Assy |
4U8-81980-M0-00 |
from US $57.89 |
||
|
36
|
36
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
36
|
36
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
37
|
37
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
38
|
38
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
38
|
38
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
38
|
38
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
39
|
39
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
40
|
40
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
40
|
40
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
40
|
40
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
41
|
41
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
41
|
41
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
