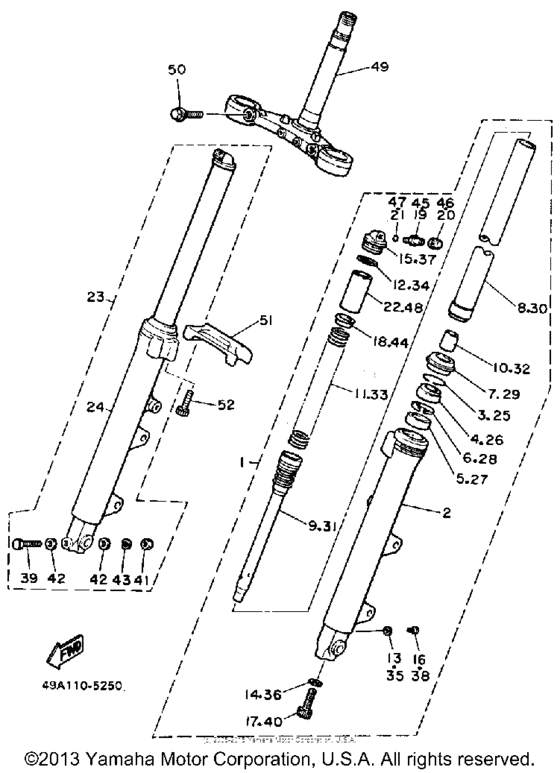

Front fork Diagram Yamaha FJ600
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 600
- Model
- FJ600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51K-23102-00-00
Front Fork Assy Lh
LH |
51K-23102-00-00 |
— | ||
|
2
|
2
33M-23126-00-00
Tube, Outer 1
|
33M-23126-00-00 |
— | ||
|
3
|
3
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
4
|
4
49A-23145-00-00 Oil Seal |
49A-23145-00-00 |
from US $15.44 |
||
| replacement | |||||
|
4
|
4
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.44 |
||
|
5
|
5
30X-23125-00-00 Metal, Slide 1 |
30X-23125-00-00 |
from US $29.13 |
||
|
6
|
6
5K5-23149-00-00 Washer, Spring Upper |
5K5-23149-00-00 |
from US $6.66 |
||
|
7
|
7
33M-23144-00-00 Seal, Dust (15R-23144-00)15R-23144-00 |
33M-23144-00-00 |
from US $29.36 |
||
|
8
|
8
33M-23110-00-00
Inner Tube 1 Comp. 1
COMP. 1 |
33M-23110-00-00 |
— | ||
|
9
|
9
49A-23170-00-00
Cylinder, Frtfrk
|
49A-23170-00-00 |
— | ||
|
10
|
10
26M-23173-00-00
Spindle, Taper
|
26M-23173-00-00 |
— | ||
|
11
|
11
51K-23141-00-00
Spring Front Fork
|
51K-23141-00-00 |
— | ||
|
12
|
12
1W1-23114-L0-00 Gasket |
1W1-23114-L0-00 |
from US $7.37 |
||
|
13
|
13
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
14
|
14
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
15
|
15
33M-23111-00-00
Bolt, Cap
|
33M-23111-00-00 |
— | ||
|
16
|
16
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
16
|
16
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
16
|
16
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
17
|
17
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
17
|
17
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
18
|
18
1W1-23142-L0-00
Seat, Spring Upper
|
1W1-23142-L0-00 |
— | ||
|
19
|
19
23X-23190-L0-00 Air Valve Comp |
23X-23190-L0-00 |
from US $49.74 |
||
|
20
|
20
24M-23184-00-00 Cap, Air Valve |
24M-23184-00-00 |
US $8.39 |
||
|
21
|
21
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
22
|
22
4V5-23118-L1-00 Spacer |
4V5-23118-L1-00 |
US $14.51 |
||
|
23
|
23
51K-23103-00-00
Front Fork As Rh
AS RH |
51K-23103-00-00 |
— | ||
|
24
|
24
33M-23136-00-00
Tube, Outer 2
|
33M-23136-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
26
|
26
49A-23145-00-00 Oil Seal |
49A-23145-00-00 |
from US $15.44 |
||
| replacement | |||||
|
26
|
26
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.44 |
||
|
27
|
27
30X-23125-00-00 Metal, Slide 1 |
30X-23125-00-00 |
from US $29.13 |
||
|
28
|
28
5K5-23149-00-00 Washer, Spring Upper |
5K5-23149-00-00 |
from US $6.66 |
||
|
29
|
29
33M-23144-00-00 Seal, Dust (15R-23144-00)15R-23144-00 |
33M-23144-00-00 |
from US $29.36 |
||
|
30
|
30
33M-23110-00-00
Inner Tube 1 Comp. 1
COMP. 1 |
33M-23110-00-00 |
— | ||
|
31
|
31
49A-23170-00-00
Cylinder, Frtfrk
|
49A-23170-00-00 |
— | ||
|
32
|
32
26M-23173-00-00
Spindle, Taper
|
26M-23173-00-00 |
— | ||
|
33
|
33
51K-23141-00-00
Spring Front Fork
|
51K-23141-00-00 |
— | ||
|
34
|
34
1W1-23114-L0-00 Gasket |
1W1-23114-L0-00 |
from US $7.37 |
||
|
35
|
35
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
36
|
36
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
37
|
37
33M-23111-00-00
Bolt, Cap
|
33M-23111-00-00 |
— | ||
|
38
|
38
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
38
|
38
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
38
|
38
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
39
|
39
4U8-23356-10-00 Bolt |
4U8-23356-10-00 |
from US $2.41 |
||
| replacement | |||||
|
39
|
39
97017-08060-00 Bolt |
97017-08060-00 |
from US $2.41 |
||
|
40
|
40
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
40
|
40
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
41
|
41
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
41
|
41
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
42
|
42
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
42
|
42
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
43
|
43
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
44
|
44
1W1-23142-L0-00
Seat, Spring Upper
|
1W1-23142-L0-00 |
— | ||
|
45
|
45
23X-23190-L0-00 Air Valve Comp |
23X-23190-L0-00 |
from US $49.74 |
||
|
46
|
46
24M-23184-00-00 Cap, Air Valve |
24M-23184-00-00 |
US $8.39 |
||
|
47
|
47
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
48
|
48
4V5-23118-L1-00 Spacer |
4V5-23118-L1-00 |
US $14.51 |
||
|
49
|
49
49A-23340-00-00
Under Bracketcomp
|
49A-23340-00-00 |
— | ||
|
50
|
50
4G0-23346-00-00
Bolt 1
|
4G0-23346-00-00 |
— | ||
| replacement | |||||
|
50
|
50
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
51
|
51
31A-2313A-30-00
Brace, Fork
|
31A-2313A-30-00 |
— | ||
| replacement | |||||
|
51
|
51
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
52
|
52
31A-23181-30-00 Bolt, Hexagon Socket Head |
31A-23181-30-00 |
from US $1.07 |
||
| replacement | |||||
|
52
|
52
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.18 |
||
