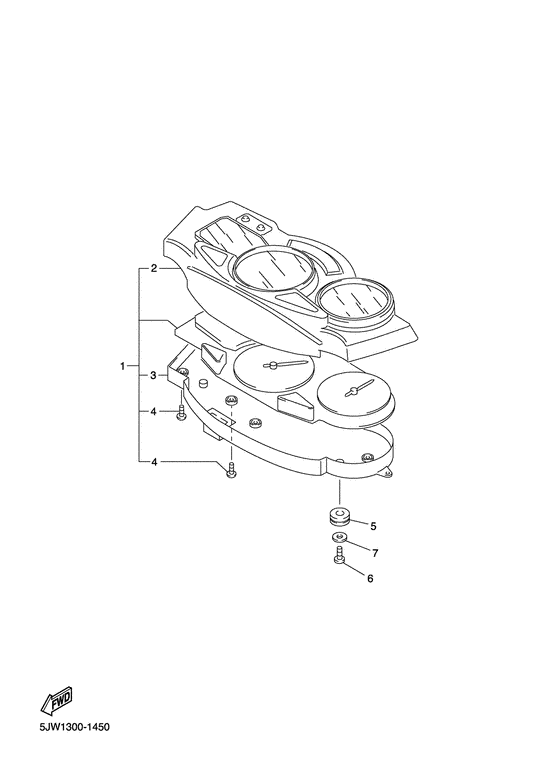

Meter Diagram Yamaha FJR1300
- Year
- 2001
- Model code
- 5JW2
- Sales region
- France (010)
- Engine Capacity
- 1300
- Model
- FJR1300
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5JW-83500-00-00
Speedometer Assy (Km/h)
|
5JW-83500-00-00 |
— | ||
|
02
|
02
5JW-8353E-00-00
Case, Meter Upper
|
5JW-8353E-00-00 |
— | ||
| replacement | |||||
|
02
|
02
5JW-8353E-01-00
Case, Meter Upper
|
5JW-8353E-01-00 |
— | ||
|
03
|
03
5JW-83572-00-00 Case, Speedometer Lower |
5JW-83572-00-00 |
US $31.14 |
||
|
04
|
04
97707-40016-00 Screw, Tapping |
97707-40016-00 |
from US $1.42 |
||
|
05
|
05
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $2.08 |
||
|
06
|
06
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
06
|
06
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
07
|
07
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
