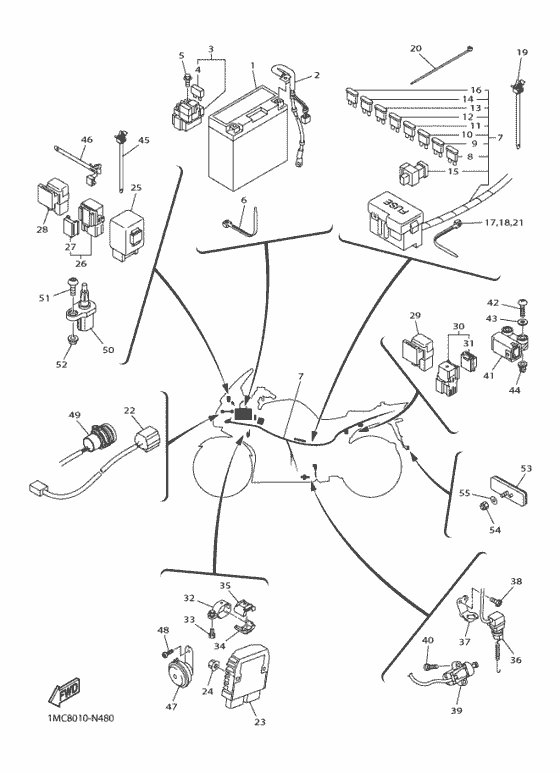

Electrical 2 Diagram Yamaha FJR1300
- Year
- 2015
- Colour
- ﾀﾞ-ｸ ｸﾞﾚ- ﾒﾀﾘﾂｸ N
- Model code
- 1MCP
- Sales region
- Japan (010)
- Engine Capacity
- 1300
- Color Variant
- A
- Model
- FJR1300A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90793-26121-00
Battery Assy(Gs Yuasa Gt14B-4)
|
90793-26121-00 |
— | ||
|
2
|
2
1MC-82116-00-00 Wire, Minus Lead |
1MC-82116-00-00 |
from US $30.04 |
||
|
3
|
3
3D7-81940-00-00 Starter Relay Assy (Rc19-076A) |
3D7-81940-00-00 |
from US $85.47 |
||
|
4
|
4
1AE-82151-00-00 Fuse (30A-Bl) |
1AE-82151-00-00 |
from US $2.02 |
||
|
5
|
5
95022-06008-00 Bolt, Flange |
95022-06008-00 |
from US $1.36 |
||
|
6
|
6
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
| replacement | |||||
|
6
|
6
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
7
|
7
1MC-82590-30-00 Wire Harness Assy |
1MC-82590-30-00 |
US $1,491.60 |
||
|
8
|
8
1MC-82151-00-00 Fuse (1A-Bl) |
1MC-82151-00-00 |
from US $2.13 |
||
|
9
|
9
5JJ-82151-50-00 Fuse (3A) |
5JJ-82151-50-00 |
from US $3.74 |
||
| replacement | |||||
|
9
|
9
67F-82151-30-00 Fuse (3A) |
67F-82151-30-00 |
from US $2.50 |
||
|
10
|
10
5JJ-82151-00-00 Fuse (7.5A-Bl) |
5JJ-82151-00-00 |
from US $3.38 |
||
|
11
|
11
5JJ-82151-30-00
Fuse (10A-Bl)
|
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
11
|
11
67F-82151-40-00 Fuse (10A) |
67F-82151-40-00 |
from US $1.90 |
||
|
12
|
12
5JJ-82151-10-00 Fuse (15A-Bl) |
5JJ-82151-10-00 |
US $3.05 |
||
| replacement | |||||
|
12
|
12
67F-82151-50-00 Fuse (15A) |
67F-82151-50-00 |
from US $1.90 |
||
|
13
|
13
5JJ-82151-20-00 Fuse (20A-Bl) |
5JJ-82151-20-00 |
from US $3.74 |
||
|
14
|
14
5JJ-82151-60-00 Fuse (30A-Bl) |
5JJ-82151-60-00 |
from US $2.83 |
||
|
15
|
15
5JW-82151-10-00 Fuse (50A) |
5JW-82151-10-00 |
from US $10.27 |
||
|
16
|
16
5JJ-82151-70-00 Fuse (25A-Bl) |
5JJ-82151-70-00 |
from US $2.83 |
||
|
17
|
17
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
18
|
18
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
19
|
19
90464-12036-00 Clamp |
90464-12036-00 |
from US $1.39 |
||
| replacement | |||||
|
19
|
19
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.39 |
||
|
20
|
20
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
21
|
21
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
21
|
21
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
22
|
22
1MC-82509-00-00 Wire, Sub Lead |
1MC-82509-00-00 |
from US $11.05 |
||
|
23
|
23
1D7-81960-01-00 Rectifier & Regulator Assy |
1D7-81960-01-00 |
from US $242.47 |
||
|
24
|
24
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.52 |
||
| replacement | |||||
|
24
|
24
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
25
|
25
5VK-81950-30-00
Relay Assy (5Vk-30)
|
5VK-81950-30-00 |
— | ||
| replacements | |||||
|
25
|
25
5VK-81950-31-00 RELAY ASSY |
5VK-81950-31-00 |
from US $69.86 |
||
|
25
|
25
5VK-81950-33-00 RELAY ASSY |
5VK-81950-33-00 |
from US $63.31 |
||
|
26
|
26
1ST-81950-00-00 Relay Assy (1St-00) |
1ST-81950-00-00 |
from US $9.49 |
||
|
27
|
27
5JJ-81952-00-00 Holder, Relay |
5JJ-81952-00-00 |
from US $5.97 |
||
|
28
|
28
5DM-81950-00-00
Relay Assy (G8Hn-1C4T-Dj-Y52)
|
5DM-81950-00-00 |
— | ||
| replacement | |||||
|
28
|
28
5DM-81950-01-00 RELAY ASSY (G8HN-1C4T-DJ-Y52) |
5DM-81950-01-00 |
from US $22.20 |
||
|
29
|
29
5DM-81950-00-00
Relay Assy (G8Hn-1C4T-Dj-Y52)
|
5DM-81950-00-00 |
— | ||
| replacement | |||||
|
29
|
29
5DM-81950-01-00 RELAY ASSY (G8HN-1C4T-DJ-Y52) |
5DM-81950-01-00 |
from US $22.20 |
||
|
30
|
30
1TP-81950-00-00 Relay Assy (1Tp-00) |
1TP-81950-00-00 |
from US $9.49 |
||
|
31
|
31
5EA-81952-00-00 Holder, Relay |
5EA-81952-00-00 |
from US $4.86 |
||
|
32
|
32
5VS-82729-00-00 Bracket, Lock |
5VS-82729-00-00 |
US $6.09 |
||
|
33
|
33
90101-06664-00 Bolt |
90101-06664-00 |
from US $1.21 |
||
| replacement | |||||
|
33
|
33
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
34
|
34
5VS-8258J-00-00 Housing, Connecteur 1 |
5VS-8258J-00-00 |
from US $1.70 |
||
|
35
|
35
5VS-8259J-00-00 Housing, Connecteur 2 |
5VS-8259J-00-00 |
US $1.70 |
||
|
36
|
36
1MC-82530-01-00 Stop Switch Assy |
1MC-82530-01-00 |
from US $50.66 |
||
| replacement | |||||
|
36
|
36
1MC-82530-02-00 Stop Switch Assy |
1MC-82530-02-00 |
from US $50.66 |
||
|
37
|
37
1MC-2144G-00-00 Stay, Stop Switch |
1MC-2144G-00-00 |
from US $3.68 |
||
|
38
|
38
98902-05008-00 Screw, Bind |
98902-05008-00 |
from US $1.63 |
||
|
39
|
39
1MC-82566-00-00 Switch, Side Stand |
1MC-82566-00-00 |
from US $95.05 |
||
| replacements | |||||
|
39
|
39
1MC-82566-01-00 SWITCH, SIDE STAND |
1MC-82566-01-00 |
from US $95.05 |
||
|
39
|
39
1MC-82566-02-00 Switch, Side Stand |
1MC-82566-02-00 |
US $114.64 |
||
|
40
|
40
90157-05008-00 Screw, Pan Head |
90157-05008-00 |
from US $1.07 |
||
| replacement | |||||
|
40
|
40
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
41
|
41
5PS-82576-01-00
Sensor, Lean Angle
|
5PS-82576-01-00 |
— | ||
| replacement | |||||
|
41
|
41
5PS-82576-02-00 Sensor, Lean Angle |
5PS-82576-02-00 |
from US $93.26 |
||
|
42
|
42
97702-40025-00 Screw, Tapping |
97702-40025-00 |
from US $0.32 |
||
|
43
|
43
90201-04030-00 Washer, Plate |
90201-04030-00 |
from US $1.70 |
||
|
44
|
44
4B4-84334-00-00 Nut, Adjusting |
4B4-84334-00-00 |
from US $1.42 |
||
|
45
|
45
90464-12036-00 Clamp |
90464-12036-00 |
from US $1.39 |
||
| replacement | |||||
|
45
|
45
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.39 |
||
|
46
|
46
90464-20213-00 Clamp |
90464-20213-00 |
from US $1.81 |
||
|
47
|
47
1MC-83371-00-00 Horn |
1MC-83371-00-00 |
from US $45.04 |
||
|
48
|
48
92012-06010-00 Bolt, Button Head |
92012-06010-00 |
from US $1.66 |
||
|
49
|
49
3P6-8254B-00-00 Terminal Comp |
3P6-8254B-00-00 |
from US $65.07 |
||
|
50
|
50
5YU-85886-00-00 Sensor, Air Temperature |
5YU-85886-00-00 |
from US $29.27 |
||
|
51
|
51
920-12050-14-00 Bolt, Button Head |
920-12050-14-00 |
from US $1.52 |
||
|
52
|
52
95702-05500-00 Nut, With Washer |
95702-05500-00 |
from US $0.50 |
||
| replacement | |||||
|
52
|
52
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
53
|
53
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $11.12 |
||
|
54
|
54
95602-05100-00 Nut, U |
95602-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
54
|
54
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
55
|
55
90201-05043-00 Washer, Plate |
90201-05043-00 |
from US $1.70 |
||
