Fender Diagram Yamaha FJR1300
- Year
- 2015
- Colour
- ﾀﾞ-ｸ ｸﾞﾚ- ﾒﾀﾘﾂｸ N
- Model code
- 1MCP
- Sales region
- Japan (010)
- Engine Capacity
- 1300
- Color Variant
- A
- Model
- FJR1300A
Difficulties in parts search?
Difficulties in parts search?

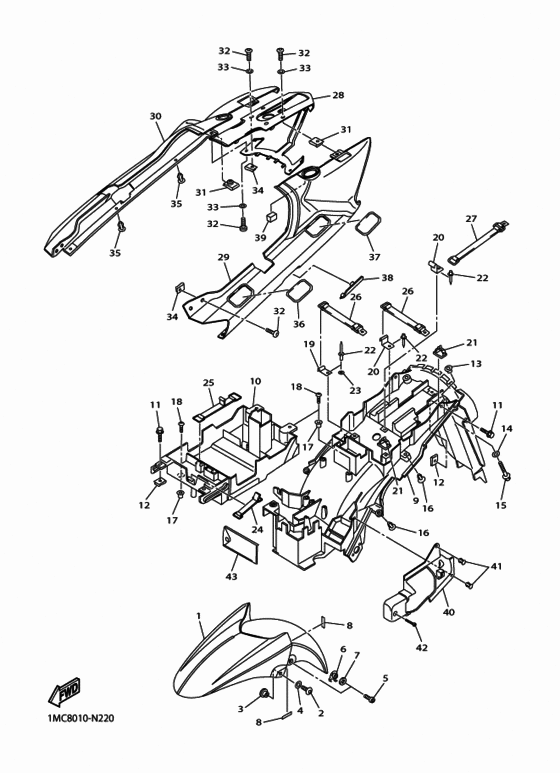

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3P6-21511-00-PD Fender, FrontDNMN |
3P6-21511-00-PD |
from US $131.39 |
||
| replacement | |||||
|
1
|
1
3P6-21511-01-PD DNMN |
3P6-21511-01-PD |
US $135.68 |
||
|
2
|
2
901-10062-00-00 Bolt, Hexagon Socket Head |
901-10062-00-00 |
from US $1.81 |
||
|
3
|
3
903-87070-06-00 Collar |
903-87070-06-00 |
from US $5.81 |
||
|
4
|
4
90202-06170-00 Washer, Plate |
90202-06170-00 |
from US $2.66 |
||
|
5
|
5
92012-06020-00 Bolt, Button Head |
92012-06020-00 |
from US $1.66 |
||
|
6
|
6
3P6-21535-10-00 Nut 1 |
3P6-21535-10-00 |
from US $12.61 |
||
| replacement | |||||
|
6
|
6
3P6-21535-11-00 Nut 1 |
3P6-21535-11-00 |
from US $12.61 |
||
|
7
|
7
3P6-21541-00-00 Damper 1 |
3P6-21541-00-00 |
from US $1.56 |
||
|
8
|
8
5DM-28371-00-00 Damper |
5DM-28371-00-00 |
from US $1.84 |
||
|
9
|
9
3P6-21611-20-00 Fender, Rear |
3P6-21611-20-00 |
US $84.55 |
||
|
10
|
10
3P6-2160E-00-00 Box |
3P6-2160E-00-00 |
from US $18.99 |
||
|
11
|
11
90119-06159-00 Bolt, With Washer |
90119-06159-00 |
from US $1.70 |
||
|
12
|
12
90183-060A7-00 Nut, Spring |
90183-060A7-00 |
from US $2.55 |
||
|
13
|
13
903-87062-31-00 Collar |
903-87062-31-00 |
from US $3.68 |
||
|
14
|
14
90201-07081-00 Washer, Plate |
90201-07081-00 |
from US $1.28 |
||
|
15
|
15
95802-06040-00 Bolt, Flange |
95802-06040-00 |
from US $1.21 |
||
| replacement | |||||
|
15
|
15
95817-06040-00 Bolt, Flange |
95817-06040-00 |
from US $1.21 |
||
|
16
|
16
902-69060-81-00 Rivet |
902-69060-81-00 |
from US $1.81 |
||
|
17
|
17
90338-08226-00 Plug |
90338-08226-00 |
from US $1.70 |
||
|
18
|
18
97702-60016-00 Screw, Tapping |
97702-60016-00 |
from US $1.56 |
||
|
19
|
19
5PS-2162A-00-00 Hook |
5PS-2162A-00-00 |
from US $2.55 |
||
|
20
|
20
4HM-2162A-00-00 Hook |
4HM-2162A-00-00 |
from US $5.24 |
||
|
21
|
21
90464-13185-00 Clamp |
90464-13185-00 |
from US $4.39 |
||
|
22
|
22
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
23
|
23
92902-04200-00 Washer |
92902-04200-00 |
from US $1.21 |
||
| replacement | |||||
|
23
|
23
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
24
|
24
36X-2811G-00-00 Band |
36X-2811G-00-00 |
from US $7.45 |
||
|
25
|
25
4J2-82131-01-00 Band, Battery |
4J2-82131-01-00 |
from US $13.74 |
||
|
26
|
26
5JW-21647-01-00 Band |
5JW-21647-01-00 |
from US $10.34 |
||
|
27
|
27
3P6-21647-00-00 Band |
3P6-21647-00-00 |
from US $5.81 |
||
|
28
|
28
3P6-21651-00-P9 Cover, Rear FenderDNMN |
3P6-21651-00-P9 |
from US $82.76 |
||
|
29
|
29
3P6-2471K-00-P9 Cover, Tail 1DNMN |
3P6-2471K-00-P9 |
from US $131.39 |
||
|
30
|
30
3P6-2472K-00-P9 Cover, Tail 2DNMN |
3P6-2472K-00-P9 |
from US $131.39 |
||
|
31
|
31
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.66 |
||
|
32
|
32
901-11050-44-00 Bolt, Hex. Socket Button |
901-11050-44-00 |
from US $1.42 |
||
|
33
|
33
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.81 |
||
|
34
|
34
90183-050A0-00 Nut, Spring |
90183-050A0-00 |
from US $2.91 |
||
|
35
|
35
902-69060-81-00 Rivet |
902-69060-81-00 |
from US $1.81 |
||
|
36
|
36
3P6-2163E-01-P8 Cover, Rear Fender 2DNMN |
3P6-2163E-01-P8 |
from US $23.24 |
||
|
37
|
37
3P6-2163E-11-P8 Cover, Rear Fender 2DNMN |
3P6-2163E-11-P8 |
from US $26.35 |
||
|
38
|
38
3P6-2163F-01-P8 Cover, Rear Fender 3DNMN |
3P6-2163F-01-P8 |
from US $25.36 |
||
|
39
|
39
3P6-21649-00-00 Damper |
3P6-21649-00-00 |
from US $1.42 |
||
|
40
|
40
1MC-2163A-00-00 Cover, Rear Fender 1 |
1MC-2163A-00-00 |
from US $9.92 |
||
|
41
|
41
902-69060-81-00 Rivet |
902-69060-81-00 |
from US $1.81 |
||
|
42
|
42
97702-50125-00 Screw, Tapping |
97702-50125-00 |
from US $2.12 |
||
| replacement | |||||
|
42
|
42
97780-50125-00 Screw, Tapping |
97780-50125-00 |
from US $2.55 |
||
|
43
|
43
1MC-28100-00-00 Tool Kit |
1MC-28100-00-00 |
from US $60.79 |
||
