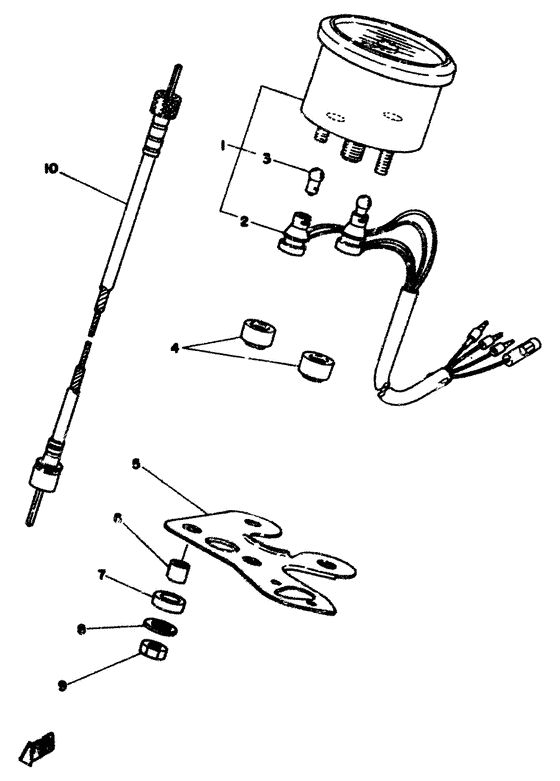

Speedometer Diagram Yamaha FS1
- Year
- 1977
- Model code
- 2G0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- FS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
582-83510-30-00
Speedometer Assy
|
582-83510-30-00 |
— | ||
| replacement | |||||
|
1
|
1
3F6-83510-G0-00
Speedometer Assy
|
3F6-83510-G0-00 |
— | ||
|
2
|
2
552-83520-00-00
Socket Cord Assy
|
552-83520-00-00 |
— | ||
|
3
|
3
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S |
122-83516-10-00 |
US $3.54 |
||
| replacement | |||||
|
3
|
3
122-83516-10-XX
Bulb
|
122-83516-10-XX |
— | ||
|
4
|
4
1M3-83513-00-00
Damper
|
1M3-83513-00-00 |
— | ||
|
5
|
5
1U0-83519-00-98
Bracket, Meter
|
1U0-83519-00-98 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
355-83522-00-00 Collar |
355-83522-00-00 |
US $9.79 |
||
|
7
|
7
355-83526-00-00 Damper 2 |
355-83526-00-00 |
from US $2.98 |
||
|
8
|
8
355-83524-00-00 Washer, Special |
355-83524-00-00 |
from US $2.13 |
||
| replacement | |||||
|
8
|
8
90201-06412-00 Washer, Plate |
90201-06412-00 |
from US $2.13 |
||
|
9
|
9
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
9
|
9
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
10
|
10
260-83550-00-00 Speedometer Cable Assy |
260-83550-00-00 |
US $28.90 |
||
| replacement | |||||
|
10
|
10
241-83550-03-00 Speedometer Cable Assy |
241-83550-03-00 |
from US $18.04 |
||
|
10
|
10
481-83550-00-00 Speedometer Cable Assy |
481-83550-00-00 |
US $30.46 |
||
| replacement | |||||
|
10
|
10
3VP-83550-02-00 Speedometer Cable Assy |
3VP-83550-02-00 |
from US $30.46 |
||
