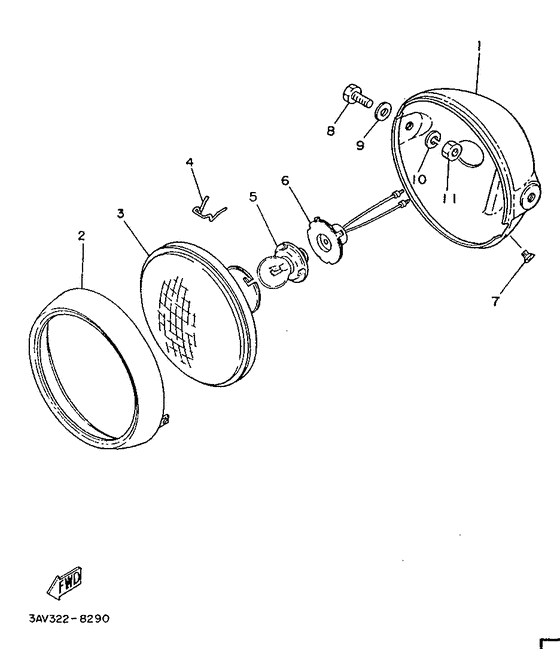

Headlight Diagram Yamaha FS1
- Year
- 1988
- Colour
- French Blue (FBL; 00G3)
- Model code
- 3AV
- Sales region
- Sweden (999)
- Engine Capacity
- 50
- Model
- FS1
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
354-84111-00-33
Body, Headlight
Yamaha black |
354-84111-00-33 |
— | ||
|
02
|
02
195-84315-01-00 Rim,head lamp |
195-84315-01-00 |
US $80.27 |
||
|
03
|
03
468-84120-40-00
Lens Assy
|
468-84120-40-00 |
— | ||
|
04
|
04
195-84324-00-00 Spring, Reflector |
195-84324-00-00 |
from US $3.40 |
||
|
06
|
06
468-84112-40-00
Socket
|
468-84112-40-00 |
— | ||
|
07
|
07
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
|
08
|
08
97001-08020-00 Bolt |
97001-08020-00 |
from US $2.13 |
||
| replacement | |||||
|
08
|
08
97017-08020-00 Bolt |
97017-08020-00 |
from US $2.02 |
||
|
09
|
09
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
09
|
09
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
10
|
10
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
11
|
11
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
