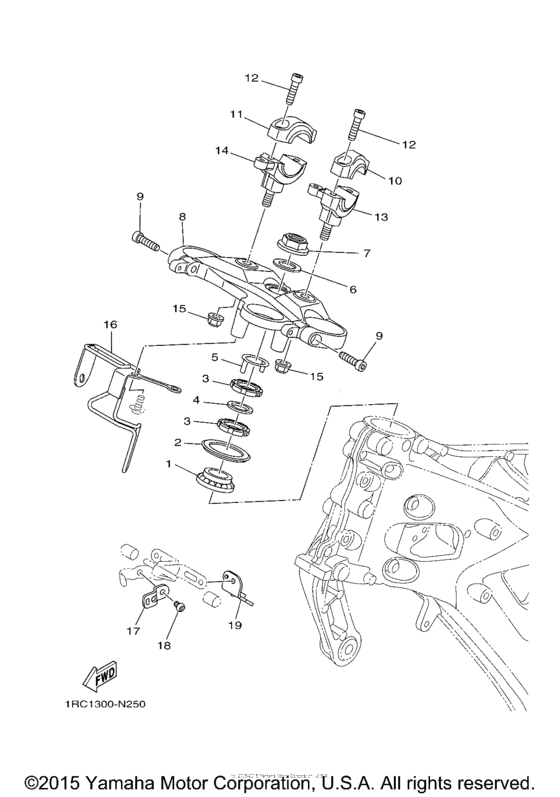

Steering Diagram Yamaha FZ09 FZ-09
- Year
- 2015
- Model code
- 1RCT
- Sales region
- USA
- Базовая модель
- FZ09FS
- Engine Capacity
- 850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93399-99931-00 Bearing |
93399-99931-00 |
from US $32.60 |
||
|
2
|
2
5VX-23415-00-00 Cover, Ball Race 1 |
5VX-23415-00-00 |
from US $12.21 |
||
|
3
|
3
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
4
|
4
90202-26142-00 Washer, Plate |
90202-26142-00 |
from US $2.08 |
||
|
5
|
5
26H-23418-01-00 Washer, Special |
26H-23418-01-00 |
from US $7.77 |
||
|
6
|
6
90201-22018-00 Washer, Plate |
90201-22018-00 |
from US $4.86 |
||
|
7
|
7
1RC-23393-00-00 Nut, Special |
1RC-23393-00-00 |
from US $27.88 |
||
|
8
|
8
1RC-23435-10-00 Crown, Handle (Black) |
1RC-23435-10-00 |
from US $150.59 |
||
|
9
|
9
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.18 |
||
|
10
|
10
1RC-23441-11-00 Holder, Handle Upper |
1RC-23441-11-00 |
from US $28.71 |
||
|
11
|
11
1RC-2344A-11-00 Holder, Handle Upper 1 |
1RC-2344A-11-00 |
from US $28.71 |
||
|
12
|
12
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.18 |
||
|
13
|
13
1RC-24847-11-00 Holder 1 |
1RC-24847-11-00 |
from US $36.34 |
||
| replacement | |||||
|
13
|
13
1RC-24847-12-00 HOLDER 1 |
1RC-24847-12-00 |
from US $40.50 |
||
|
14
|
14
1RC-24848-11-00 Holder 2FOR MS1, RYC1 |
1RC-24848-11-00 |
from US $40.50 |
||
| replacement | |||||
|
14
|
14
1RC-24848-12-00 HOLDER 2FOR MS1, RYC1 |
1RC-24848-12-00 |
from US $40.50 |
||
|
15
|
15
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.66 |
||
|
16
|
16
1RC-23389-00-00 Guide, Cable |
1RC-23389-00-00 |
from US $35.51 |
||
|
17
|
17
5SL-25876-00-00 Holder, Brake Hose 2 |
5SL-25876-00-00 |
from US $3.74 |
||
|
18
|
18
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.52 |
||
|
19
|
19
1RC-23377-00-00 Bracket, Horn |
1RC-23377-00-00 |
from US $5.28 |
||
