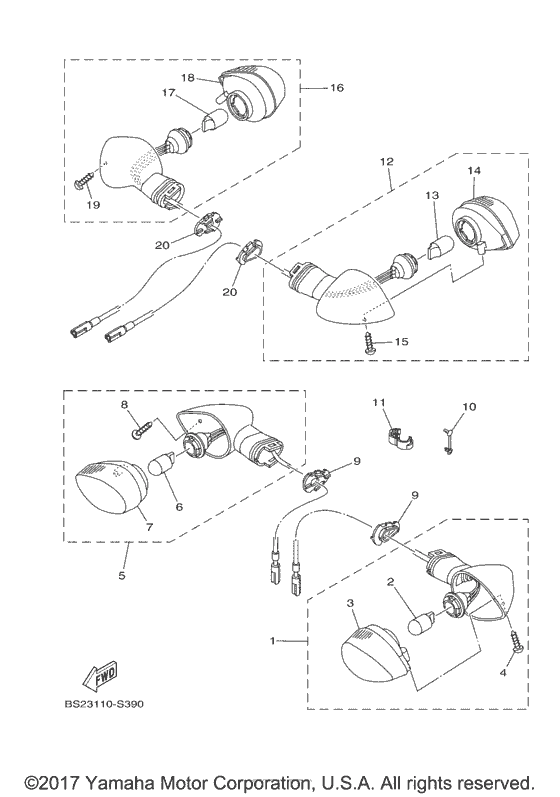

Flasher light Diagram Yamaha FZ09 FZ-09
- Year
- 2017
- Model code
- BS23
- Sales region
- USA
- Базовая модель
- FZ09HW
- Engine Capacity
- 850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BS2-83310-10-00 FRONT FLASHER LIGHT |
BS2-83310-10-00 |
from US $75.01 |
||
| replacement | |||||
|
1
|
1
BS2-83310-11-00 |
BS2-83310-11-00 |
US $83 |
||
|
2
|
2
5GJ-83331-00-00 Bulb, Flasher (12V-21/5 |
5GJ-83331-00-00 |
from US $5.67 |
||
|
3
|
3
5PW-8334A-10-00 Lens Comp |
5PW-8334A-10-00 |
from US $21.96 |
||
|
4
|
4
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
5
|
5
BS2-83320-10-00 FRONT FLASHER LIGHT |
BS2-83320-10-00 |
from US $74.65 |
||
| replacement | |||||
|
5
|
5
BS2-83320-11-00 |
BS2-83320-11-00 |
US $83 |
||
|
6
|
6
5GJ-83331-00-00 Bulb, Flasher (12V-21/5 |
5GJ-83331-00-00 |
from US $5.67 |
||
|
7
|
7
5PW-8333A-10-00 Lens Comp |
5PW-8333A-10-00 |
from US $21.96 |
||
|
8
|
8
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
9
|
9
32C-83318-00-00 Stay, Flasher 1 |
32C-83318-00-00 |
from US $2.69 |
||
|
10
|
10
904-64050-03-00 Clamp |
904-64050-03-00 |
from US $1.52 |
||
|
11
|
11
90464-13227-00 Clamp |
90464-13227-00 |
from US $1.81 |
||
|
12
|
12
BS2-83330-10-00 REAR FLASHER LIGHT A |
BS2-83330-10-00 |
from US $58.99 |
||
| replacement | |||||
|
12
|
12
BS2-83330-11-00 |
BS2-83330-11-00 |
US $68.72 |
||
|
13
|
13
5PW-83331-00-00 Bulb (12V-21/5W T20) |
5PW-83331-00-00 |
from US $4.96 |
||
|
14
|
14
5PW-8333A-10-00 Lens Comp |
5PW-8333A-10-00 |
from US $21.96 |
||
|
15
|
15
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
16
|
16
BS2-83340-10-00 REAR FLASHER LIGHT A |
BS2-83340-10-00 |
from US $57.22 |
||
| replacement | |||||
|
16
|
16
BS2-83340-11-00 |
BS2-83340-11-00 |
US $68.72 |
||
|
17
|
17
5PW-83331-00-00 Bulb (12V-21/5W T20) |
5PW-83331-00-00 |
from US $4.96 |
||
|
18
|
18
5PW-8334A-10-00 Lens Comp |
5PW-8334A-10-00 |
from US $21.96 |
||
|
19
|
19
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
20
|
20
32C-83318-00-00 Stay, Flasher 1 |
32C-83318-00-00 |
from US $2.69 |
||
