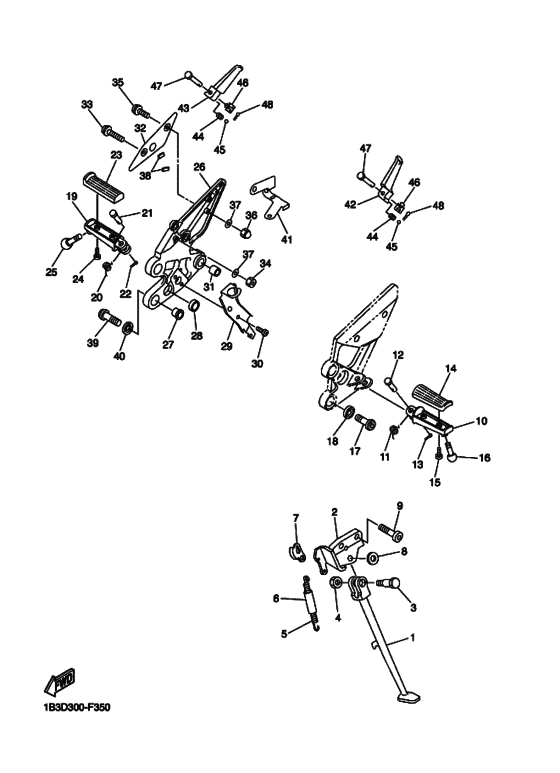

Stand & Footrest Diagram Yamaha FZ6 FZ6 (Naked)
- Year
- 2007
- Colour
- Bluish Silver 4 (BS4; 0820)
- Model code
- 1B3D
- Sales region
- Europe (060)
- Engine Capacity
- 600
- Color Variant
- B
- Model
- FZ6-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VX-27311-01-00 Stand, Side |
5VX-27311-01-00 |
from US $46.15 |
||
|
2
|
2
5VX-27321-02-00 Bracket, Side Stand |
5VX-27321-02-00 |
from US $73.22 |
||
|
3
|
3
90109-10011-00 Bolt |
90109-10011-00 |
from US $4.82 |
||
| replacement | |||||
|
3
|
3
901-09100-12-00 Bolt |
901-09100-12-00 |
from US $3.67 |
||
|
4
|
4
90185-10037-00 Nut, Self-Locking |
90185-10037-00 |
from US $4.16 |
||
|
5
|
5
90506-23007-00 Spring, Tension |
90506-23007-00 |
from US $12.04 |
||
|
6
|
6
5VX-27351-00-00 Guide, Side Stand |
5VX-27351-00-00 |
from US $2.69 |
||
|
7
|
7
5VX-27315-00-00 Link, Side Stand |
5VX-27315-00-00 |
from US $1.70 |
||
|
8
|
8
90201-12021-00 Washer, Plate |
90201-12021-00 |
from US $2.69 |
||
|
9
|
9
90110-10010-00 Bolt |
90110-10010-00 |
from US $4.25 |
||
| replacement | |||||
|
9
|
9
91317-10030-00 Bolt, Socket |
91317-10030-00 |
from US $4.25 |
||
|
10
|
10
4BH-27451-01-00 Footrest |
4BH-27451-01-00 |
from US $57.16 |
||
|
11
|
11
90508-20572-00 Spring, Torsion |
90508-20572-00 |
from US $3.33 |
||
|
12
|
12
917-01080-40-00
Pin
|
917-01080-40-00 |
— | ||
| replacement | |||||
|
12
|
12
917-02080-40-00 Pin, Clevis |
917-02080-40-00 |
from US $3.20 |
||
|
13
|
13
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
13
|
13
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
14
|
14
3YX-27413-00-00 Cover, Footrest |
3YX-27413-00-00 |
from US $14.48 |
||
|
15
|
15
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
15
|
15
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.42 |
||
|
16
|
16
90109-08174-00 Bolt |
90109-08174-00 |
from US $3.74 |
||
| replacement | |||||
|
16
|
16
90109-08177-00 Bolt |
90109-08177-00 |
from US $3.74 |
||
|
17
|
17
90110-08220-00 Bolt, Hexagon Socket Head |
90110-08220-00 |
from US $1.84 |
||
|
18
|
18
90209-08295-00 Washer |
90209-08295-00 |
from US $7.63 |
||
|
19
|
19
4BH-27461-01-00 Footrest |
4BH-27461-01-00 |
from US $57.16 |
||
|
20
|
20
90508-20572-00 Spring, Torsion |
90508-20572-00 |
from US $3.33 |
||
|
21
|
21
917-01080-40-00
Pin
|
917-01080-40-00 |
— | ||
| replacement | |||||
|
21
|
21
917-02080-40-00 Pin, Clevis |
917-02080-40-00 |
from US $3.20 |
||
|
22
|
22
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
22
|
22
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
23
|
23
3YX-27413-00-00 Cover, Footrest |
3YX-27413-00-00 |
from US $14.48 |
||
|
24
|
24
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
24
|
24
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.42 |
||
|
25
|
25
90109-08174-00 Bolt |
90109-08174-00 |
from US $3.74 |
||
| replacement | |||||
|
25
|
25
90109-08177-00 Bolt |
90109-08177-00 |
from US $3.74 |
||
|
26
|
26
5VX-27443-10-00 Bracket 3 |
5VX-27443-10-00 |
from US $81.65 |
||
|
27
|
27
5VX-27424-00-00 Damper, Footrest 2 |
5VX-27424-00-00 |
from US $8.74 |
||
|
28
|
28
5VX-27114-00-00 Stopper, Main Stand |
5VX-27114-00-00 |
from US $1.70 |
||
|
29
|
29
5VX-2144G-00-00 Stay, Stop Switch |
5VX-2144G-00-00 |
from US $6.61 |
||
|
30
|
30
98507-06008-00 Screw |
98507-06008-00 |
from US $2.41 |
||
| replacement | |||||
|
30
|
30
98517-06008-00 Screw |
98517-06008-00 |
from US $1.70 |
||
|
31
|
31
90383-14001-00 Bush, Formed |
90383-14001-00 |
from US $10.06 |
||
|
32
|
32
4S8-27446-00-00 Plate 2 |
4S8-27446-00-00 |
from US $19.55 |
||
|
33
|
33
92014-05012-00 Bolt, Button Head |
92014-05012-00 |
from US $1.66 |
||
|
34
|
34
95607-05100-00 Nut, U |
95607-05100-00 |
from US $2.22 |
||
| replacement | |||||
|
34
|
34
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
35
|
35
92014-05014-00 Bolt, Button Head |
92014-05014-00 |
from US $1.66 |
||
|
36
|
36
90176-05001-00 Nut, Crown |
90176-05001-00 |
from US $2.13 |
||
|
37
|
37
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
38
|
38
4S8-27415-00-00 Plate, Footrest |
4S8-27415-00-00 |
from US $1.31 |
||
|
39
|
39
90110-08220-00 Bolt, Hexagon Socket Head |
90110-08220-00 |
from US $1.84 |
||
|
40
|
40
90209-08295-00 Washer |
90209-08295-00 |
from US $7.63 |
||
|
41
|
41
5VX-2587A-00-00 Holder, Brake Hose |
5VX-2587A-00-00 |
from US $7.51 |
||
|
42
|
42
3VR-27431-01-00 Footrest, Rear 1 |
3VR-27431-01-00 |
from US $26.92 |
||
| replacement | |||||
|
42
|
42
3VR-27431-02-00 Footrest, Rear 1 |
3VR-27431-02-00 |
from US $17.18 |
||
|
43
|
43
3VR-27441-01-00 Footrest, Rear 2 |
3VR-27441-01-00 |
from US $26.92 |
||
| replacement | |||||
|
43
|
43
3VR-27441-02-00 Footrest, Rear 2 |
3VR-27441-02-00 |
from US $29.96 |
||
|
44
|
44
90501-12743-00 Spring, Compression |
90501-12743-00 |
from US $1.94 |
||
|
45
|
45
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
46
|
46
5VX-27437-00-00 Washer, Special |
5VX-27437-00-00 |
from US $2.08 |
||
|
47
|
47
90240-08063-00 Pin, Clevis |
90240-08063-00 |
from US $4.96 |
||
|
48
|
48
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
48
|
48
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
