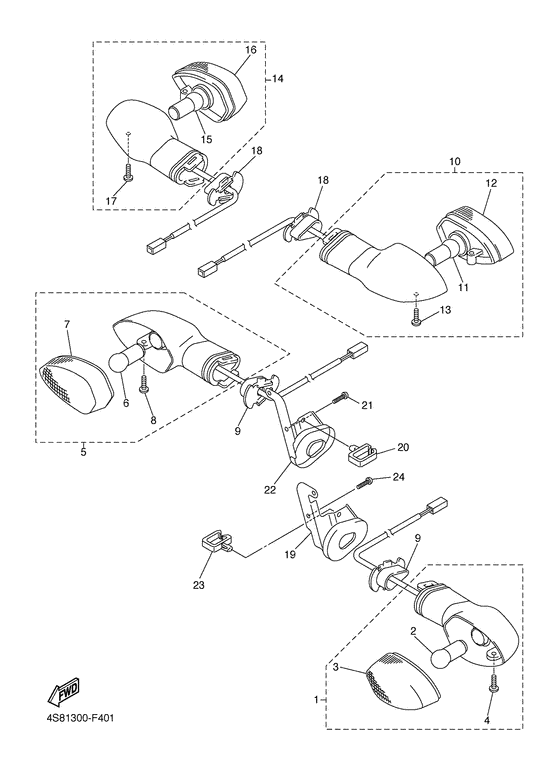

Flasher light Diagram Yamaha FZ6 FZ6 FAZER S2
- Year
- 2009
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 4S8C
- Sales region
- Australia (010)
- Engine Capacity
- 600
- Model
- FZ6-SHG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5PW-83310-01-00 Front Flasher Light Assy 1 |
5PW-83310-01-00 |
from US $60.57 |
||
|
02
|
02
1KH-83311-00-00
Bulb, Flasher
|
1KH-83311-00-00 |
— | ||
| replacements | |||||
|
02
|
02
3NS-83331-00-00 Bulb |
3NS-83331-00-00 |
from US $4.82 |
||
|
02
|
02
NDH-H3311-00-01 Bulb |
NDH-H3311-00-01 |
US $8.91 |
||
|
03
|
03
5PW-8333A-00-00 Lens Comp 1 |
5PW-8333A-00-00 |
US $24.09 |
||
|
04
|
04
977-06040-12-00
Screw, Tapping
|
977-06040-12-00 |
— | ||
| replacement | |||||
|
04
|
04
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
05
|
05
5PW-83320-01-00 Front Flasher Light Assy 2 |
5PW-83320-01-00 |
from US $75.11 |
||
|
06
|
06
1KH-83311-00-00
Bulb, Flasher
|
1KH-83311-00-00 |
— | ||
| replacements | |||||
|
06
|
06
3NS-83331-00-00 Bulb |
3NS-83331-00-00 |
from US $4.82 |
||
|
06
|
06
NDH-H3311-00-01 Bulb |
NDH-H3311-00-01 |
US $8.91 |
||
|
07
|
07
5PW-8334A-00-00 Lens Comp 2 |
5PW-8334A-00-00 |
US $24.09 |
||
|
08
|
08
977-06040-12-00
Screw, Tapping
|
977-06040-12-00 |
— | ||
| replacement | |||||
|
08
|
08
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
09
|
09
5PW-83318-00-00 Stay, Flasher 1 |
5PW-83318-00-00 |
from US $3.12 |
||
|
10
|
10
5VX-83330-00-00 Rear Flasher Light Assy 1 |
5VX-83330-00-00 |
US $78.75 |
||
|
11
|
11
1KH-83311-00-00
Bulb, Flasher
|
1KH-83311-00-00 |
— | ||
| replacements | |||||
|
11
|
11
3NS-83331-00-00 Bulb |
3NS-83331-00-00 |
from US $4.82 |
||
|
11
|
11
NDH-H3311-00-01 Bulb |
NDH-H3311-00-01 |
US $8.91 |
||
|
12
|
12
5PW-8334A-00-00 Lens Comp 2 |
5PW-8334A-00-00 |
US $24.09 |
||
|
13
|
13
977-06040-12-00
Screw, Tapping
|
977-06040-12-00 |
— | ||
| replacement | |||||
|
13
|
13
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
14
|
14
5VX-83340-00-00 Rear Flasher Light Assy 2 |
5VX-83340-00-00 |
US $78.75 |
||
|
15
|
15
1KH-83311-00-00
Bulb, Flasher
|
1KH-83311-00-00 |
— | ||
| replacements | |||||
|
15
|
15
3NS-83331-00-00 Bulb |
3NS-83331-00-00 |
from US $4.82 |
||
|
15
|
15
NDH-H3311-00-01 Bulb |
NDH-H3311-00-01 |
US $8.91 |
||
|
16
|
16
5PW-8333A-00-00 Lens Comp 1 |
5PW-8333A-00-00 |
US $24.09 |
||
|
17
|
17
977-06040-12-00
Screw, Tapping
|
977-06040-12-00 |
— | ||
| replacement | |||||
|
17
|
17
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
18
|
18
5PW-83318-00-00 Stay, Flasher 1 |
5PW-83318-00-00 |
from US $3.12 |
||
|
19
|
19
4S8-2831U-00-00 Stay, Side 1 |
4S8-2831U-00-00 |
from US $21.39 |
||
|
20
|
20
90464-06005-00 Clamp |
90464-06005-00 |
from US $1.42 |
||
|
21
|
21
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
21
|
21
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
22
|
22
4S8-2832U-00-00 Stay, Side 2Stay, side 2 |
4S8-2832U-00-00 |
from US $21.39 |
||
|
23
|
23
90464-06005-00 Clamp |
90464-06005-00 |
from US $1.42 |
||
|
24
|
24
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
24
|
24
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
